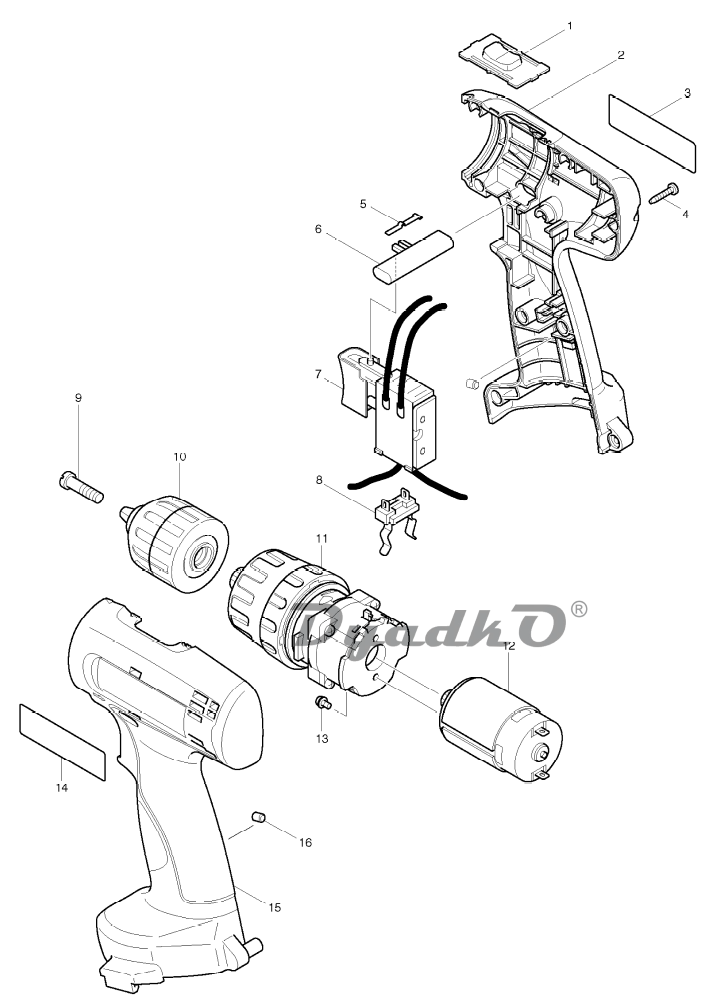

Схема MAKITA 8280 D
1
SPEED CHANGE LEVER ASS\'Y
2
_________________
2
_________________
3
_________________
4
TAPPING SCREW BIND PT 3X16
5
LEAF SPRING
6
F/R CHANGE LEVER
7
SWITCH C3NA-1-M1
8
BATTERY HOLDER
9
- FLAT HEAD SCREW M6X22
10
KEYLESS DRILL CHUCK 10
11
GEAR ASS\'Y
12
DC MOTOR
13
PAN HEAD SCREW M3X6
14
MAKITA LABEL
15
_______________
16
RUBBER PIN 4
A01
BATTERY COVER
A02
DC1414 BATTERY CHARGER
A03
Capacity battery 1422 set
BATTERY PA14 SET
A04
BIT 2-65
A05
Plastic carryng case
Plastic carryng case
A06
HOOK PLATE
A07
STRAP G0970200500
A08
ML140 RECHARGEABLE FLASHLIGHT
