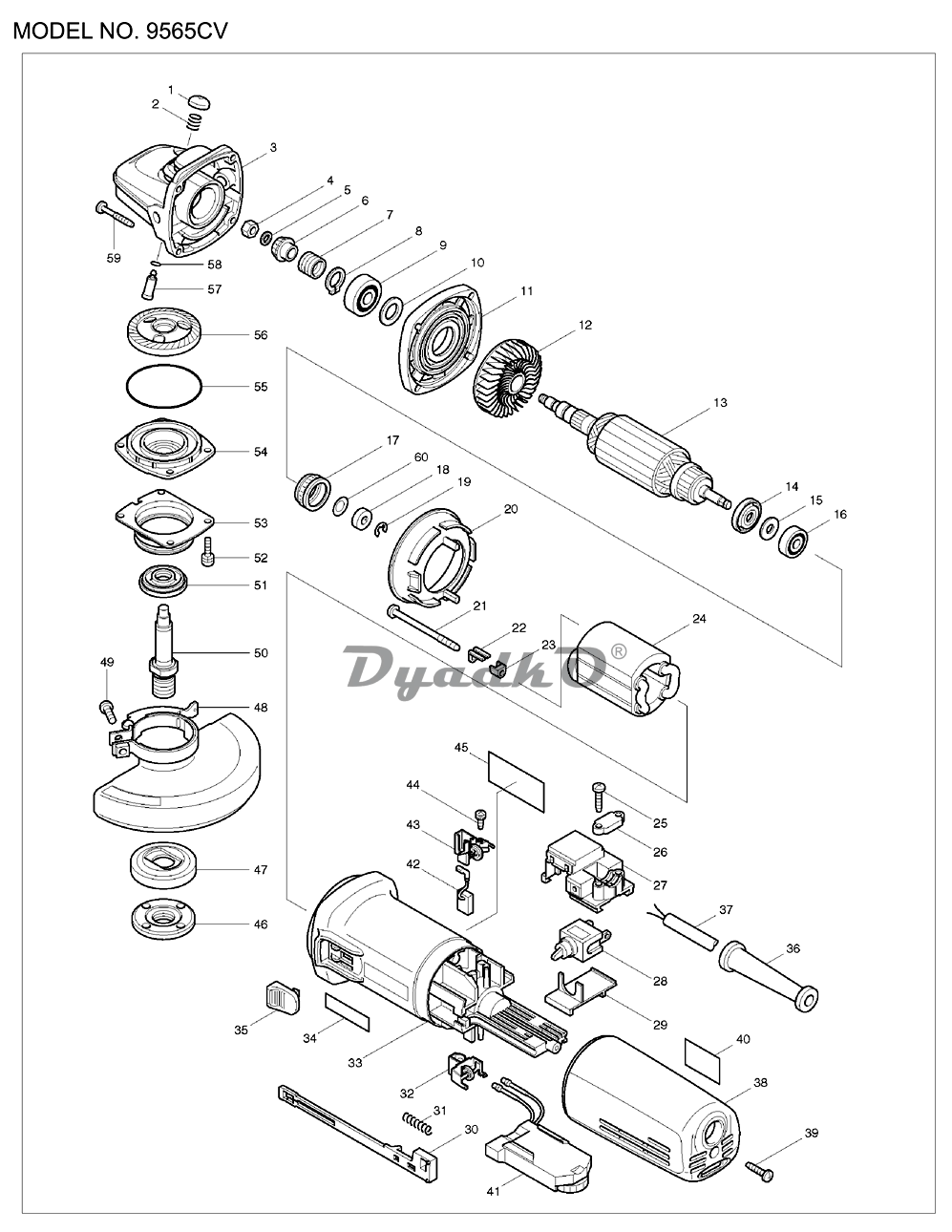

Схема MAKITA 9565 CV

1 PIN CAP (new)
1 PIN CAP (old)
2 COMPRESSION SPRING 8
3 GEAR HOUSING COMPLETE (new)
3 GEAR HOUSING COMPLETE (old)
4 HEX. NUT M6
5 FLAT WASHER 6
6 SPIRAL BEVEL GEAR 11
7 LOCK SPRING 12
8 RETAINING RING S-12
9 BALL BEARING 6001LLB
10 FLAT WASHER 12
11 GEAR HOUSING COVER
12 FAN 57
13 ARMATURE ASS\'Y 220-240V INC. 12,14-16
14 INSULATION WASHER
15 FLAT WASHER 7
16 BALL BEARING 627DDW
17 LABYRINTH RUBBER RING 22
18 MAGNET SLEEVE
19 SELF LOCK 6
20 BAFFLE PLATE
21 TAPPING SCREW 4X70
22 RETAINER
23 INSULATION COVER
24 FIELD 220-240V
25 TAPPING SCREW 4X18
26 STRAIN RELIEF (new)
26 STRAIN RELIEF (old)
27 SWITCH BLOCK
28 SWITCH ST115A-40
29 COVER
30 SWITCH LEVER
31 COMPRESSION SPRING 4
32 BRUSH HOLDER
33 MOTOR HOUSING (new)
33 MOTOR HOUSING (old)
34 MAKITA LABEL
35 SWITCH KNOB
36 CORD GUARD 8
37 POWER SUPPLY CORD 1.0-2-2.5 (new)
37 POWER SUPPLY CORD 1.0-2-2.5 (old)
38 REAR COVER
39 TAPPING SCREW 4X18
40 OPERATIONAL INDICATION LABEL (new)
40 OPERATIONAL INDICATION LABEL (old)
41 CONTROLLER
42 A.C. CARBON BRUSH CB-318
43 BRUSH HOLDER
44 TAPPING SCREW PT3X10
45 NAME PLATE 9565CV
46 LOCK NUT 14-45
47 INNER FLANGE 42 (new)
47 INNER FLANGE 42 (old)
48 TOOLLESS WHEELCOVER 125AK ASSY (new)
48 TOOLLESS WHEEL COVER 125K ASSY (old)
49 PAN HEAD SCREW M5X16 (new)
49 PAN HEAD SCREW M5X16 (old)
50 SPINDLE
51 LABYRINTH RING
52 HEX. SOCKET HEAD BOLT M4X16
54 BEARING BOX (new)
54 BEARING BOX (old)
55 O RING 52
56 SPIRAL BEVEL GEAR 38
57 PIN
58 O RING 6
59 TAPPING SCREW 4X28
60 WAVE WASHER 6
63 BEARING RETAINER
64 BALL BEARING 6201DDW
65 CLEAR LABEL
A01 GRIP 36 COMPLETE (new)
A01 GRIP 36 COMPLETE (old)
A02 GRINDING WHEEL 125X6 A24R
A03 LOCK NUT WRENCH 35 (new)
A03 LOCK NUT WRENCH 35 (old)
A04 STEEL CASE
A05 COLOR LABEL
A06 TRAY
