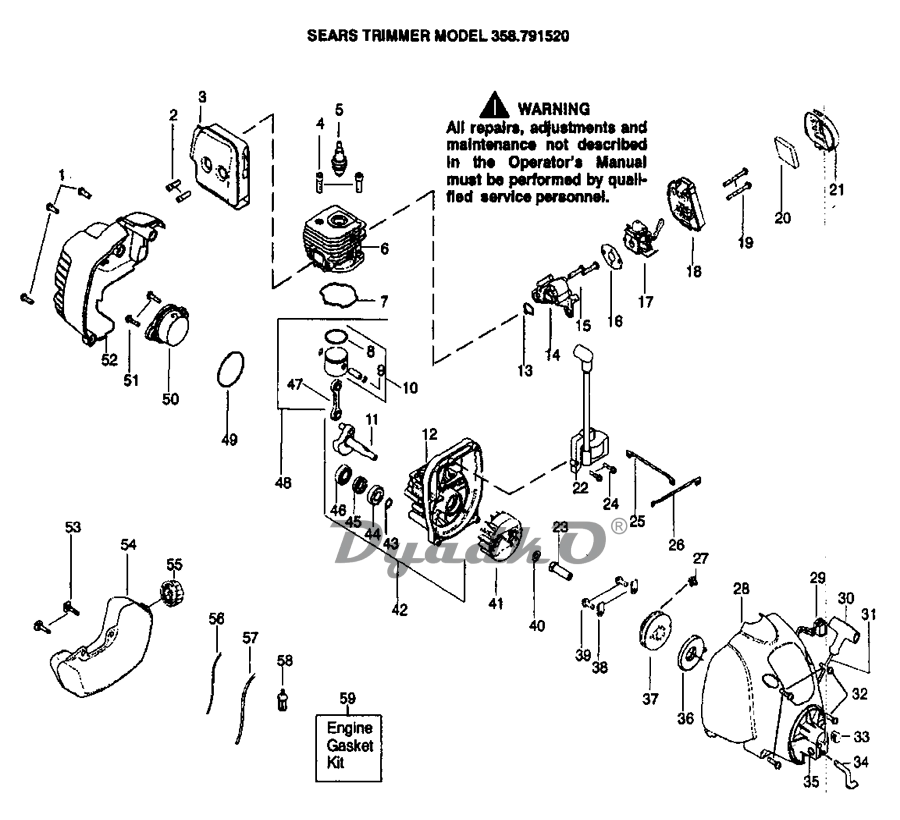

Схема (деталировка) триммеры бензиновые CRAFTSMAN 358.791520 (791520) 02 Двигатель. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Screw
2	Bolt-Muffler
3	Assy-Muffler/Shield (Incl. 2)
4	Screw-Cylinder
5	Spark Plug (RCJ 6Y)
6	Cylinder
7	Seal-Cylinder (kit)
8	Piston Ring
9	Retainer-Piston Pin
10	Kit - Piston (Incl. 8, 9)
11	Assy-Crankshaft
12	Assy-Crankcase (Incl. 44-46)
13	Seal-Cyl/Carb. (kit)
14	Adapter-Carb.
15	Screw
16	Gasket-Carb. (kit)
17	Kit-Carb.(C1U-W24) (Note: Repair kits are not available for carburetor)
18	Air Box
19	Screw
20	Foam-Air Filter
21	Cover-Air Box
22	Ignition Module
23	Coupling-Drive
24	Screw
25	Assy-Leadwire
26	Assy-Ground Wire
27	Screw
28	Assy.-Fan Hsg
29	Kit-Switch
30	Handle-Starter
31	Kit - Rope
32	Screw
33	Nut
34	Clip-Spring
35	Screw
36	Spring-Starter
37	Kit-Pulley-Starter (incl. 27)
38	Retainer-Pulley
39	Screw
40	Washer-Flat
41	Assy-Flywheel
42	Assy-C\'case & C’shaft (Incl. 11,12,43)
43	Retain. Ring-C’shaft
44	Outer Bearing
45	Seal-C’case
46	Inner Bearing
47	Assy-Connecting Rod
48	Kit-Piston/Rod Assy. (Incl. 10 & 47)
49	O-Ring-C’case (kit)
50	Assy-Plug (incl .49)
51	Screw
52	Shroud-Rear
53	Retainer-Tank
54	Assy-Fuel Tank (incl. filter, lines & fuel cap)
55	Assy-Fuel Cap
56	Kit-Fuel Line (Small)
57	Kit-Fuel Line (Large)
58	Assy-Fuel Pickup
59	Kit-Engine Gasket (Ind. 7,13,16,49)
