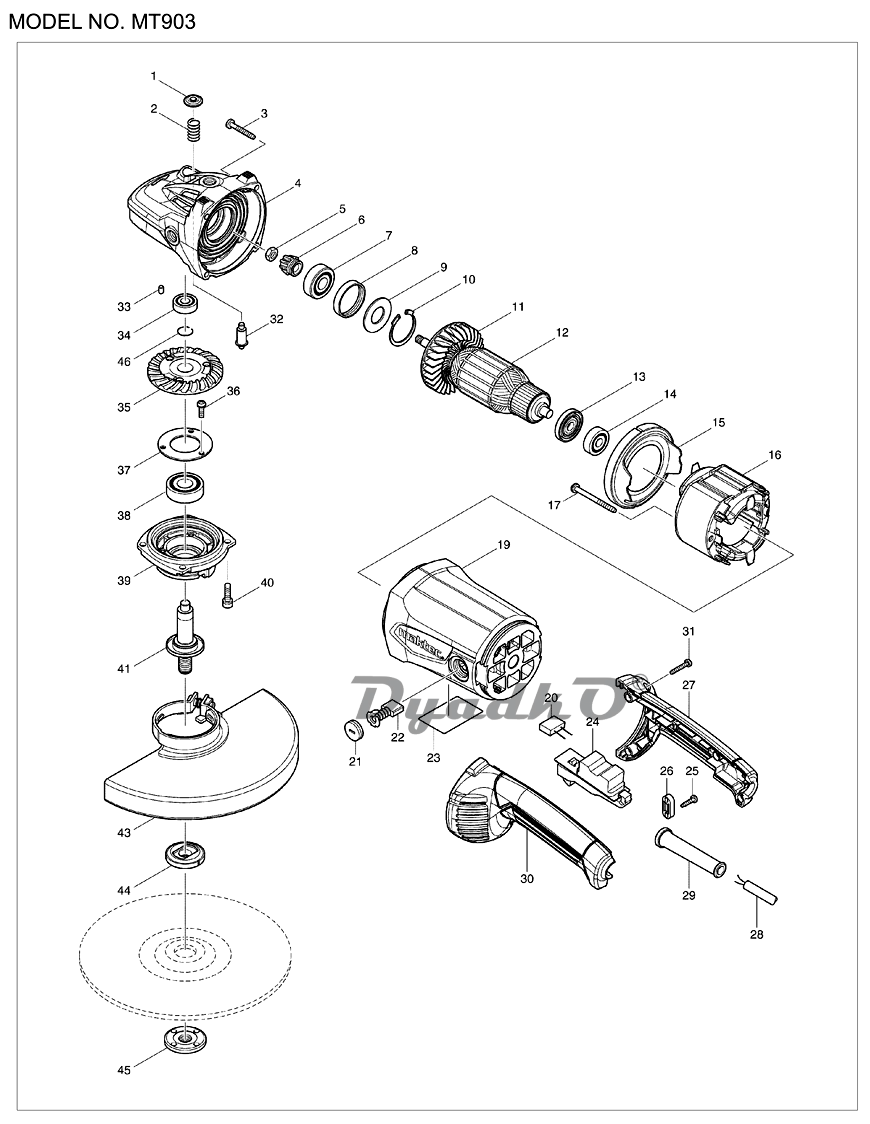

Схема MAKTEC MT903 MT903
1
PIN CAP
2
COMPRESSION SPRING 12
3
TAPPING SCREW 5X35
4
GEAR HOUSING COMPLETE (new)
4
GEAR HOUSING COMPLETE (old)
5
HEX. NUT M8
6
SPIRAL BEVEL GEAR 12
7
BALL BEARING 6301DDW (new)
7
BALL BEARING 6301ZZ (old)
8
RUBBER RING 38
9
FLAT WASHER 20
10
RETAINING RING R-42
11
FAN 80
12
ARMATURE ASS\'Y 220-240V INC. 11,13,14
13
INSULATION WASHER
14
BALL BEARING 6200ZZ
15
BAFFLE PLATE
16
FIELD ASS\'Y 240V
17
TAPPING SCREW 5X65
19
MOTOR HOUSING COMPLETE
20
NOISE SUPPRESSOR
21
BRUSH HOLDER CAP 7-18
22
A.C. CARBON BRUSH CB-204
23
MT903 NAME PLATE
24
SWITCH HY44BC
25
TAPPING SCREW 4X18
26
STRAIN RELIEF
27
HANDLE SET INC. 30
28
POWER SUPPLY CORD 1.0-2-2.0
29
CORD GUARD 9.3-90
30
HANDLE SET INC. 27
31
TAPPING SCREW 4X25
32
SHOULDER PIN 5
33
RUBBER PIN 4
34
BALL BEARING 6000ZZ
35
SPIRAL BEVEL GEAR 53 A
36
PAN HEAD SCREW M5X16
37
BEARING RETAINER 50
38
BALL BEARING 6203DDW
39
BEARING BOX
40
HEX. SOCKET HEAD BOLT M6X22
41
SPINDLE COMPLETE
43
WHEEL COVER 230 ASS\'Y
44
INNER FLANGE 42
45
LOCK NUT 14-45
46
RING SPRING 15
A01
GRIP 36 COMPLETE
A02
LOCK NUT WRENCH 35
