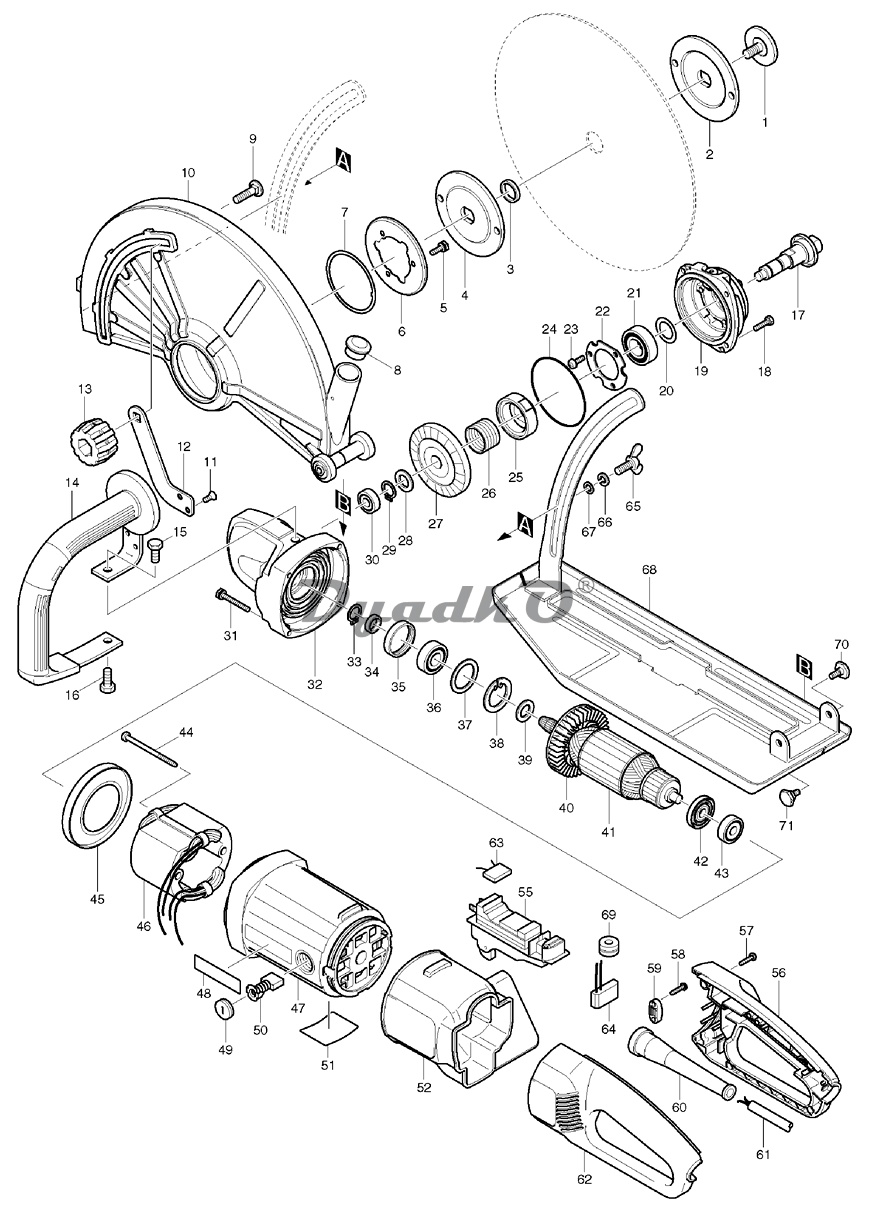

Схема MAKITA 4114 S

1 HEX. BOLT M10X25
2 INNER FLANGE 100
3 RING 20
4 INNER FLANGE 100
5 + HEX. BOLT M5X14
6 PRESSURE PLATE
7 PLATE B
8 CAP 32 (new)
8 CAP 31 (old)
9 CAP SQUARE NECK BOLT M8X30
10 WHEEL COVER ASS\'Y
11 COUNTERSUNK HEAD SCREW M5X8
12 LOCK PLATE
13 THUMB NUT M8
14 GRIP
15 HEX. BOLT M8X20
16 HEX. BOLT M8X20
17 SPINDLE COMPLETE
18 + HEX. BOLT M5X20
19 BEARING BOX COMPLETE
20 FLAT WASHER 20
21 BALL BEARING 6004DDW (new)
21 BALL BEARING 6004DDW (old)
22 BEARING RETAINER 50
23 PAN HEAD SCREW M5X16
24 O RING 80
25 LOCK SLEEVE
26 LOCK SPRING 24
27 SPIRAL BEVEL GEAR 57
28 FLAT WASHER 15
29 RETAINING RING S-15
30 BALL BEARING 6000LLB
31 + HEX. BOLT M5X40
32 GEAR HOUSING COMPLETE
33 RETAINING RING S-15
34 RING 15
35 RUBBER RING 36
36 BALL BEARING 6202DDW
37 FLAT WASHER 30
38 RETAINING RING R-40
39 FLAT WASHER 15
40 FAN 80
41 ARMATURE ASS\'Y 220-240V INC. 40,42,43
42 INSULATION WASHER
43 BALL BEARING 6200DDW
44 TAPPING SCREW 5X75
45 BAFFLE PLATE
46 FIELD 230V
47 MOTOR HOUSING INC. 48
48 MAKITA MARK
49 BRUSH HOLDER CAP
50 A.C. CARBON BRUSH CB-204
51 4114S NAME PLATE (new)
51 4114S NAME PLATE (old)
52 DUST COVER
55 SWITCH 1362.0113 (new)
55 SWITCH 1362.0112 (old)
56 HANDLE SET INC. 62
57 TAPPING SCREW 4X20
58 TAPPING SCREW 4X18
59 STRAIN RELIEF
60 CORD GUARD 10
61 POWER SUPPLY CORD 1.5-2-2.5
62 HANDLE SET INC. 56
63 NOISE SUPPRESSOR
64 SOFT START CIRCUIT
65 WING BOLT M8X20
66 SPRING WASHER 8
67 FLAT WASHER 8
68 BASE
69 LINE FILTER
70 SHOULDER HEX. BOLT M6
71 SHOULDER HEX. BOLT M6
A01 SOCKET WRENCH 17
