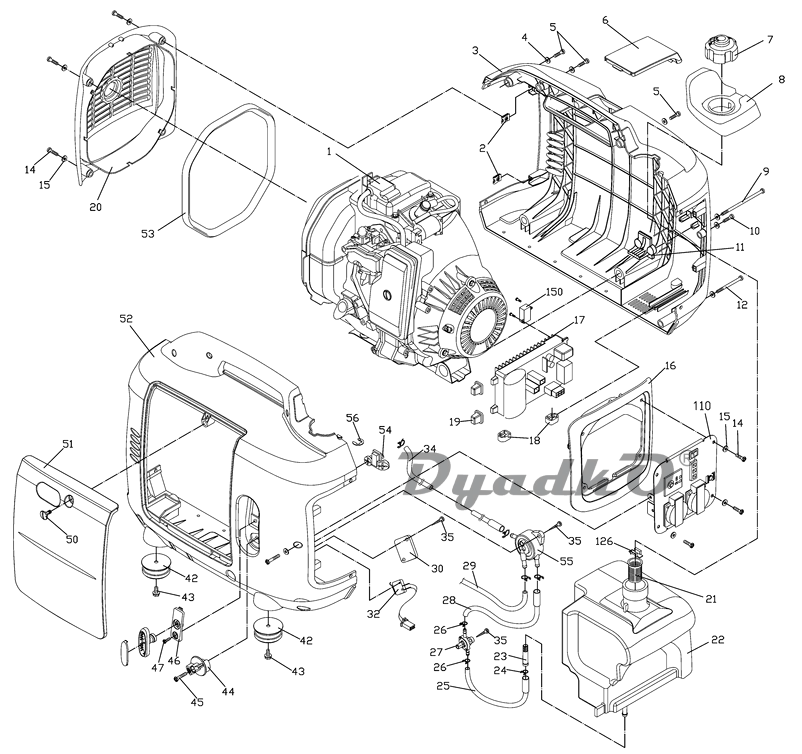

Схема FUBAG TC 2000 01 Электростанция

1 Gasoline Engine
2 Rear Case Locking Plug-in Board
3 Right Case And Inlays
4 Gasket 6
5 Bolt M6 20
6 Top Cover
7 Fuel Tank Cover Assembly
8 Fuel Filler Washer
9 Bolt M6 125
10 Screw M5 25
11 Cross Type Protective Bracket of Right Case
12 Screw M6 72
13 Carburetor Washer A
14 Screw M5 10
15 Gasket 5
16 Front Cover
17 AC Module
18 Module Damping Washer
19 Square Type Rubber Protective Bracket
20 Rear Cover
21 Filter Cup
22 Fuel Tank
23 Strainer
24 Hoop 10
25 Fuel Pipe (switch-fuel tank)
26 Hoop 7
27 Fuel Switch Assembly
28 Fuel Pipe (switch-pump)
29 Negative pressure pipe
30 Microswitch Baffle Plate
31 нет описания
32 Microswitch
33 Pipe joint
34 Fuel Pipe (pump to carburetor)
35 Screw ST3.5X15
36 нет описания
37 нет описания
38 нет описания
39 нет описания
40 нет описания
41 нет описания
42 Bottom Washer
43 Bolt M6 10
44 Oil Switch Lever
45 Screw
46 Grip Mounting Base
47 Screw M5 12
48 Bolt M6 70
49 Air Inlet Side Deflector
50 Screw M6
51 Side lid
52 Left Case And Inlays
53 Rear Case Sealing Strip
54 Cross Type Protective Bracket of Left Case
55 Fuel Vaccum Pump Assembly
56 Open Ring 9
57 Deflector On The Exhaust Side
58 нет описания
59 Muffler Weldment
60 Muffler Washer
61 Exhaust Pipe Washer
62 нет описания
63 нет описания
64 Manual starter Assembly
65 Starter Grip
66 Starter Grip Cover
67 Starter Outcase Assembly
68 Starting Pulling Rope
69 Recoil Starter Spring
70 Starter Coiling Reel
71 Ratchet Spring
72 Ratchet
73 Friction Spring
74 Ratchet Guard Plate
75 Locking Bolt
76 Carburetor Washer
77 Air intake System
78 Air Cleaner Case
79 Fine-cleaning Element
80 Rough-cleaning Element
81 Air Cleaner Cover
82 Locking Screw
83 Bolt M8x25
84 Damper Bushing
85 Hollow Shaft
86 Fixing Plate Weldment of Engine
87 Lower Air Deflector
88 Bolt
89 Starting Pulling Reel
90 Impeller Press Board
91 Impeller
92 Flywheel Nut
93 Trigger
94 Motor Assembly
95 Motor Rotor
96 Motor Stator
97 Bolt M5x30
98 нет описания
99 Carburetor Insulator
100 Bolt M6 16
