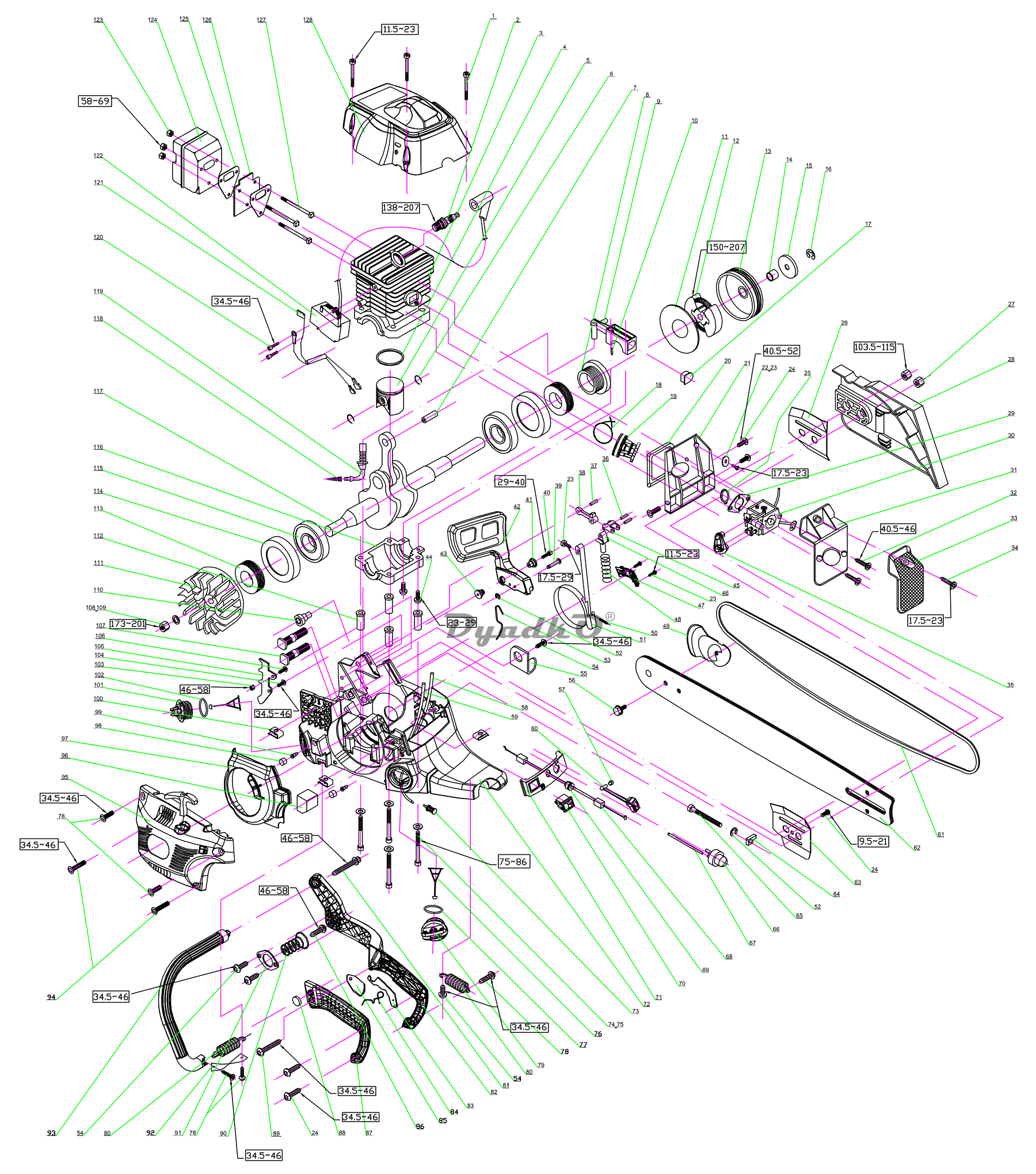

1 |
Screw-slottde pan Hd |
|
1 |
Screw-slottde pan Hd |
|
1 |
Screw-slottde pan Hd |
|
2 |
Spark plug |
|
2 |
Spark plug |
|
2 |
Spark plug |
|
3 |
cylinder kit |
|
3 |
cylinder kit |
|
3 |
cylinder kit |
|
4 |
Piston ring |
|
4 |
Piston ring |
|
4 |
Piston ring |
|
5 |
Piston |
|
5 |
Piston |
|
5 |
Piston |
|
6 |
Ring,retaining |
|
6 |
Ring,retaining |
|
6 |
Ring,retaining |
|
7 |
Piston pin |
|
7 |
Piston pin |
|
7 |
Piston pin |
|
8 |
left hand worm |
|
8 |
left hand worm |
|
8 |
left hand worm |
|
9 |
Oil pump ass\'y |
|
9 |
Oil pump ass\'y |
|
10 |
Needle pin |
|
10 |
Needle pin |
|
10 |
Needle pin |
|
11 |
Thrust washer |
|
11 |
Thrust washer |
|
11 |
Thrust washer |
|
12 |
Clutch&hardware |
|
12 |
Clutch&hardware |
|
12 |
Clutch&hardware |
|
13 |
Sprocket,drum(0.375 pitch)(7pcs) |
|
13 |
Sprocket,drum(0.375 pitch)(7pcs) |
|
13 |
Sprocket,drum(0.375 pitch)(7pcs) |
|
14 |
Bearing,needle |
|
14 |
Bearing,needle |
|
14 |
Bearing,needle |
|
15 |
Washer,cupped |
|
15 |
Washer,cupped |
|
15 |
Washer,cupped |
|
16 |
Ring,retaining |
|
16 |
Ring,retaining |
|
16 |
Ring,retaining |
|
17 |
Plug oil pump Blk |
|
17 |
Plug oil pump Blk |
|
17 |
Plug oil pump Blk |
|
18 |
Clamp-wire |
|
18 |
Clamp-wire |
|
18 |
Clamp-wire |
|
19 |
Intake boot |
|
19 |
Intake boot |
|
19 |
Intake boot |
|
20 |
Seal-carb adaptor |
|
20 |
Seal-carb adaptor |
|
20 |
Seal-carb adaptor |
|
21 |
Adaptor—carburator |
|
21 |
Adaptor—carburator |
|
21 |
Adaptor—carburator |
|
22 |
Washer,retaining |
|
22 |
Washer,retaining |
|
22 |
Washer,retaining |
|
23 |
Screw |
|
23 |
Screw |
|
23 |
Screw |
|
24 |
Screw-Torx |
|
24 |
Screw-Torx |
|
24 |
Screw-Torx |
|
25 |
Plate-Carburator |
|
25 |
Plate-Carburator |
|
25 |
Plate-Carburator |
|
26 |
Plate, guide bar |
|
26 |
Plate, guide bar |
|
26 |
Plate, guide bar |
|
27 |
Nut,hex |
|
27 |
Nut,hex |
|
27 |
Nut,hex |
|
28 |
Drive case cover(GREY) |
|
28 |
Drive case cover(GREY) |
|
28 |
Drive case cover(GREY) |
|
29 |
Gasket-Carburetor |
|
29 |
Gasket-Carburetor |
|
29 |
Gasket-Carburetor |
|
30 |
Carburetor assy. |
|
30 |
Carburetor assy. |
|
30 |
Carburetor assy. |
|
31 |
Air fiter base |
|
31 |
Air fiter base |
|
31 |
Air fiter base |
|
32 |
Screw,carburetor 10-32X1.75 |
|
32 |
Screw,carburetor 10-32X1.75 |
|
32 |
Screw,carburetor 10-32X1.75 |
|
33 |
Air filter cover |
|
33 |
Air filter cover |
|
33 |
Air filter cover |
|
34 |
Screw-slotted pan Hd.(8-16x5/8\") |
|
34 |
Screw-slotted pan Hd.(8-16x5/8\") |
|
34 |
Screw-slotted pan Hd.(8-16x5/8\") |
|
35 |
Grommet-Carburetor |
|
35 |
Grommet-Carburetor |
|
35 |
Grommet-Carburetor |
|
36 |
NEED ROLLER |
|
36 |
NEED ROLLER |
|
36 |
NEED ROLLER |
|
37 |
Pin,roll(small) |
|
37 |
Pin,roll(small) |
|
37 |
Pin,roll(small) |
|
38 |
Chassis link |
|
38 |
Chassis link |
|
38 |
Chassis link |
|
39 |
Hand guard actuating pin |
|
39 |
Hand guard actuating pin |
|
39 |
Hand guard actuating pin |
|
40 |
Screw,Hex socket Hd,(8-32x5/8\") |
|
40 |
Screw,Hex socket Hd,(8-32x5/8\") |
|
40 |
Screw,Hex socket Hd,(8-32x5/8\") |
|
41 |
Pivot, R.H. |
|
41 |
Pivot, R.H. |
|
41 |
Pivot, R.H. |
|
42 |
Hand guard ,kit |
|
42 |
Hand guard ,kit |
|
42 |
Hand guard ,kit |
|
43 |
Pivot,L.H. |
|
43 |
Pivot,L.H. |
|
43 |
Pivot,L.H. |
|
44 |
Screw,Pan Hd. ,plastite(8-16x5/8\") |
|
44 |
Screw,Pan Hd. ,plastite(8-16x5/8\") |
|
44 |
Screw,Pan Hd. ,plastite(8-16x5/8\") |
|
45 |
Stamping |
|
45 |
Stamping |
|
45 |
Stamping |
|
46 |
Brake band slider |
|
46 |
Brake band slider |
|
46 |
Brake band slider |
|
47 |
Cover, chain brake |
|
47 |
Cover, chain brake |
|
47 |
Cover, chain brake |
|
48 |
Spring,compression |
|
48 |
Spring,compression |
|
48 |
Spring,compression |
|
49 |
Safety tip |
|
49 |
Safety tip |
|
49 |
Safety tip |
|
50 |
Pin,roll(big) |
|
50 |
Pin,roll(big) |
|
50 |
Pin,roll(big) |
|
51 |
Chain brake band kit |
|
51 |
Chain brake band kit |
|
51 |
Chain brake band kit |
|
52 |
Retaining ring |
|
52 |
Retaining ring |
|
52 |
Retaining ring |
|
53 |
Spring,handguard |
|
53 |
Spring,handguard |
|
53 |
Spring,handguard |
|
54 |
Screw,thread form(10-14x1/2\") |
|
54 |
Screw,thread form(10-14x1/2\") |
|
54 |
Screw,thread form(10-14x1/2\") |
|
55 |
Chain catcher |
|
55 |
Chain catcher |
|
55 |
Chain catcher |
|
56 |
Screw,Hex head,safety tip |
|
56 |
Screw,Hex head,safety tip |
|
56 |
Screw,Hex head,safety tip |
|
57 |
Hair pin |
|
57 |
Hair pin |
|
57 |
Hair pin |
|
58 |
Rubber tubing(5 1/2\') |
|
58 |
Rubber tubing(5 1/2\') |
|
58 |
Rubber tubing(5 1/2\') |
|
59 |
Rubber tubing(5 1/2\") |
|
59 |
Rubber tubing(5 1/2\") |
|
59 |
Rubber tubing(5 1/2\") |
|
60 |
Plastic,choke rod |
|
60 |
Plastic,choke rod |
|
60 |
Plastic,choke rod |
|
61 |
Saw chain /33SL-78 |
|
61 |
Saw chain /33SL-78 |
|
62 |
20\" BAR W/S FOR P/N308112001 |
|
62 |
20\" BAR W/S FOR P/N308112001 |
|
63 |
Plate,guide bar |
|
63 |
Plate,guide bar |
|
63 |
Plate,guide bar |
|
64 |
Adjusting pin(UT10927 AND UT10946) |
|
64 |
Adjusting pin(UT10927 AND UT10946) |
|
64 |
Adjusting pin(UT10927 AND UT10946) |
|
65 |
Screw |
|
65 |
Screw |
|
65 |
Screw |
|
66 |
Primer bulb |
|
66 |
Primer bulb |
|
66 |
Primer bulb |
|
67 |
Rubber tubing(2 1/2\") |
|
67 |
Rubber tubing(2 1/2\") |
|
67 |
Rubber tubing(2 1/2\") |
|
68 |
Throttle cable |
|
68 |
Throttle cable |
|
68 |
Throttle cable |
|
69 |
Grommet-spilt |
|
69 |
Grommet-spilt |
|
69 |
Grommet-spilt |
|
70 |
Switch,rocker |
|
70 |
Switch,rocker |
|
70 |
Switch,rocker |
|
71 |
Control panel |
|
71 |
Control panel |
|
71 |
Control panel |
|
72 |
Chassis |
|
72 |
Chassis |
|
72 |
Chassis |
|
73 |
Fuel filter |
|
73 |
Fuel filter |
|
73 |
Fuel filter |
|
74 |
Screw,cap-socket Hd,(10-24x2\") |
|
74 |
Screw,cap-socket Hd,(10-24x2\") |
|
74 |
Screw,cap-socket Hd,(10-24x2\") |
|
75 |
Washer |
|
75 |
Washer |
|
75 |
Washer |
|
76 |
Plastic holder |
|
76 |
Plastic holder |
|
77 |
O-ring |
|
77 |
O-ring |
|
77 |
O-ring |
|
78 |
Screw,truss Hd,(10-14x5/8\") |
|
78 |
Screw,truss Hd,(10-14x5/8\") |
|
78 |
Screw,truss Hd,(10-14x5/8\") |
|
79 |
Fuel cap |
|
79 |
Fuel cap |
|
79 |
Fuel cap |
|
80 |
Isolater Spring |
|
80 |
Isolater Spring |
|
80 |
Isolater Spring |
|
81 |
Screw-pan Hd,(12-14x1 1/2\") |
|
81 |
Screw-pan Hd,(12-14x1 1/2\") |
|
81 |
Screw-pan Hd,(12-14x1 1/2\") |
|
82 |
Rear handle kit |
|
82 |
Rear handle kit |
|
82 |
Rear handle kit |
|
83 |
Throttle lock out |
|
83 |
Throttle lock out |
|
83 |
Throttle lock out |
|
84 |
Torsion spring |
|
84 |
Torsion spring |
|
84 |
Torsion spring |
|
85 |
Triggle,throttle |
|
85 |
Triggle,throttle |
|
85 |
Triggle,throttle |
|
86 |
Screw,truss Hd,(10-24x5/8\") |
|
86 |
Screw,truss Hd,(10-24x5/8\") |
|
86 |
Screw,truss Hd,(10-24x5/8\") |
|
87 |
Handle cover kit |
|
87 |
Handle cover kit |
|
87 |
Handle cover kit |
|
88 |
Plug-plastic |
|
88 |
Plug-plastic |
|
88 |
Plug-plastic |
|
89 |
Screw,thread form |
|
89 |
Screw,thread form |
|
89 |
Screw,thread form |
|
90 |
Isolator spring |
|
90 |
Isolator spring |
|
90 |
Isolator spring |
|
91 |
Isolator plate |
|
91 |
Isolator plate |
|
91 |
Isolator plate |
|
92 |
Limiter,isolator |
|
92 |
Limiter,isolator |
|
92 |
Limiter,isolator |
|
93 |
Front handle kit |
|
93 |
Front handle kit |
|
93 |
Front handle kit |
|
94 |
Screw,truss Hd„plastite(10-14x7/8\") |
|
94 |
Screw,truss Hd„plastite(10-14x7/8\") |
|
94 |
Screw,truss Hd„plastite(10-14x7/8\") |
|
95 |
Starter assy(GREY) |
|
95 |
Starter assy(GREY) |
|
95 |
Starter assy(GREY) |
|
96 |
Pre filter |
|
96 |
Pre filter |
|
96 |
Pre filter |
|
97 |
Battle,fan housing |
|
97 |
Battle,fan housing |
|
97 |
Battle,fan housing |
|
98 |
Element,filter (bronze) |
|
98 |
Element,filter (bronze) |
|
98 |
Element,filter (bronze) |
|
99 |
Duck bill valve |
|
99 |
Duck bill valve |
|
99 |
Duck bill valve |
|
100 |
Speed nut(\'U\'-type\') |
|
100 |
Speed nut(\'U\'-type\') |
|
100 |
Speed nut(\'U\'-type\') |
|
101 |
□il cap |
|
101 |
□il cap |
|
101 |
□il cap |
|
102 |
O-ring |
|
102 |
O-ring |
|
102 |
O-ring |
|
103 |
Nut,hex |
|
103 |
Nut,hex |
|
103 |
Nut,hex |
|
104 |
Screw |
|
104 |
Screw |
|
104 |
Screw |
|
105 |
Bumper spike |
|
105 |
Bumper spike |
|
105 |
Bumper spike |
|
106 |
Screw |
|
106 |
Screw |
|
106 |
Screw |
|
107 |
Guide bar bolt |
|
107 |
Guide bar bolt |
|
107 |
Guide bar bolt |
|
108 |
Nut, jam |
|
108 |
Nut, jam |
|
108 |
Nut, jam |
|
109 |
Washer, flat |
|
109 |
Washer, flat |
|
109 |
Washer, flat |
|
110 |
Oil outlet grommet |
|
110 |
Oil outlet grommet |
|
110 |
Oil outlet grommet |
|
111 |
Rotor & w/starter pawl |
|
111 |
Rotor & w/starter pawl |
|
111 |
Rotor & w/starter pawl |
|
112 |
Spacer insert |
|
112 |
Spacer insert |
|
112 |
Spacer insert |
|
113 |
Shaft seal |
|
113 |
Shaft seal |
|
113 |
Shaft seal |
|
114 |
Rubber case |
|
114 |
Rubber case |
|
114 |
Rubber case |
|
115 |
Bearing & rubber case |
|
115 |
Bearing & rubber case |
|
115 |
Bearing & rubber case |
|
116 |
Lower crankcase |
|
116 |
Lower crankcase |
|
116 |
Lower crankcase |
|
117 |
Crankshaft & Rod assembly |
|
117 |
Crankshaft & Rod assembly |
|
117 |
Crankshaft & Rod assembly |
|
118 |
Cone spring |
|
118 |
Cone spring |
|
118 |
Cone spring |
|
119 |
Rubber tube oil intake |
|
119 |
Rubber tube oil intake |
|
119 |
Rubber tube oil intake |
|
120 |
Screw, thread form(8-32x5/8\") |
|
120 |
Screw, thread form(8-32x5/8\") |
|
120 |
Screw, thread form(8-32x5/8\") |
|
121 |
Ignition switch harness |
|
121 |
Ignition switch harness |
|
121 |
Ignition switch harness |
|
122 |
Ignition kit |
|
122 |
Ignition kit |
|
122 |
Ignition kit |
|
123 |
Nut-locking Hex(10-32) |
|
123 |
Nut-locking Hex(10-32) |
|
123 |
Nut-locking Hex(10-32) |
|
124 |
Muffler kit |
|
124 |
Muffler kit |
|
124 |
Muffler kit |
|
125 |
Muffler gasket |
|
125 |
Muffler gasket |
|
125 |
Muffler gasket |
|
126 |
Plate-muffler |
|
126 |
Plate-muffler |
|
126 |
Plate-muffler |
|
127 |
Screw-square Hd. |
|
127 |
Screw-square Hd. |
|
127 |
Screw-square Hd. |
|
128 |
cylinder cover kit w/safety decal (GREY) |
|
128 |
cylinder cover kit w/safety decal (GREY) |
|
128 |
cylinder cover kit w/safety decal (GREY) |
