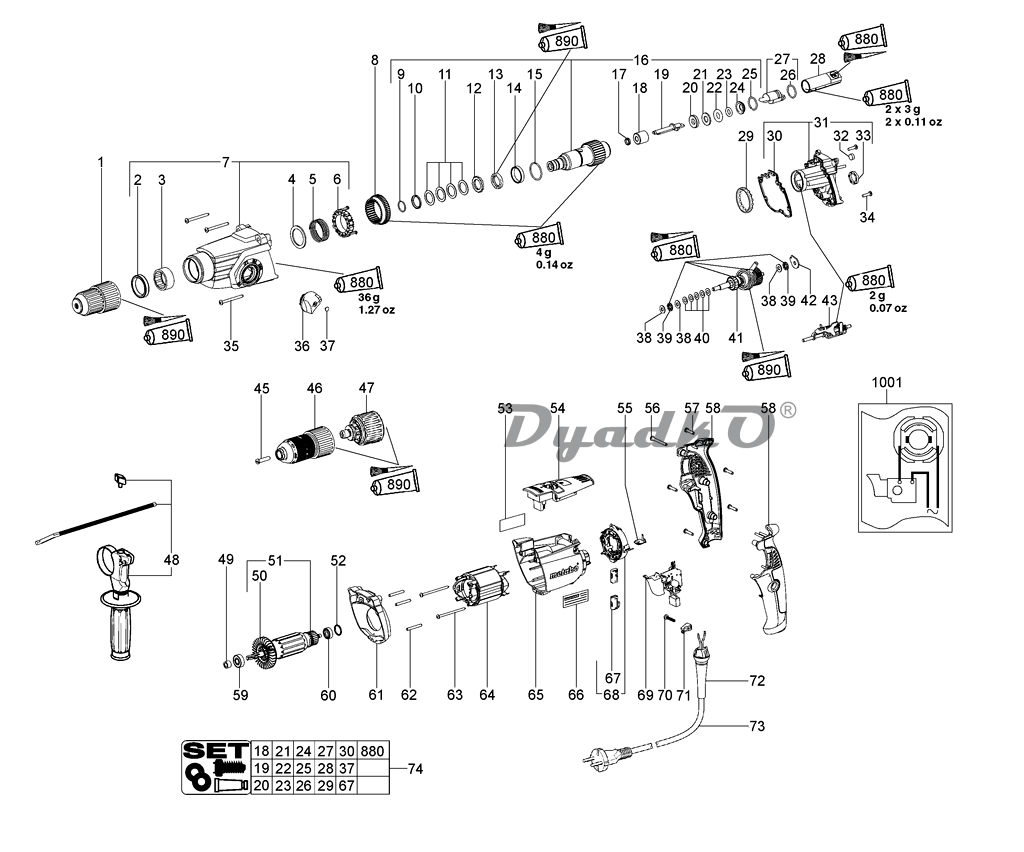

Схема (деталировка) перфораторы METABO UHE 2650 Multi UHE 2650 Multi (00952000). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Adaptor SDS -PLUS
2	Shaft sealing ring
3	Needle sleeve,30x37x16
4	Washer
5	Pressure spring,34,7x38,3x1,8x27,7
6	Retaining ring
7	Gear housing cpl.
8	Sliding block
9	Circlip
10	Support ring
11	Cup spring
12	Ratched wheel
13	Ratched wheel
14	Support ring
15	Circlip
16	Drill driving sleeve cpl.
17	Shaft sealing ring
18	Bushing
19	Piston
20	Support ring
21	O-ring
22	Washer
23	O-ring
24	Catching sleeve
25	Circlip
26	Sealing ring
27	Striker compl.
28	exciter sleeve compl.
29	Ball holder
30	Seal
31	Gear flange cpl.
32	Felt seal
33	Rubber buffer
34	Filister head screw
35	Self-tap. fill. h. screw
36	Control knob compl.
37	Seal
38	Washer
39	Axial needle bearing
40	Cup spring
41	Pinion shaft compl.
42	guide sheet
43	Shift element compl.
45	Cap screw
46	Keyless chuck w.adaptor
47	Quick-change adaptor
48	Side support handle compl.
49	Sealing ring
50	Fan
51	Armature compl.,230 V (w. tacho gen.)
52	O-ring
53	Rating plate
54	Electronic unit,230V 50/60Hz
55	Brush contact
56	Self-tap. fill. h. screw
57	Self-tap. fill. h. screw
58	Pistol grip 2-part, gummed
59	Ball bearing, 8x22x7
60	Ball bearing, 6X 19X 6
61	Intermediate flange
62	Cylindrical pin
63	Self-tap. fill. h. screw
64	Field coil 230V
65	Motor housing
66	Part not needed
67	Carbon brush set,230 V
68	Brush holder module,230V
69	Poti switch
70	Self-tap. fill. h. screw
71	Cable clip
72	Cable sleeve
73	Cable with plug
74	Maintenance kit
880	Grease FG 126
890	Tube Grease,50g Klueber Microlube GL 261
1001	Wiring diagram,230 V
