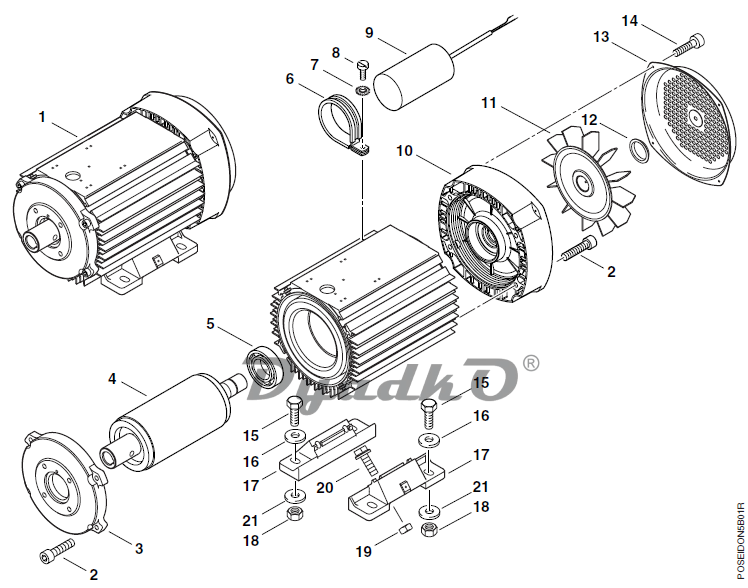

Схема (деталировка) профессиональные мойки без подогрева воды NILFISK SP-POSEIDON 5 Двигатель. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Motor 2,2kW 230/1-
1	Motor 4,5kW 230/400/3-
1	Motor 5,5kW 230/400/3-
1	Motor 6,7kW 230/400/3-
1	Motor 5,2kW 200/346 3-
1	Motor 5,2kW 220/1 -
1	Motor 1,4kW 120/1-
2	Hexagon socket head cap screw M8x35 IS04
2	Hexagon socket head cap screw M6x35 IS04
3	Motorflange
3	Motorflange
4	Rotor for 2.2kW motor
4	Rotor for 4.5kW motor
4	Rotor for 5.5kW motor
4	Rotor for 6.7kW motor
4	Rotor for 1,4kW motor
4	Rotor for 5,2kW motor
5	Roller bearing 6306-2Z DIN625
5	Roller bearing 6206-2Z DIN625-1
6	Fastening clip 050.8x16.3
7	Serrated lock washer A5,3 DIN 6798
8	Hexagon socket head cap screw M5x10 ISOI
9	Capacitor 60pF/450V
9	Capacitor 60pF/450V
9	Capacitor 90(jF/400V
10	Rear bearing cover
10	Rear bearing cover
11	Fan wheel
11	Fan wheel
12	Fastening ring
13	Fan housing
13	Fan housing
14	Sheet metal screw 3,5x9,5 C-H IS07049
15	Hexagon head cap screw M10x30 IS04017
16	Washer 10,5x2,5 A ISO 7093-1
17	Motor foot 45mm high
17	Motor foot 51mm high
18	Hexagon nut M10 ISO 7042
19	Hexagon nut M8 DIN 985
20	Screw M8x20 DIN6921
21	Washer 10,5x2,0 ISO 7090
