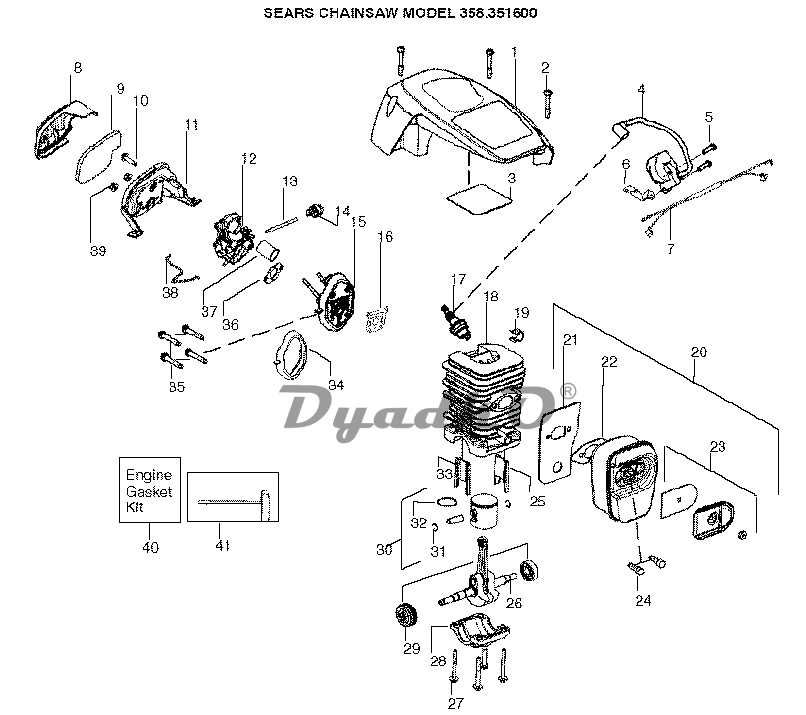

Схема (деталировка) пилы цепные бензиновые CRAFTSMAN 351600 (358.351600) Двигатель. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Shield-Cyl. (Ind. 2,3)
2	Screw
3	Tape-Reflector
4	Module- Ignition
5	Screw
6	Strap-Ground
7	Assy-Wire Harness
8	Cover-Air Filter
9	Filter-Air
10	Screw
11	Housing—Air Filter
12	Carburetor (Zama W26B) Ind. 14
13	Kit-Fuel Line (Small)
14	Bulb-Purge \"snap-in,r
15	Kit- Carb, Adapter (Ind, 16,34,37)
16	Gasket-Cyl, O-ring (kit)
17	Champion Accy-Spark Plug (RCJ-7Y)
18	Kit-Cylinder {IncL 25,33)
19	Clip-High Tension Lead
20	Kit-Muffler (Ind. 21,22,23,24)
21	Backplate—Muffler
22	Gasket-Muffler (kit)
23	Kit-Spark Arrestor
24	Bolt-Muffler
25	Insert- Left (black) Cyl.
26	Assy- Crankshaft/Ro d
27	Bolt
28	Cap-Crankcase
29	Assy - Bearing/Seal
30	Kit-Piston flnck 31,32)
31	Retainer- Piston pin
32	Ring-Piston
33	Insert-Right (gray) Cyl.
34	Seal-Adaptor (kit)
35	Screw
36	Gasket-Carb /Adapter (kit)
37	Tube-Intake
38	Wire—Throttle
39	Niit- Carb.
40	Kit- Engine Gasket (Ind. 16,22,34,36)
41	Scrench
	Не показано:
_	Manual
_	Decal-Warning
