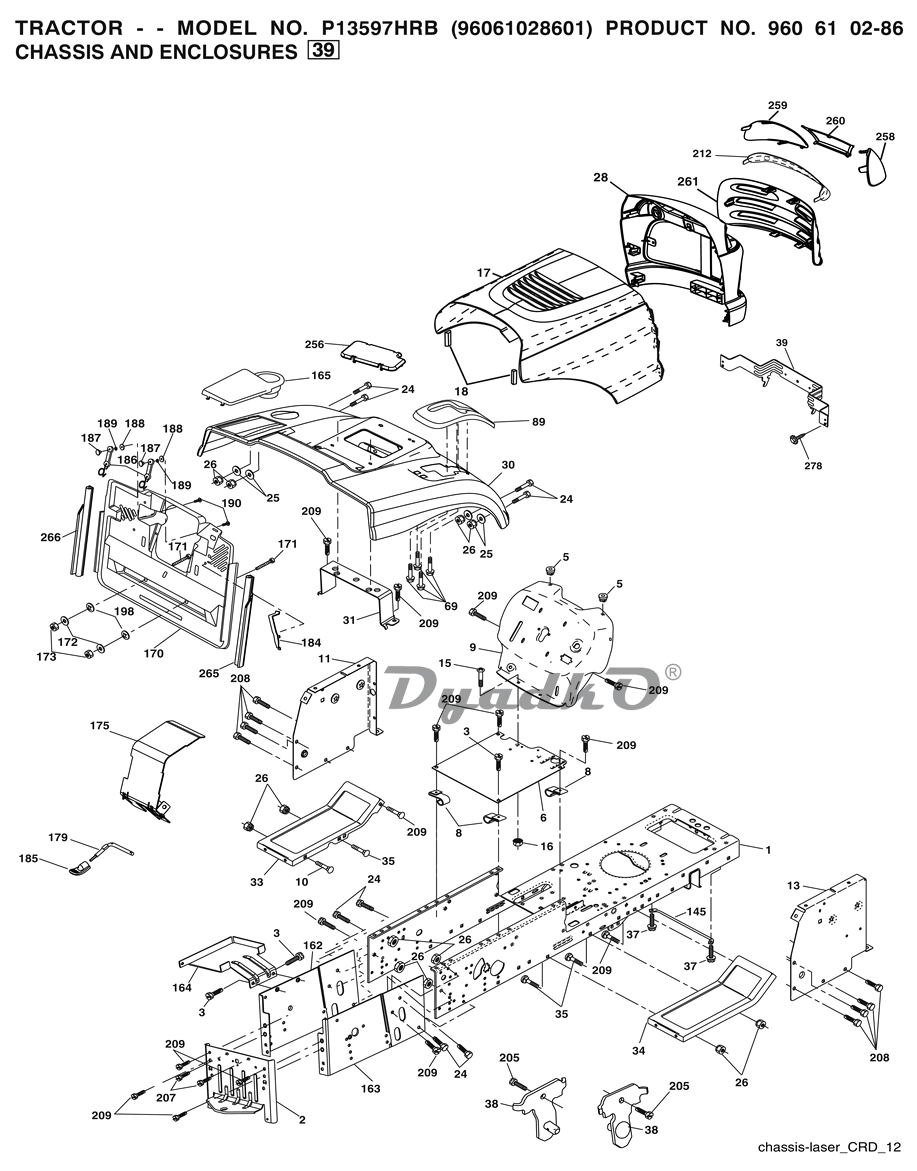

Схема (деталировка) тракторы садовые и райдеры PARTNER P13597HRB (96061028601) 04 Корпус, рама. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Chassis
2	Drawbar
3	Screw 3/8-16 x 3/4
5	Bumper Hood/Dash
6	Saddle
8	Clip Insulator 13/32 Mtg. Hole
9	Dash
10	Bolt, Carriage 3/8-16 x 3/4
11	Panel, Dash, LH
13	Panel, Asm. Dash RH
15	Screw, Machine, Truss Head 5/16-18 unc x 3/4
16	Nut
17	Hood
18	Bumper Hood
24	Bolt
25	Washer 13/32 x 13/16 x 12 Ga.
26	Nut
28	Grille
30	Fender
31	Bracket, Fender Support
33	Footrest, LH
34	Footrest, RH
35	Bolt
37	Screw Thdrol 5/16-18 x 1/2 TYT
38	Bracket Asm Pivot Mower Rear
39	Bracket Pivot
69	Screw HxWsh Hi-Lo
89	Console CRD 6 Sp. 418
145	Rod Pivot Hood
162	Bracket Exten Chassis LH CRD
163	Bracket Exten Chassis RH CRD
164	Support Battery CRD
165	Cover Battery
170	Backplate CRD
171	Bolt Rdhd Sqnk 3/8-16 x 2-1/2 Gr. 5
172	Washer 13/32 x 1-1/4 x 16 Ga.
173	Nut, Keps Hex 3/8-16 unc
175	Door Trap
179	Rod Pivot FBI CRD
184	Bracket Actuator Bagger CRD
185	Knob Rod Brake Parking
186	Latch Asm Mulch/Bagger
187	Nut Weld
188	Washer #10
189	Washer Lock #10
190	Screw Pan Hd Phillip 10-24 x 5/8
198	Nut, Push
205	Screw Thdrol 3/8-16 x 1/2
207	Screw Thdrl. 5/16-18 x 1/2
208	Screw Thdrol 3/8-16 x 1/2
209	Screw Hex Wsh Thdrol 3/8-16
212	Insert Lens Reflector
256	Cover Fender Rack
258	Lens RH
259	Lens LH
260	Cover Lens
261	Insert Grille
265	Seal RH Side Bagger
266	Seal LH Side Bagger
278	Screw #10 x .750 BOS Thread
- -	Plug Button
