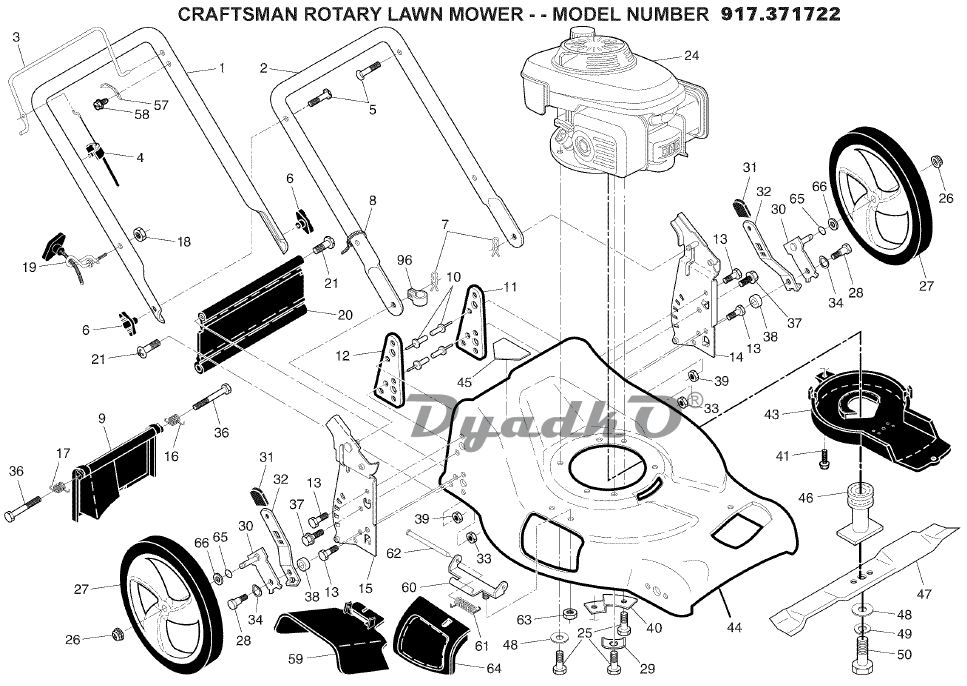

Схема (деталировка) газонокосилки бензиновые CRAFTSMAN 917.371722 Ручки, Задние колеса. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Upper Handle
2	Lower Handle
3	Control Bar
4	Engine Zone Control Cable
5	Handle Bolt
6	Handle Knob
7	Hairpin Cotter
8	Wire Tie
9	Rear Door Assembly
10	Pop Rivet
11	Support Bracket, LH
12	Support Bracket, RH
13	Screw 1/4-20x5/8
14	Handle Bracket, LH
15	Handle Bracket, RH
16	Spring, Rear Door, LH
17	Spring, Rear Door, RH
18	Keps Locknut 1/4-20
19	Rope Guide
20	Rear Skirt
21	Hinge Screw 1/4-20 x 1-1/4
24	Engine, Honda, Model Number GCV160-LAS3A (See Breakdown)
25	Screw, Hex Head, Threaded, Rolled 3/8-16x2
26	Nut, Hex, Flangelock 3/8-16
27	Wheel & Tire Assembly, Rear, 12\"
28	Bolt, Shoulder 5/16-18
29	Washer, Special, Engine
30	Axle Arm Assembly, Rear
31	Selector Knob
32	Selector Spring
33	Nut, Hex, Nylock 5/16-18
34	Washer, Curved
36	Bolt, Rear Door
37	Thread Cutting Screw w/Sems 5/16-18x3/4
38	Spacer
39	Nut, Hex 3/8-16
40	Mounting Bracket, Debris Shield
41	Screw, Debris Shield
43	Debris Shield
44	Kit, Lawn Mower Housing (Includes Key Numbers 10, 11, 12 and 45)
45	Danger Decal
46	Blade Adapter / Pulley
47	Blade, 21\"
48	Hardened Washer
49	Helical Washer 3/8
50	Bolt, Hex Head, Grade 8
57	Bracket, Upstop
58	Screw
59	Discharge Deflector
60	Hinge Bracket
61	Spring
62	Rod, Hinge
63	Nut, Hex
64	Mulcher Door
65	O-Ring
66	Washer, Flat 1/2
96	Clip, Cable
__	Warning Decal (not shown)
__	Owner\'s Manual
__	Gas Can (2.5 Gallon Container)
__	Fuel Stabilizer
__	SAE 30W Oil (20 Ounce Bottle)
