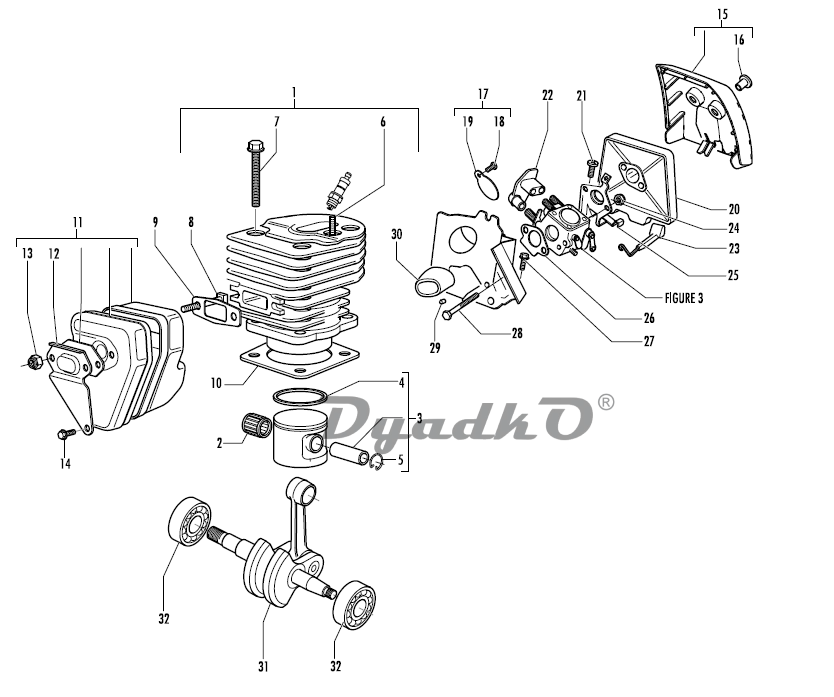

Схема PARTNER P543 Двигатель
1
cityrxJer / piston kit 503609172
2
needle bearing 501451601
3
piston kit 503608171
4
piston ring 503289014
5
retaining ring 737441000
6
stod bolt 503208006
7
screw 503200220
8
screw 503218201
9
gasket 503102303
10
gasket 503162103
11
muffler 503125601
12
muffler support 503127501
13
M5 nut 538229208
14
screw 503200212
15
air filler cover ass\'y 538242675
16
slotted barrel M5 503227001
17
heat shield 503150801
18
valve gate 505269314
19
screw 503212713
20
air filter 503507401
21
screw 503202512
22
screw driver guide 505279203
23
choke control lever 506034301
24
M5 nut 538229208
25
air filter flange 503507101
26
gasket 503490701
27
screw 503200220
28
screw 725234150
29
rubber 505310751
30
induction pipe 503161602
31
crankshaft ass’y 503573805
32
bearing 738220225
