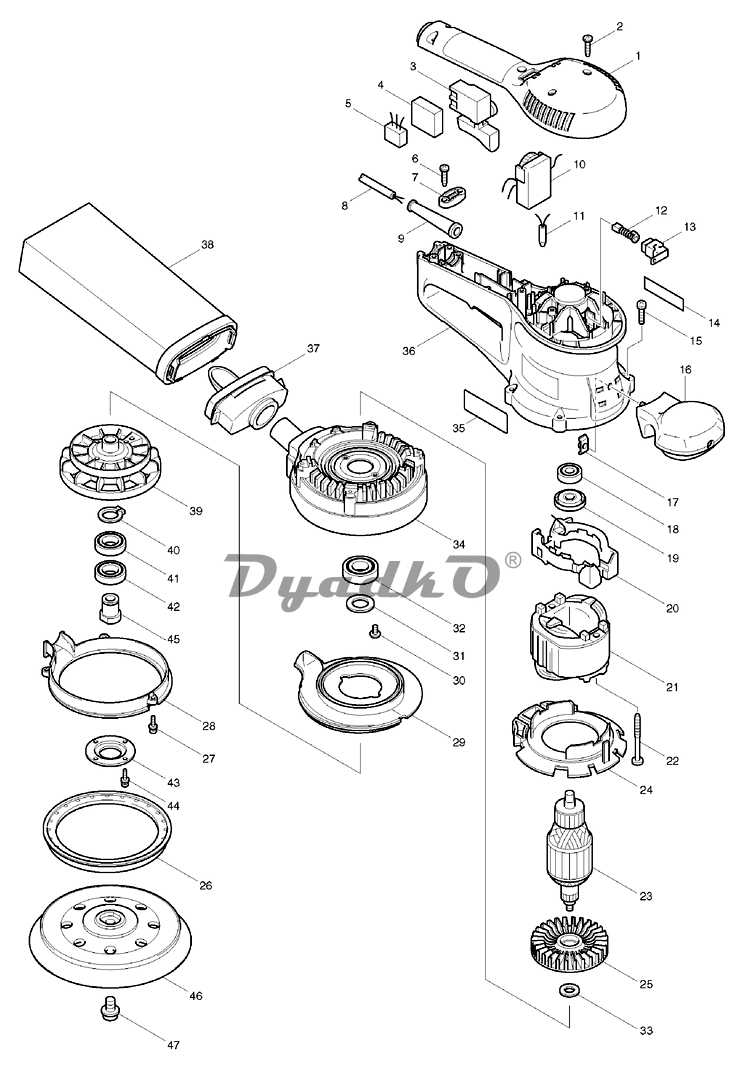

Схема MAKITA BO 6030

1	TOP COVER
2	TAPPING SCREW 4X18
3	SWITCH SGEL206C-5
5	NOISE SUPPRESSOR
6	TAPPING SCREW 4X18
7	STRAIN RELIEF (new)
7	CORD CLAMP (old)
8	POWER SUPPLY CORD 1.0-2-4.0 (new)
8	POWER SUPPLY CORD 1.0-2-4.0 (old)
9	CORD GUARD 8
10	CONTROLLER
11	CHOKE COIL
12	CARBON BRUSH CB-419
13	BRUSH HOLDER
14	MAKITA LABEL
15	PAN HEAD SCREW M4X20
16	FRONT GRIP
17	SQUARE NUT M5
18	BALL BEARING 608DDW
19	INSULATION WASHER
20	SUPPORT COMPLETE
21	FIELD 220-240V
22	TAPPING SCREW 5X50
23	ARMATURE ASS\'Y 220-240V INC. 18,19,25
24	BAFFLE PLATE
25	FAN 70
26	RUBBER GUARD
27	PAN HEAD SCREW M3X12
28	SCROLL HOUSING SET INC. 29
29	SCROLL HOUSING SET INC. 28
30	+ SCREW M4X8
31	THIN WASHER 15
32	BALL BEARING 6002DDW
33	FLAT WASHER 10
34	SKIRT
35	NAME PLATE BO6030
36	MOTOR HOUSING SET INC. 14
37	DUST NOZZLE COMPLETE
38	DUST BAG COMPLETE
39	FAN 92
40	RETAINING RING S-15
41	BALLBEARING 6902LLB (new)
41	BALL BEARING 6902DDW (old)
42	BALL BEARING 6902LLU (new)
42	BALL BEARING 6902DDW (old)
43	BEARING RETAINER
44	PAN HEAD SCREW M3X12
45	SPINDLE
46	PAD 150 SET (SOFT) (new)
46	RUBBER PAD (SOFT) (old)
47	HEX.SOCKET HEAD BOLT M8X14
A01	WRENCH HOLDER 5.6
A02	ABRASIVE DISC 150#120
A03	HEX. WRENCH 5
A04	PAPER DUST BAG HOLDER
A05	PAPER DUST BAG
E01	EARTH TERMINAL
