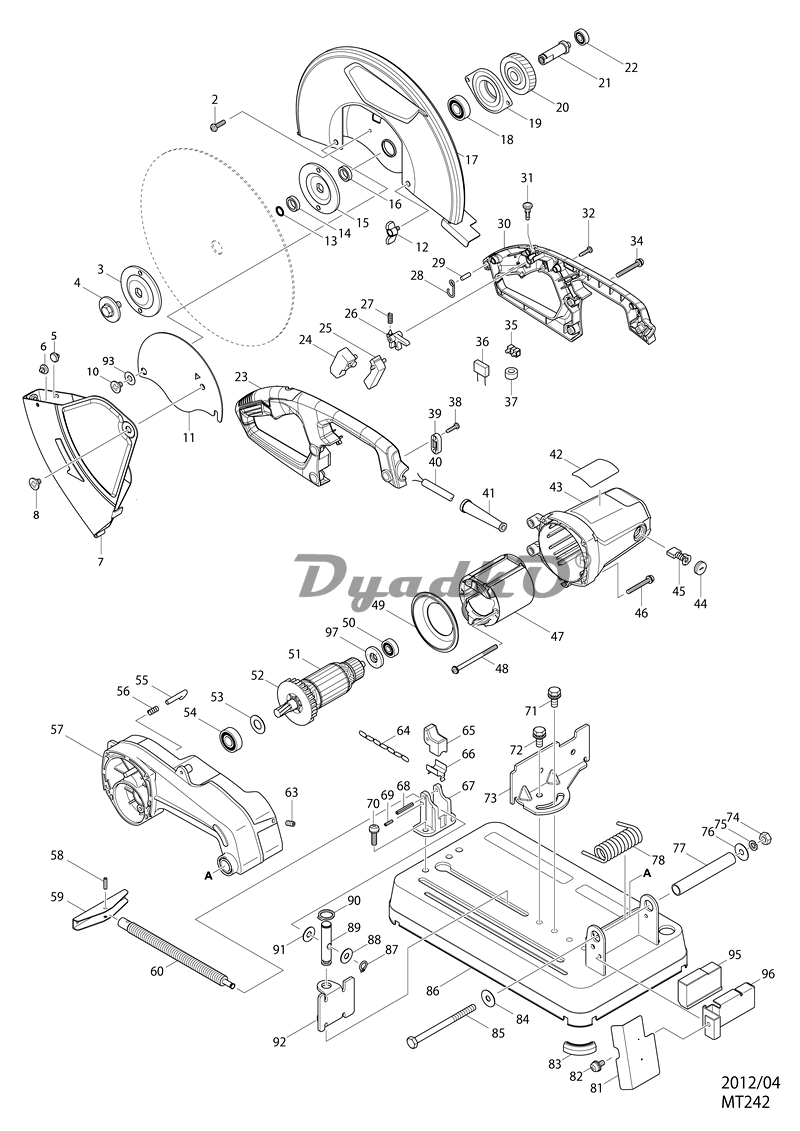

Схема MAKTEC MT242

2 PAN HEAD SCREW M5X20
3 FLANGE 90
4 HEX. BOLT M10X25
5 PLUG
6 PLUG
7 SAFETY GUIDE
8 нет описания
10 нет описания
11 CENTER COVER
12 THUMB SCREW M6X12
13 O RING 14
14 RING 17
15 FLANGE 90
16 RING 17
17 SAFETY COVER
18 BALL BEARING 6203ZZ
19 BEARING BOX
20 HELICAL GEAR 49
21 SPINDLE
22 BALL BEARING 6000ZZ
23 HANDLE SET INC. 30
24 SWITCH TGA115CT-2
25 SWITCH LEVER
26 SWITCH LOCK
27 COMPRESSION SPRING 4
28 HANGER
29 PIN 6
30 HANDLE SET INC. 23
31 SWITCH BUTTON
32 TAPPING SCREW 4X18
34 PAN HEAD SCREW M5X40
35 TERMINAL BLOCK
36 NOISE SUPRESSOR
37 LINE FILTER
38 TAPPING SCREW 4X18
39 STRAIN RELIEF
40 POWER SUPPLY CORD 1.0-2-3.0
41 CORD GUARD 9.3-90
42 MT242 NAME PLATE
43 MOTOR HOUSING COMPLETE
44 BRUSH HOLDER CAP 7-18
45 CARBON BRUSH CB-203
46 PAN HEAD SCREW M5X40
47 FIELD ASS\'Y 240V
48 TAPPING SCREW 5X80
49 BAFFLE PLATE
50 BALL BEARING 6200ZZ
51 ARMATURE ASS\'Y 240V INC. 50,52-54,97
52 FAN 80
53 FLAT WASHER 15
54 BALL BEARING 6200ZZ
55 STOPPER
56 COMPRESSION SPRING 7
57 GEAR HOUSING COMPLETE
58 SPRING PIN 5-20
59 HANDLE 120
60 VISE SCREW
63 H.S.SET SCREW(FLAT POINT)M6X10
64 CHAIN
65 VISE NUT
66 PLATE
67 SCREW GUIDE
68 SPRING PIN 5-36
69 SPRING PIN 4-16
70 PAN HEAD SCREW M8X30
71 HEX.BOLT M10X25
72 HEX.BOLT M10X25
73 GUIDE PLATE
74 HEX.NUT M10-17
75 SPRING WASHER 10
76 FLAT WASHER 10
77 PIPE 20-128
78 TORSION SPRING 24
81 SPARK GUARD
82 PAN HEAD SCREW M6X12
83 CUSHION
84 FLAT WASHER 10
85 HEX.BOLT M10X140
86 BASE
87 RETAINING RING S-8
88 FLAT WASHER 8
89 PIN 16
90 RETAINING RING S-16
91 FLAT WASHER 8
92 VISE PLATE
93 FLAT WASHER 6
95 RUBBER BLOCK
96 RUBBER CASE
97 INSULATION WASHER
98 WAVE WASHER 6
A01 SOCKET WRENCH 17
A02 14\'CUT-OFF WHEEL 5PCS
