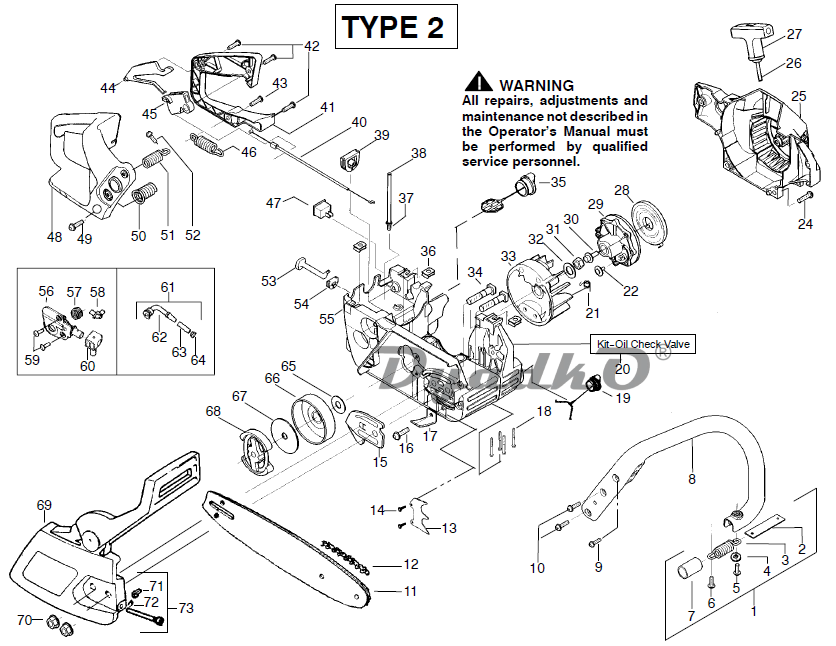

Схема MCCULLOCH Mac Cat 440 Корпус (Type 2)

1.	Assy.-Isolator
2.	Strap-Limiter
3.	Spring-Isolator
4.	Washer
5.	Screw
6.	Screw
7.	Sleeve-AV Spring
8.	Handle-Front
9.	Screw
10.	Screw
11.	Bar - 14”
12.	Chain 14”
13.	Kit-Assy Spike(incl.14)
14.	Screw
15.	Plate-Bar Mounting
16.	Screw
17.	Chain Catcher
18.	Screw
19.	Assy-Oil Cap
20.	Kit-Oil Check Valve
21.	Spring - Starter Dog
22.	Screw
23.	нет описания
24.	Screw
25.	Housing-Fan
26.	Kit-Rope
27.	Handle-Starter
28.	Spring-Recoil
29.	Pulley-Starter
30.	Screw
31.	Nut - Flywheel
32.	Washer - Flywheel
33.	Assy-Flywheel
34.	Bolt-Bar
35.	Assy-Fuel Cap
36.	Nut-”U”-Type
37.	Fitting-fuel line
38.	Kit- Fuel line (large)
39.	Grommet- Cable
40.	Cable-Throttle
41.	Cover-Rear Handle
42.	Screw
43.	Screw
44.	Lockout-Throttle
45.	Trigger-Throttle
46.	Spring
47.	Kit-Switch
48.	Handle - Rear
49.	Screw
50.	Assy. Isolator - lower
51.	Kit-Isolator (Upper)
52.	Screw
53.	Knob-Choke
54.	Grommet-Knob
55.	Assy-Chassis
56.	Kit—Oil Pump (Incls. 57,58,60)
57.	Gear-Worm Spring
58.	Elbow-Oil Pickup
59.	Screw
60.	Seal Block
61.	Assy-Oil Pickup (Ind. 62-64)
62.	Pick-up Oiler
63.	Filter-Oil
64.	Plug-Oil Filter
65.	Washer-Thrust
66.	Assy.-Clutch Drum w/bearing
67.	Washer-Clutch
68.	Assy. Clutch
69.	Assy-Chain Brake
70.	Nut- Bar Mounting
71.	Pin-Retainer
72.	Retainer
73.	Kit-Bar Adjust (incl. 71 & 72)
