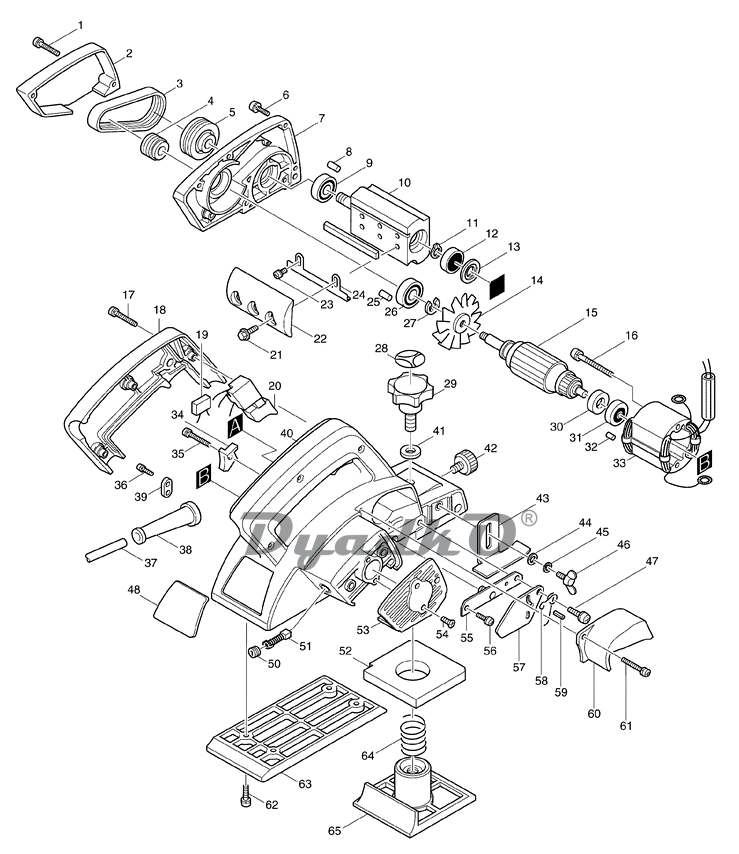

Схема MAKITA 1923B / N1923B


1 PAN HEAD SCREW M4X25
2 BELT COVER
3 POLY V-BELT 4-241
4 V-PULLEY 4-20L
5 V-PULLEY 4-37
6 PAN HEAD SCREW M4X20
7 BRACKET COMPLETE INC. 8,25
8 RUBBER PIN 4
9 BALL BEARING 6000ZZ
10 DRUM
11 RETAINING RING S-7
12 BALL BEARING 627LLB
13 BEARING RETAINER 7-21
14 FAN 52
15 ARMATURE ASS\'Y 220V INC. 14,26,27,30,31
16 PAN HEAD SCREW M4X60
17 PAN HEAD SCREW M4X28
18 HANDLE COVER
19 NOISE SUPPRESSOR
20 SWITCH SGES206C
21 HEX. FLANGE HEAD BOLT M6X17
22 DRUM PLATE SET (new)
22 DRUM PLATE (old)
23 + PAN HEAD SCREW M4X5
24 ADJUST PLATE
25 RUBBER PIN 4
26 BALL BEARING 6000LLB
27 STOP RING E-9
28 SCALE LABEL (new)
28 SCALE LABEL (old)
29 KNOB 46
30 INSULATION WASHER
31 BALL BEARING 627LB
33 Статор 220V (поставляется теперь с 1 клеммным кольцом, отдельно нужно заказывать клемму 654018-9, и соединительную втулку для крепления клеммы 654501-6)
34 BAFFLE PLATE
35 PAN HEAD SCREW M4X16
36 PAN HEAD SCREW M4X18
37 POWER SUPPLY CORD 1.0-2-2.5
38 CORD GUARD 8-85
39 STRAIN RELIEF
40 MAIN FRAME
41 FLAT WASHER 10
42 SCREW M5X10
43 DEPTH GUIDE
44 FLAT WASHER 5
45 SPRING WASHER 5
46 WING BOLT M5X10
47 + SCREW M5X25
48 NAME PLATE 1923B
50 BRUSH HOLDER CAP 5-8
51 CARBON BRUSH CB-51
52 RUBBER PACKING
53 REAR COVER
54 COUNTERSUNK HEAD SCREW M4X12
55 DRUM HOLDER
56 PAN HEAD SCREW M5X18
57 DRUM COVER
58 TORSION SPRING 10
59 SPRING PIN 3-10
60 CHIP COVER COMPLETE
61 PAN HEAD SCREW M4X16
62 PAN HEAD SCREW M5X18
63 BASE
64 COMPRESSION SPRING 18
65 FRONT BASE
400 T.C.T. MINI PLANER BLADE 82
401 GUIDE RULE (new)
401 GUIDE RULE (old)
411 SOCKET WRENCH 9
917 SLIDE PLATE
918 FLAT WASHER 5
920 SET PLATE F/MINI BLADE
