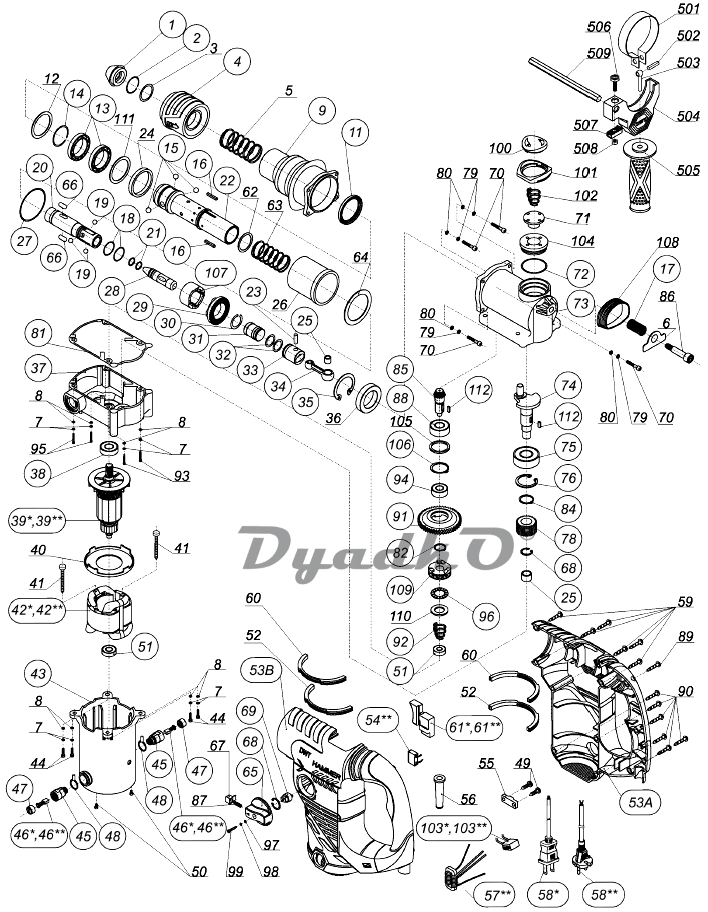

Схема DWT BH 1200 VS

1 Front cap
2 Circlip Ø28
3 Washer Ø28
4 Protection sleeve
5 Spring Ø40x50
6 Damping washer
7 Spring washer Ø5 (8)
8 Washer Ø5 (8)
9 Cylinder housing
11 Oil seal Ø40xØ49x6
12 Washer Ø55xØ45x1.5
13 Ball bearing 61808 (2)
14 Snap ring Ø40
15 Steel ball Ø9 (3)
16 Flat key 3x18 (2)
17 Damping spring Ø18x40
18 O ring Ø28x2 (2)
19 Steel ball Ø7.14 (3)
20 Guard ring sleeve
21 O ring Ø19x2 (2)
22 Cylinder
23 Piston pin
24 Ring Ø50xØ40x10
25 Needle bearing HK1012 (2)
26 Plastic bush Ø55xØ48x64
27 O ring Ø68x1,5
28 Second striker
29 Cone gear
30 Snap ring Ø32
31 Striker
32 O ring Ø28x3 (2)
33 Piston
34 Connecting rod
35 Circlip Ø50
36 Oil bearing
37 Gear housing
38 Ball bearing 6001.2Z
39* Armature 127V
39** Armature 230V
40 Guide wind circle
41 Screw ST5x55 (2)
42* Stator 127V
42** Stator 230V
43 Motor housing
44 Screw M5x20 (4)
45 Brush holder (2)
46* Carbon brush (2) 127V
46** Carbon brush (2) 230V
47 Brush cap (2)
48 Connection spring Ø16 (2)
49 Screw ST4x16 (4)
50 Screw M5x10 (2)
51 Ball bearing 608.2Z (2)
52 U Rubber gascet (2)
53A Housing A
53B Housing B VS
54** Co ndenser 0.22µF 230V
55 Cord clip
56 Rubber sleeve
57** Indu ctor 24x12x4 230V
58* Cord 127V
58** Cord 230V
59 Screw ST4x20 (6)
60 U Rubber gascet 2 (2)
61* Switch 127V
61** Switch 230V
62 Spring holder
63 Spring Ø44x56
64 Washer Ø62xØ48x3
65 Switch knob
66 Balling pole Ø8x19 (2)
67 Locating block
68 Circlip for hole Ø15 (2)
69 Knob grip
70 Hex.screw M5x25 (4)
71 Oil seal cap
72 O ring Ø45x1,5
73 Crank housing
74 Crank shaft
75 Ball bearing 6003.2Z
76 Circlip for hole Ø35
78 First gear
79 Spring washe r Ø4 (4)
80 Washer Ø4 (4)
81 Gasket
82 Circlip for shaft Ø15
84 Circlip Ø17
85 Third shaft gear
86 Damping bolt
87 Knob spring Ø5x25
88 Ball bearing 16003.2Z
89 Screw ST4x22
90 Screw ST4x18 (6)
91 Second gear
92 Cone spring A
93 Screw M5x45 (2)
94 Ball bearing 61902.2Z
95 Screw M5x35 (2)
96 Thrust needle bearing 2542
97 Washer Ø3
98 Spring washer Ø3
99 Screw M3x20
100 Oil seal cover
101 Oil seal holder
102 Cone spring B
103* VS wheel switch 127V
103** VS wheel switch 230V
104 Plastik holder
105 Location cover
106 Circlip for shaft Ø 28
107 Clutch bush
108 Damping bush
109 Clutch
110 Washer Ø42xØ25x1
111 Wash er Ø51xØ48x1.5
112 Flat key 4x14 (2)
501 Chuck ring
502 Elastic cylinder pin 6x20
503 Slipknot bolt M8x45
504 Handle clip
505 Side handle
506 Hex.head screw M6
507 Arresting lever fixed block
508 Nut M6
509 Depth rod
