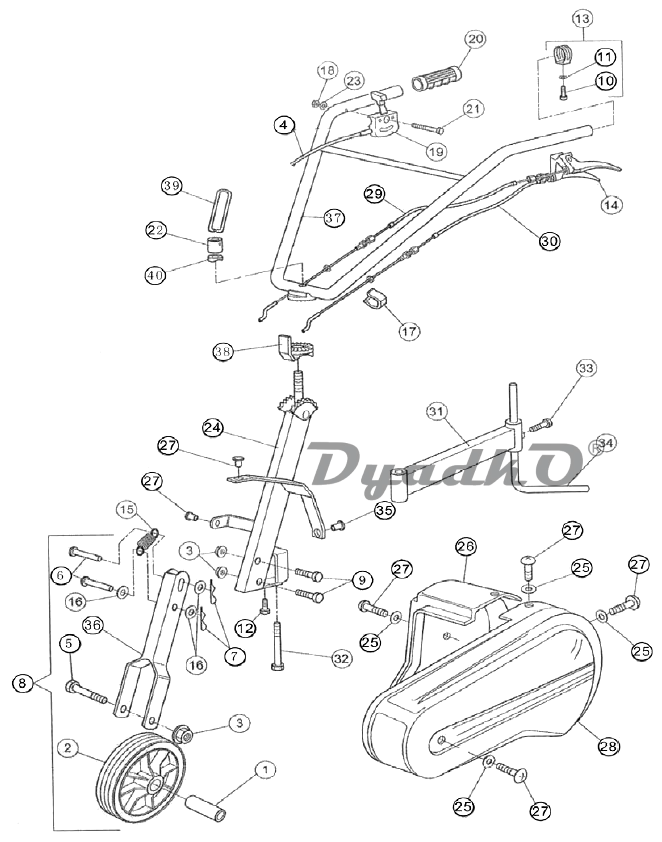

Схема (деталировка) культиваторы бензиновые и мотоблоки DDE V600 II-65HPR (Мустанг-2) Рама, Ручки. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Wheel bushing
2	Wheel
3	Hexagon nut with flange M10
4	Fuel valve cable corsp
5	Hexagon bolts M10X80
6	B Pin (pl0X50
7	P Pin q>2.5
8	Wheel assy
9	Hexagon head bolts M10X45
10	Hexagon head bolts M6X30
11	Hexagon head bolts M6
12	Hexagon head bolts M10X25
13	anchor ear assy
14	Clutch bar
15	Wheel spring
16	Washer tplO
17	Handle bar wire nail
18	Nut M6
19	Fuel valve adjusted corsp
20	Handle bar rubber
21	hexagon socket screw M6X45
22	lock sleeve
23	Washer (p6
24	Handle bar supportor weld assembly
25	Washer cp6
26	Hangle bar supportor decorating plate
27	Cross recessed round head screwsM6X20
28	Belt cover
29	Clutch cable
30	Reverse cable
31	Link frame
32	Hexagon head bolts M12X90
33	Hexagon head bolts M10X25
34	Drag bar
35	Cross recessed round head screwsM6X20
36	Wheel supportor
37	Handle bar weld assembly
38	Skief teeth (middle)
39	Round locking knob
40	Lock bar washer
