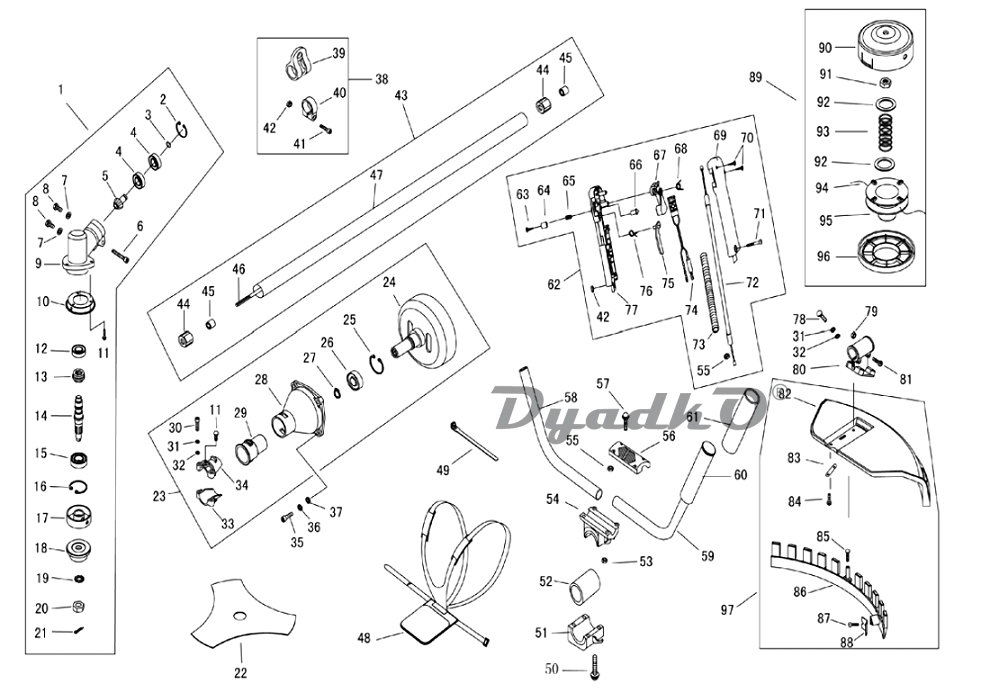

Схема CHAMPION (IGP) T 514 Штанга

2-1 gera case ass’y
2-2 stoD rinsr (026)
2-3 stop ring (010)
2-4 bearing(629-2RS)
2-5 pinion
2-6 screw (M5X 25)
2-7 washer
2-8 bolt (M6X12)
2-9 gear case
2-10 safetv ffuard
2-11 screw (M5X12)
2-12 bearing(6000/P5)
2-13 gear
2-14 gear shaft
2-15 bearing(6202-2RS/P5)
2-16 stop rins (032)
2-17 holder A
2-18 holder B
2-19 washer (010)
2-20 left nut (M10X 1.25)
2-21 Din (2X16)
2-22 blade(1.4X255X25. 4)
2-23 clutch comD
2-24 clutch drum comD
2-25 stop ring (035)
2-26 bearing(6202-2RS/P5)
2-27 stop rinsr (015)
2-28 clutch case
2-29 rubber cover
2-30 screw (M5X25)
2-31 flexible washer (05)
2-32 flap washer (05)
2-33 clamp B
2-34 clamp A
2-35 screw (M6X20)
2-36 flexible washer (06)
2-37 flap washer (06)
2-38 holder ass’v
2-39 harness clamp
2-40 clamp
2-41 screw (M5X20)
2-42 nut (M5)
2-43 pipe comp
2-44 rubber cover
2-45 oil-bearing(8X14X14)
2-46 drive shaft(1534mm)
2-47 pipe (26X1.5X1500)
2-48 harness ass’ v
2-49 wire clamp band
2-50 screw(M6 X 40)
2-51 cap, lower
2-52 rubber cover
2-53 nut (M6)
2-54 bracket
2-55 nut (M6)
2-56 caD. UDDer
2-57 screw (M6X 25)
2-58 rieht handle
2-59 left handle
2-60 rubber cover
2-61 sheath
2-62 lever ass’ v
2-63 screw (ST2. 9X10)
2-64 button
2-65 spring
2-66 clockpin
2-67 handgrip
2-68 spring
2-69 box, right
2-70 screw (ST2. 9X18)
2-71 screw(M5 X 30)
2-72 cable comp
2-73 tube
2-74 stop button comp
2-75 hardgrop
2-76 spring
2-77 box. left
2-78 screw (M5X 14)
2-79 nut(M5)
2-80 bracket
2-81 screw (M5X20)
2-82 safety guard
2-83 spacer
2-84 screw (M5X 16)
2-85 screw (ST4. 2X16)
2-86 blade
2-87 screw (ST4. 2X12)
2-88 guard ass’ v
2-89 nylon cutter head
2-90 case
2-91 left nut A
2-92 washer
2-93 spring
2-94 rope
2-95 cord holder
2-96 cover
2-97 Harness Ass’ y
