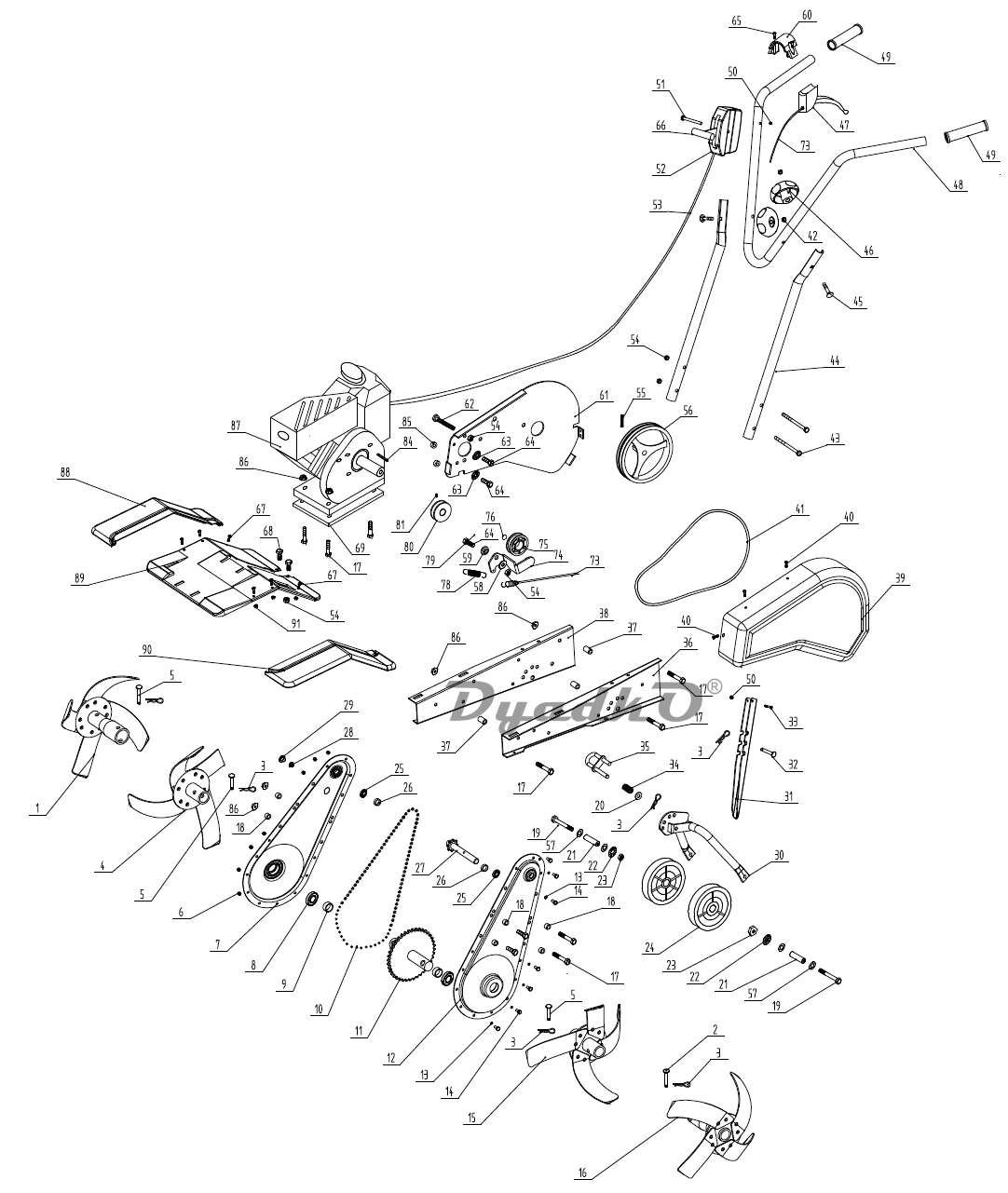

Схема TEXAS Lilli 530 (40053094100) 2013

1	KNIFE ROTOR
3	COTTER BOLT 2,5MM
4	KNIFE ROTOR
5	COTTER BOLT 10X64
6	COLLAR NUT M6
7	GEAR PART
8	BEARING 6206
9	BUSHING
10	CHAIN 1/2\"-80 08-B
11	OUTPUT SHAFT
12	GEAR PART
13	WASHER 6
14	COLLAR BOLT M6X14
15	KNIFE ROTOR
16	KNIFE ROTOR
17	SET BOLT M8X40
18	BUSHING
19	STEEL BOLT M10X60 FZ
20	WASHER 10
21	WHEEL GLAND Ø15
22	EXTERNAL TEETH LOCK WASHER 10
23	SELF-LOCKING NUT M10
24	WHEEL
25	LEJE 6003
26	BUSHING
27	INPUT SHAFT
28	BUSHING
29	OIL PLUG
30	WHEEL CLAMP
31	DEBTH SKID HÅNDTAG:414139.
32	COTTER BOLT 10X40
33	BOLT 6X30
34	SPRING
35	LOCK
36	VANGE VENSTRE
37	BUSHING
38	BED
39	SIDESKÆRM
40	PLATE SCREW
41	V-BELT 13X1050 - 085
42	NUT 8
43	BOLT 8X120
44	GUIDE TUBE
45	CARRIAGE BOLT M8X60 FZ
46	KNOB M8
47	CLUTCH HANDLE
48	HANDLE UPPER
49	HANDLE
50	STEEL NUT M6
51	BOLT
52	THROTTLE
53	THROTTLE CABLE
54	COLLAR NUT M8
55	PIN 6X30
56	IDLE PULLEY
57	SKIVE 10X30X2
58	FACE PLATE M24X8.4X2 FZ
59	BUSHING
60	KOBLINGSHOLDER
61	CONSONLE
62	BOLT 8X60
63	TOOTHED DISC M8 FZ
64	STEEL BOLT 8X25
65	SCREW 5X16
66	HANDLE
67	ALLEN BOLT M5X12
68	BOLT 8X16
69	GUMMIDÆMPER
73	CLUTCH CABLE
74	LEVER
75	TENSION ROLL Ø65 - PK
76	CIRCLIP FOR SHAFT 10
78	RETURN SPRING
80	BELT PULLEY A53-1-3/4\"
81	TAILSTOCK SCREW M8X10
84	KEY M5X4,74X50
85	BØS
86	COLLAR NUT M8
87	POWERLINE TG620
88	GUARD
89	KNIFE GUARD
90	GUARD
91	LOCKING NUT
