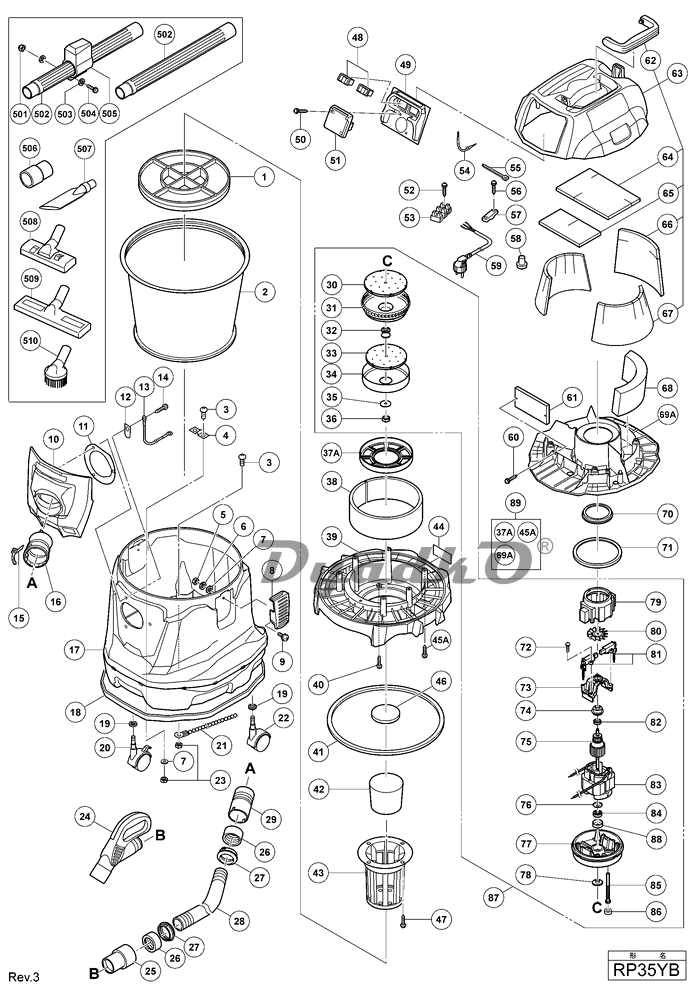

Схема HITACHI RP35YB

1 FILTER CAGE
2 DRY DUST FILTER
3 Шуруп крепежный М 4 Х 10 (10шт) \\ MACHINE SCREW M4X10 (10 PCS.)
4 WIRE HOLDER
5 HEX. CAP NUT M4
6 Пружинная шайба. М4. 10 шт. \\ SPRING WASHER M4 (10 PCS.)
7 Шайба металлическая М4. 10 шт. \\ WASHER M4 (10 PCS.)
8A CLAMP
9 Фиксирующий шуруп М4Х12 \\ MACHINE SCREW M4X12 (10 PCS.)
10 JOINT COVER (B)
11 JOINT COVER PACKING
12A EARTH PLATE (B)
13 INTERNAL WIRE (D)
14 Фиксирующий шуруп Д4Х16 \\ TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
15 HOSE STOPPER
16 HOSE JOINT
17 TANK (PLS)
18 BUMPER (A)
19 Шайба. М8. 10 шт. \\ BOLT WASHER M8 (10 PCS.)
20 CASTER D50 (W/STOPPER)
21 EARTH CHAIN
22 CASTER D50
23 Гайка. М4. 10 шт. \\ NUT M4 (10 PCS.)
24 JOINT HANDLE
25 SLEEVE (B) ID38
26 SCREW RING
27 CLICK RING
28 HOSE ASS\'Y ID38 (INCLUD.25-27.29)
29 SLEEVE (A) ID38
30 FAN (A)
31 CASING (A)
32 SPACER
33 FAN (B)
34 CASING (B)
35 SPECIAL WASHER
36 Фиксирующая гайка М8. 10 шт. \\ LOCK NUT M8 (10 PCS.)
37A SUPPORT RING (B) (SINCE 4.2012)
38 MOTOR BASE FILTER
39 MOTOR BASE
40 Фиксирующий шуруп Д4Х16 \\ TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
41 MOTOR BASE PACKING
42 FLOAT
43 FLOAT HOLDER
44 NAME PLATE \\ NAME PLATE
45A Винт D4X25 сталь для сабельной пилы CR13VA \\ TAPPING SCREW (W/FLANGE) D4X25 (BLACK) (SINCE 4.2012)
46 MOTOR FILTER
47 SCREW (PLASTIC TIE) D4X16
48 SWITCH (B)
49 SWITCH HOLDER
50 Стальной винт D3X16 для аккум.шуруповерта DS12DVF \\ TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
51 RECEPTACLE
52 Фиксирующий шуруп D4X20 \\ TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
53 TERMINAL PLATE
54 INTERNAL WIRE (E)
55 Зажим \\ CABLE TIE
56 Фиксирующий шуруп Д4Х20 \\ TAPPING SCREW (W/FLANGE) D4X20
57 CORD CLIP
58 Зажимные контакты проводов (10шт) \\ CONNECTOR 50092 (10 PCS.)
59 CORD
60 TAPPING SCREW (W/FLANGE) D4X10 (BLACK)
61 PCB FERRITE
62 HANDLE
63 HEAD COVER ASS\'Y (INCLUD.62.64-67)
64 HEAD COVER PACKING (C)
65 HEAD COVER PACKING (D)
66 HEAD COVER PACKING (B)
67 HEAD COVER PACKING (A)
68 MOTOR COVER PACKING (B)
69A MOTOR COVER (SINCE 4.2012)
70 SUPPORT RING (A)
71 MOTOR PACKING
72 Шуруп крепежный M4X14 (10 PCS) \\ MACHINE SCREW M4X14 (10 PCS.)
73 MOTOR FRAME
74 BEARING HOLDER (A)
75 ARMATURE 230V
76 PRESS PLATE
77 MOTOR BASE
78 FLANGE WASHER
79 FAN COVER
80 COOLING FAN
81 CARBON BRUSH (1 PAIR)
82 BALL BEARING 607Z
83 STATOR 230V
84 BALL BEARING 608RS
85 BOLT M5X70
86 RUBBER SPACER
87 MOTOR ASS\'Y (INCLUD.30-36.72-86.88)
88 BEARING HOLDER (B)
89 MOTOR COVER SET (INCLUD.37A.45A.69A TILL 3.2012)
501 HEX. CAP NUT M5 (BLACK)
502 EXTENSION PIPE
503 Шайба . М5. 10 шт. \\ BOLT WASHER M5 (10 PCS.)
504 Фиксирующий шуруп М5Х25 \\ MACHINE SCREW M5X25 (BLACK)
505 PIPE HOLDER
506 Адаптер \\ ADAPTER
507 NOZZLE
508 NOZZLE FOR FLUID
509 WET NOZZLE
510 BRUSH
601 PAPER DUSTBAG SET (5 PCS.)
602 WET AND DRY FILTER
Принадлежности OPTIONAL \\ OPTIONAL ACCESSORIES
Принадлежности STANDARD \\ STANDARD ACCESSORIES
