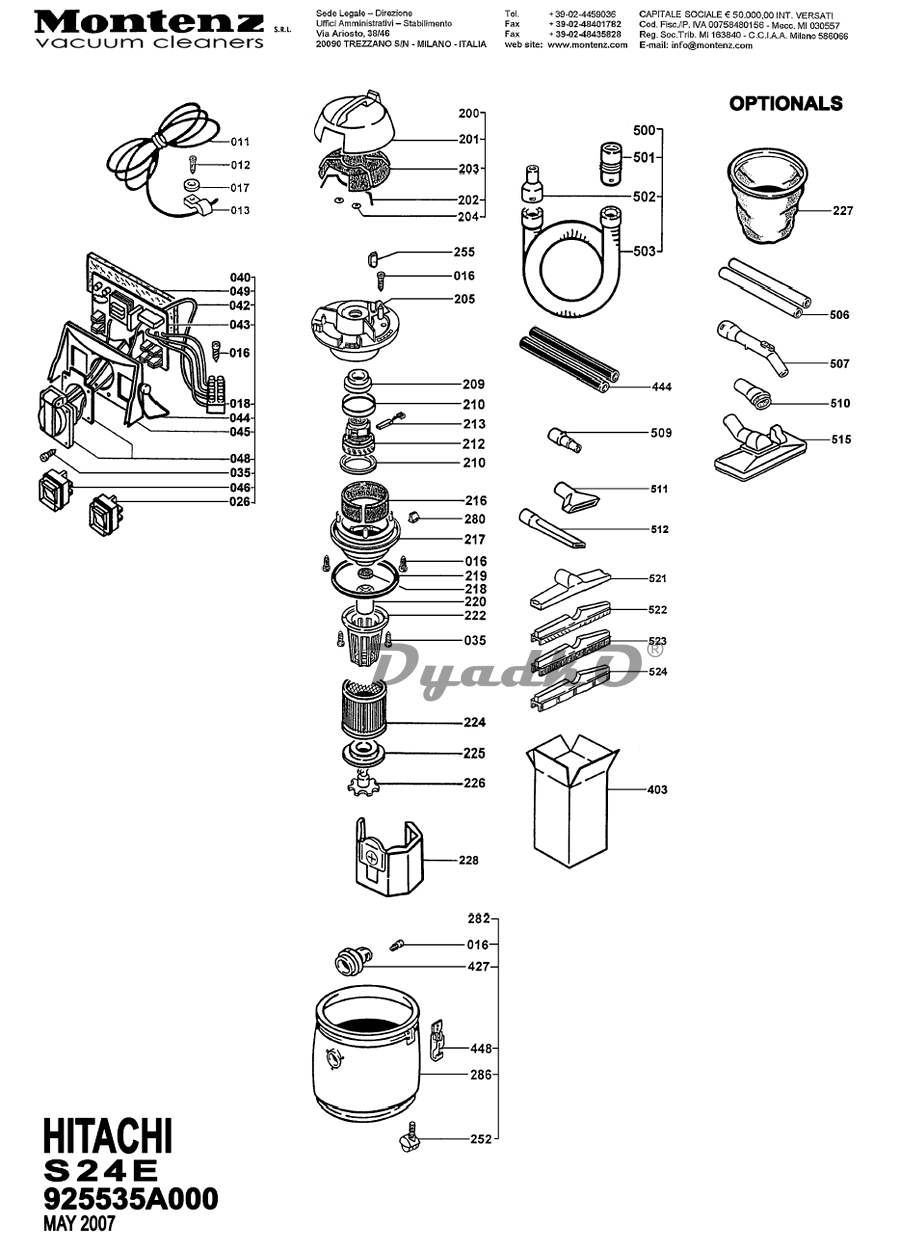

Схема HITACHI S24E

000 EXPL.SCHEME HIT.S24E NL
011 CABLE 3G1,50 MT.8,0
012 SCREW 4,8x19 DIN 7981
013 WIRE FIXER
016 SCREW 3.5x19 DIN 7981
017 WASHER D.5x11x1
018 TERMINAL PA44/4
026 SWITCH 0/1 WD
035 SCREW 3.5X16 DIN 7982
040 AUTOMAT.MASK SET wd D
042 CABLE L190 AX HEARTH
043 AUT.SWITCH.CAT101-220/240v
044 O-RING OR3400
045 AUTOMATIC MASK wdVE45
046 SWITCH A/M WD
048 SOCKET 2P+H 16A/250V VDE
079 ELECTRONIC P.C.PROTECTION
200 COVER+HANDLE+SOUND PROOF.
202 COVER GASKET WD d3
203 COVER SOUND PROOF. WD 3 PC
204 QUICK FAST for pin D5
205 COVER WITH BAFFLE VE45
209 MOTOR GASKET 219/221/312B
210 CHAMBER MOTOR GASKET bWD
212 MOTOR 2A219 230V
213 BRUSH 219-203-312-221-342
216 MOTOR SOUND PROOFING WD
217 MOTOR COVER VE45
218 MOTOR FILTRE WD
219 VAT GASKET wd
220 BALL-COCK
222 BALL-COCK CRATE GS13
224 CARTRIDGE FILTER SET WD
225 FILTER BRACKET wdGS13
226 FILTER KNOB wdGS13
227 CLOTH-DRY DUST FILTER WD
228 PAPER DUST BAG FOR WD-BIA
252 SWIVEL WHEEL D45/45
252 SWIVEL WHEEL D45/45
255 PLUG P.P. WD
279 BUMPER SEM NE15
280 BULKHEAD WD
285 VAT 24 ASSY GCGC
286 VAT 24 GC30
403 PACKING 24 390x390x520
427 HOSE UNION ASSY GC30
444 EXTENSION TUBE plast.
448 HINGE ASSY sm GC30
496 HEPA CARTRIDGE SET 0,3M
500 HOSE ASSY D36 Mt.1.7 wd
501 HOSE END-VACUUM D36 GS13
502 HOSE END-TOOL D36 wdGS13
503 HOSE L D36 Mt.1.70
503 HOSE PS D36 MT.1.70
506 PLATED STEEL EXT.TUBE D36
507 HANDLE SM-SH
509 JOINT BY STEP
510 BRUSH D36/37
511 UPHOLSTERY NOZZLE D36/37
512 CREVICE NOZZLE D36/37
515 PEDAL BRUSH
521 NOZZLE-BODY D36/37
522 CARPET FRAME GS13
523 FLOOR FRAME GS13
524 FLUID FRAME GS13
600 HOSE SET D58 MT1.5 WD
601 HOSE END-VACUUM D58 GS13
602 HOSE END-TOOL D58 GS13
604 EXTENSION TUBE D58 GS13
605 ADAPTATION 58/36 GS13
606 CREVICE NOZZLE D58 GS13
607 UPHOSTERY NOZZLE D58 GS13
