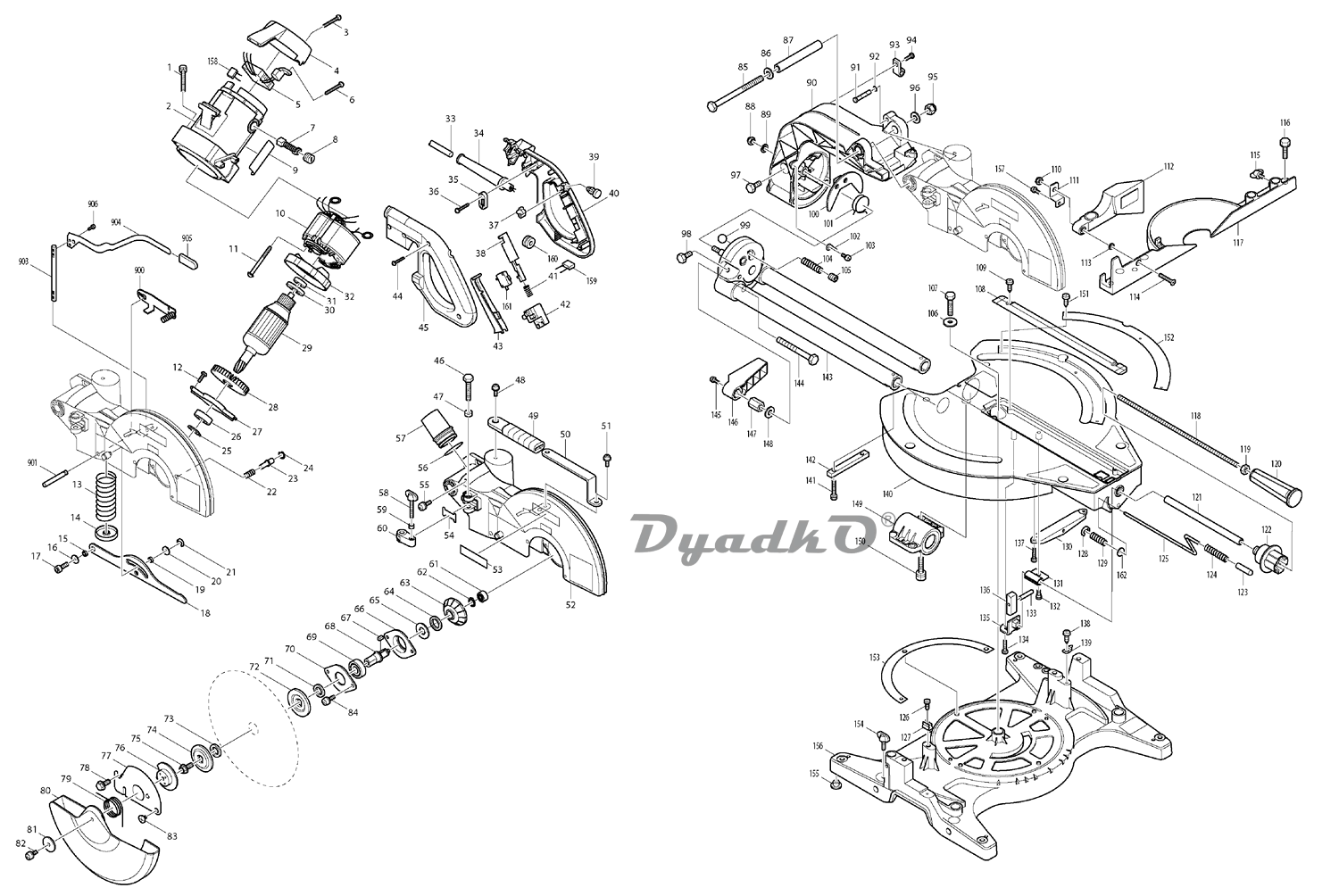

Схема MAKITA LS 1013 LS 1013

1 PAN HEAD SCREW M6X50
2 MOTOR HOUSING COMPLETE
3 TAPPING SCREW 4X18
4 REAR COVER
5 CONTROLLER
6 TAPPING SCREW 4X18
7 CARBON BRUSH CB-153
8 BRUSH HOLDER CAP 6.5-13.5
9 NAME PLATE LS1013
10 FIELD ASS\'Y 220V
11 TAPPING SCREW 5X65
12 PAN HEAD SCREW M5X16
13 COMPRESSION SPRING 28
14 SPRING HOLDER
15 RING 6
16 FLAT WASHER 6
17 HEX. SOCKET HEAD BOLT M6X20
18 LINK PLATE
19 RING 6
20 FLAT WASHER 6
21 STOP RING E-5
22 COMPRESSION SPRING 7
23 PIN 6
24 RING SPRING 8
25 RETAINING RING S-17
26 BALL BEARING 6003DDW
27 BEARING RETAINER 94
28 FAN 80
29 ARMATURE ASS\'Y 220V INC. 28,30,31
30 INSULATION WASHER
31 BALL BEARING 6000LLB
32 BAFFLE PLATE
33 POWER SUPPLY CORD 1.0-2-2.5
34 CORD GUARD 9.3-90
35 STRAIN RELIEF
36 TAPPING SCREW 4X18
37 CAM
38 LOCK OFF LEVER
39 SWITCH BUTTON
40 HANDLE SET INC. 45
41 COMPRESSION SPRING 3
42 SWITCH TG70B
43 SWITCH LEVER
44 TAPPING SCREW 4X18
45 HANDLE SET INC. 40
46 HEX. BOLT M8X45
47 RUBBER RING 6
48 PAN HEAD SCREW M6X16
49 GRIP
50 GRIP HOLDER
51 PAN HEAD SCREW M6X16
52 BLADE CASE SET (new)
52 BLADE CASE COMPLETE (old)
53 MAKITA LOGO LABEL (new)
53 MAKITA MARK (old)
54 STOPPER ARM PLATE
55 PAN HEAD SCREW M4X10
56 O RING 35
57 DUST NOZZLE
58 SCREW M6X43
59 URETHANE RING 5
60 STOPPER ARM
61 BALL BEARING 607LLB
62 RETAINING RING S-14
63 SPIRAL BEVEL GEAR 33
64 RUBBER RING 20
65 FLAT WASHER 14
66 BEARING BOX (A)
67 KEY 4
68 SPINDLE
69 BALL BEARING 6003DDW
70 BEARING RETAINER 66
71 RING 16
72 FLANGE 53
73 RING 16
74 FLANGE 53
75 HEX. FLANGE HEAD BOLT M8X20
76 CENTER PLATE
77 CENTER COVER
78 HEX. FLANGE HEAD BOLT M8X12
79 TORSION SPRING 36
80 SAFETY COVER
81 FLAT WASHER 5
82 PAN HEAD SCREW M5X12
83 + FLAT HEAD SCREW M5
84 PAN HEAD SCREW M5X16
87 PIN 16-113 (new)
87 PIN 16-113 (old)
88 HEX. LOCK NUT M8-13
89 FLAT WASHER 8
90 ARM
91 STOPPER PIN
92 O RING 5
93 STRAIN RELIEF
94 TAPPING SCREW BIND CT 4X12
97 HEX. BOLT M8X28
98 HEX. BOLT M8X20
99 STEEL BALL 10
100 GUIDE PLATE
101 TORSION SPRING 28
102 INDICATION PLATE
103 PAN HEAD SCREW M4X10
104 COMPRESSION SPRING 5
105 H.S.SET SCREW(FLATPOINT)M12X12
106 FLAT WASHER 8
107 HEX. BOLT M8X40
108 KERF BOARD
109 TAPPING SCREW BIND CT 4X12
110 HEX. LOCK NUT M6-10
111 SUB FENCE PLATE
112 SUB FENCE COMPLETE
113 FLAT WASHER 6
114 COUNTERSUNK HEAD SCREW M6X35
115 SCREW M6X10
116 HEX. BOLT M8X30
117 GUIDE RULE
118 SCREW M8X320
119 HEX. NUT M8
120 GRIP 40
121 PIN 9-200 (new)
121 PIN 9-200 (old)
122 KNOB 48 COMPLETE
123 CAP 10
124 COIL SPRING
125 LOCK PIN
126 TAPPING SCREW CT 4X16
127 LEAF SPRING
128 STOP RING E-5
129 COMPRESSION SPRING 6
130 PIN HOLDER
131 SLIDE STOPPER
132 + PAN HEAD SCREW M6
133 PIN 5
134 TAPPING SCREW CT 4X16
135 STOPPER HOLDER
136 TURN STOPPER
137 TAPPING SCREW CT 4X16
138 TAPPING SCREW BIND CT 4X12
139 POINTER
140 TURN BASE COMPLETE
141 HEX. BOLT M6X35
142 SQUARE ROD COMPLETE
143 ARM HOLDER COMPLETE
144 HEX. BOLT M10X90
145 PAN HEAD SCREW M4X10
146 LEVER 100
147 HEX. NUT M10-17
148 FLAT WASHER 10
149 BEARING BOX B COMPLETE
150 HEX. SOCKET HEAD BOLT M8X30
151 TAPPING SCREW BIND CT 4X12
152 MITER SCALE PLATE
153 SLIDE PLATE
154 SCREW M6X10
155 CAP 20
156 BASE COMPLETE
157 PAN HEAD SCREW M4X8
158 NOISE SUPPRESSOR
159 NOISE SUPPRESSOR
160 LINE FILTER
161 SWITCH V-15-2A5
162 FLAT WASHER 6
163 FLAT WASHER 8
164 COMPRESSION SPRING 5
165 KNOB 20
166 H.S.SET SCREW(FLAT POINT)M6X10
900 LOCK PLATE
901 LOCK PIN 8
903 ROD 8
904 LOCK LEVER (new)
904 LOCK LEVER (old)
905 CAP
906 HEX. SOCKET HEAD BOLT M4X8 (new)
906 PAN HEAD SCREW M4X10 (old)
907 PAN HEAD SCREW M4X10
A01 TRIANGULAR RULE
A02 SOCKET WRENCH 13
A03 DUST BAG ASS\'Y
A04 SWITCH BUTTON
A05 HOLDER 255
A06 SCREW M6X10
A07 VISE ROD
A08 KNOB 40
A09 VISE ASS\'Y INC. A06-A08,A10-A12
A10 FLAT WASHER 6
A11 VISE PLATE
A12 + PAN HEAD SCREW M5
A13 KERF BLOCK COMPLETE
A14 + SCREW M4X12
E01 CHOKE COIL
E02 CHOKE COIL
E06 TORSION SPRING 8
E20 TCT SAW BLADE 260X30X70T
E24 SUB FENCE R COMPLETE
E27 CAP
E28 STOPPER
E29 TAPPING SCREW 4X30
E30 ROD HOLDER
E31 STOP RING E-6
E32 GUARD PLATE
E33 GUARD
E34 PAN HEAD SCREW M4X10
E37 SCREW M6X10
