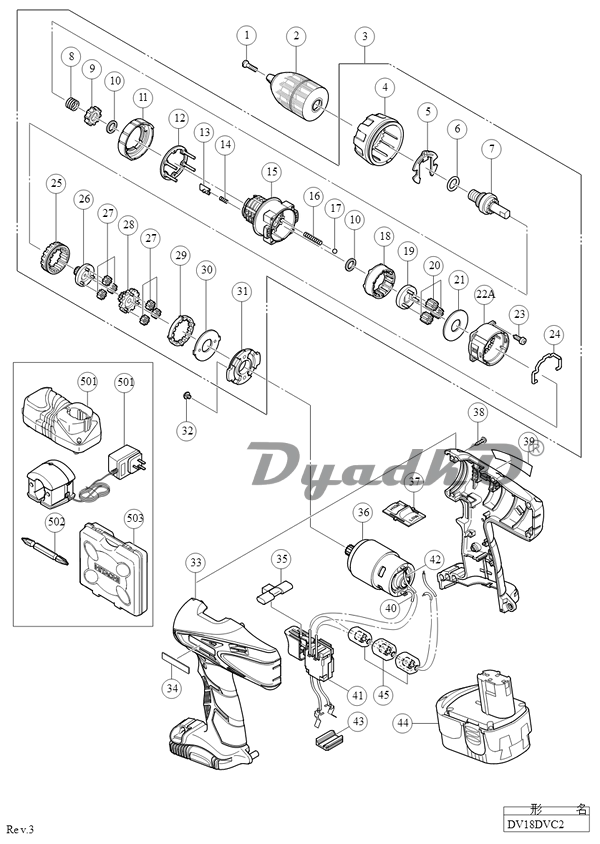

Схема (деталировка) шуруповёрты HITACHI DV18DVC2 DV18DVC2 (rev.3). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	FLAT HD. SCREW (A) (LEFT HAND) M6X25
3	GEAR BOX ASS\'Y (INCLUD.4-31)
4	CLUTCH DIAL
5	CLICK SPRING
6	O-RING
7	SPINDLE
8	SPRING (C)
9	RATCHET (B)
10	WASHER (A)
11	NUT
12	WASHER
13	SLIP BLOCK
14	STOPPER SPRING
15	FRONT CASE
16	SPRING (A)
17	STEEL BALL D5
18	RING GEAR
19	CARRIER
20	PLANET GEAR (C) SET (3 PCS.)
21	WASHER (A)
22A	REAR CASE
23	SCREW SET D3X12 (4 PCS.)
24	SHIFT ARM
25	SLIDE RING GEAR
26	PINION (C)
27	PLANET GEAR (A) SET (6 PCS.)
28	PINION (B)
29	FIRST RING GEAR
30	WASHER (B)
31	MOTOR SPACER
32	MACHINE SCREW (W/SP. WASHER) M4X6
34	HITACHI LABEL
35	PUSHING BUTTON
36	MOTOR DC 18V
37	SHIFT KNOB
38	TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
39	NAME PLATE
40	INTERNAL WIRE (BLACK) 130L (EXCEPT FOR EUROPE (TILL 2.2012 FOR EUROPE))
41	SWITCH TERMINAL SET
42	INTERNAL WIRE (RED) 140L (EXCEPT FOR EUROPE (TILL 2.2012 FOR EUROPE))
43	TERMINAL SUPPORT (A)
45	INTERNAL WIRE FERRITE SET (SINCE 3.2012 FOR EUROPE)
501	CHARGER (MODEL UC 18YK)
501	CHARGER (MODEL UC 18SF)
502	+ DRIVER BIT NO.2 65L
503	CASE (BLACK)
* 44	BATTERY BCC 1812 (USA)
* 44	BATTERY BCC 1812 (EUROPE,AUS,NZL) (FOR GBR)
* 44	BATTERY BCC 1812 (EUROPE,AUS,NZL)
	Принадлежности STANDARD \\ STANDARD ACCESSORIES
* 33	HOUSING (A).(B) SET (GREEN) (FOR USA,CAN)
* 33	HOUSING (A).(B) SET (GREEN)
* 2	DRILL CHUCK 13VLRS-N
* 2	DRILL CHUCK 13VLRJ-N (W/O CHUCK WRENCH) (FOR USA,CAN)
