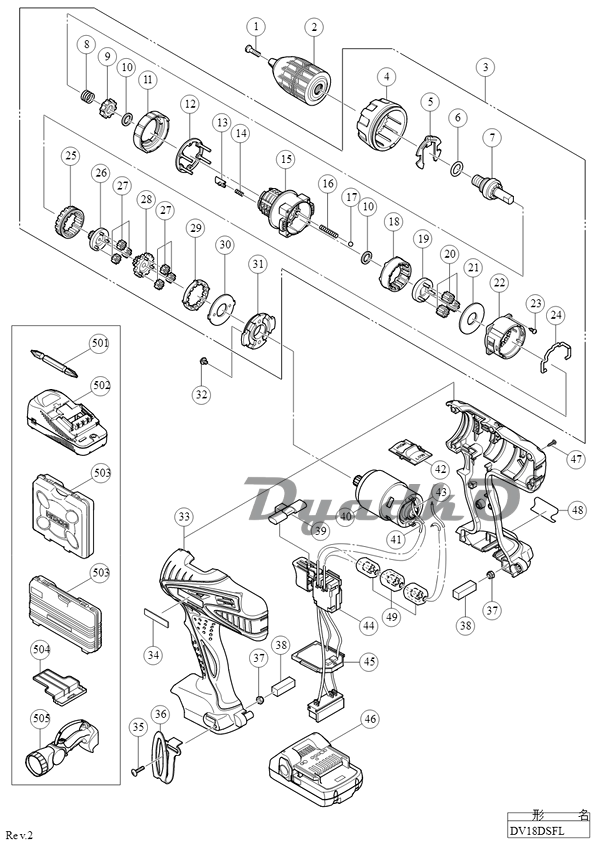

Схема HITACHI DV18DSFL DV18DSFL (rev.2)

1 FLAT HD. SCREW (A) (LEFT HAND) M6X25
3 GEAR BOX ASS\'Y (INCLUD.4-31)
4 CLUTCH DIAL
5 CLICK SPRING
6 O-RING
7 SPINDLE
8 SPRING (C)
9 RATCHET (B)
10 WASHER (A)
11 NUT
12 WASHER
13 SLIP BLOCK
14 STOPPER SPRING
15 FRONT CASE
16 SPRING (A)
17 STEEL BALL D5
18 RING GEAR
19 CARRIER
20 PLANET GEAR (C) SET (3 PCS.)
21 WASHER (A)
22 REAR CASE
23 SCREW SET D3X12 (4 PCS.)
24 SHIFT ARM
25 SLIDE RING GEAR
26 PINION (C)
27 PLANET GEAR (A) SET (6 PCS.)
28 PINION (B)
29 FIRST RING GEAR
30 WASHER (B)
31 MOTOR SPACER
32 MACHINE SCREW (W/SP. WASHER) M4X6
34 HITACHI LABEL
35 TRUSS HD. SCREW M4 (BLACK)
36 HOOK
37 LOCK NUT M4 (BLACK)
38 PACKING
39 PUSHING BUTTON
40 MOTOR DC 18V
41 INTERNAL WIRE (BLACK) 130L (EXCEPT FOR EUROPE (TILL 2.2012 FOR EUROPE))
42 SHIFT KNOB
43 INTERNAL WIRE (RED) 140L (EXCEPT FOR EUROPE (TILL 2.2012 FOR EUROPE))
44 DC-SPEED CONTROL SWITCH
45 CONTROLLER TERMINAL SET
47 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
48 NAME PLATE
49 INTERNAL WIRE FERRITE SET (SINCE 3.2012 FOR EUROPE)
501 + DRIVER BIT NO.2 65L
502 CHARGER (MODEL UC 18YGSL)
504 BATTERY COVER
505 TORCHLIGHT (MODEL UB 18DAL) (FOR USA,CAN)
601 - DRIVER BIT (A) 3MMX70L
602 - DRIVER BIT (A) 4MMX70L
603 - DRIVER BIT (A) 6MMX70L
604 + DRIVER BIT NO.1 65L
605 + DRIVER BIT NO.3 65L
* 46 BATTERY BSL 1815 (USA,CAN) (INCLUD.504)
* 2 DRILL CHUCK 13VLRS-N
* 33 HOUSING (A).(B) SET
* 33 HOUSING (A).(B) SET (FOR USA,CAN)
* 46 BATTERY BSL 1815 (EUROPE) (INCLUD.504)
* 2 DRILL CHUCK 13VLRJ-N (W/O CHUCK WRENCH) (FOR USA,CAN)
Принадлежности STANDARD \\ STANDARD ACCESSORIES
* 503 CASE (BLACK)
* 503 CASE (FOR TORCHLIGHT)
Принадлежности OPTIONAL \\ OPTIONAL ACCESSORIES
