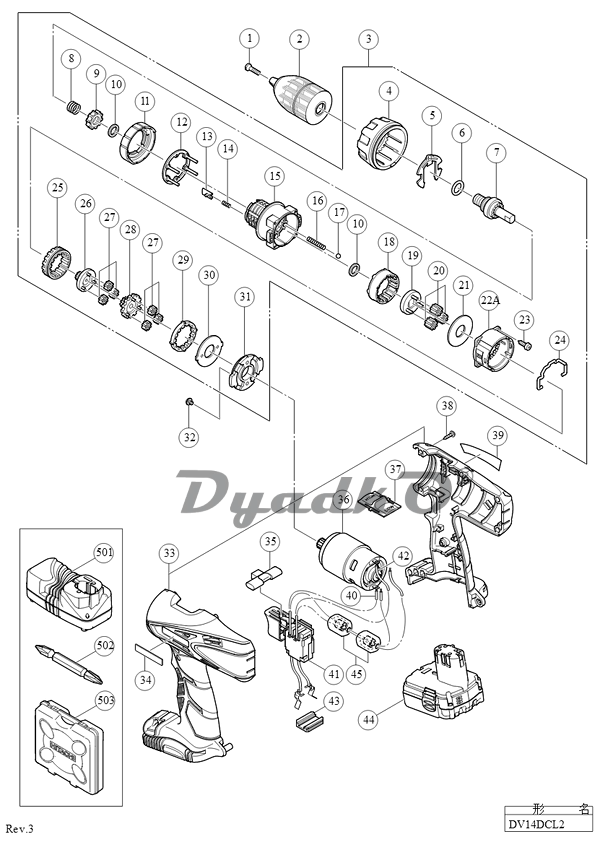

Схема (деталировка) шуруповёрты HITACHI DV14DCL2 DV14DCL2 (rev.3). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	FLAT HD. SCREW (A) (LEFT HAND) M6X25
2	DRILL CHUCK 13VLRS-N
3	GEAR BOX ASS\'Y (INCLUD.4-31)
4	CLUTCH DIAL
5	CLICK SPRING
6	O-RING
7	SPINDLE
8	SPRING (C)
9	RATCHET (B)
10	WASHER (A)
11	NUT
12	WASHER
13	SLIP BLOCK
14	STOPPER SPRING
15	FRONT CASE
16	SPRING (A)
17	STEEL BALL D5
18	RING GEAR
19	CARRIER
20	PLANET GEAR (C) SET (3 PCS.)
21	WASHER (A)
22A	REAR CASE
23	SCREW SET D3X12 (4 PCS.)
24	SHIFT ARM
25	SLIDE RING GEAR
26	PINION (C)
27	PLANET GEAR (A) SET (6 PCS.)
28	PINION (B)
29	FIRST RING GEAR
30	WASHER (B)
31	MOTOR SPACER
32	MACHINE SCREW (W/SP. WASHER) M4X6
33	HOUSING (A).(B) SET (GREEN)
34	HITACHI LABEL
35	PUSHING BUTTON
36	MOTOR DC 14.4V
37	SHIFT KNOB
38	TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
39	NAME PLATE
40	INTERNAL WIRE (BLACK) 130L (EXCEPT FOR EUROPE (TILL 2.2012 FOR EUROPE))
41	SWITCH TERMINAL SET
42	INTERNAL WIRE (RED) 140L (EXCEPT FOR EUROPE (TILL 2.2012 FOR EUROPE))
43	TERMINAL SUPPORT (A)
44	BATTERY BCL 1415 (EUROPE,AUS,NZL)
45	INTERNAL WIRE FERRITE SET (SINCE 3.2012 FOR EUROPE)
501	CHARGER (MODEL UC 18YKL)
502	+ DRIVER BIT NO.2 65L
503	CASE (BLACK)
	Принадлежности STANDARD \\ STANDARD ACCESSORIES
