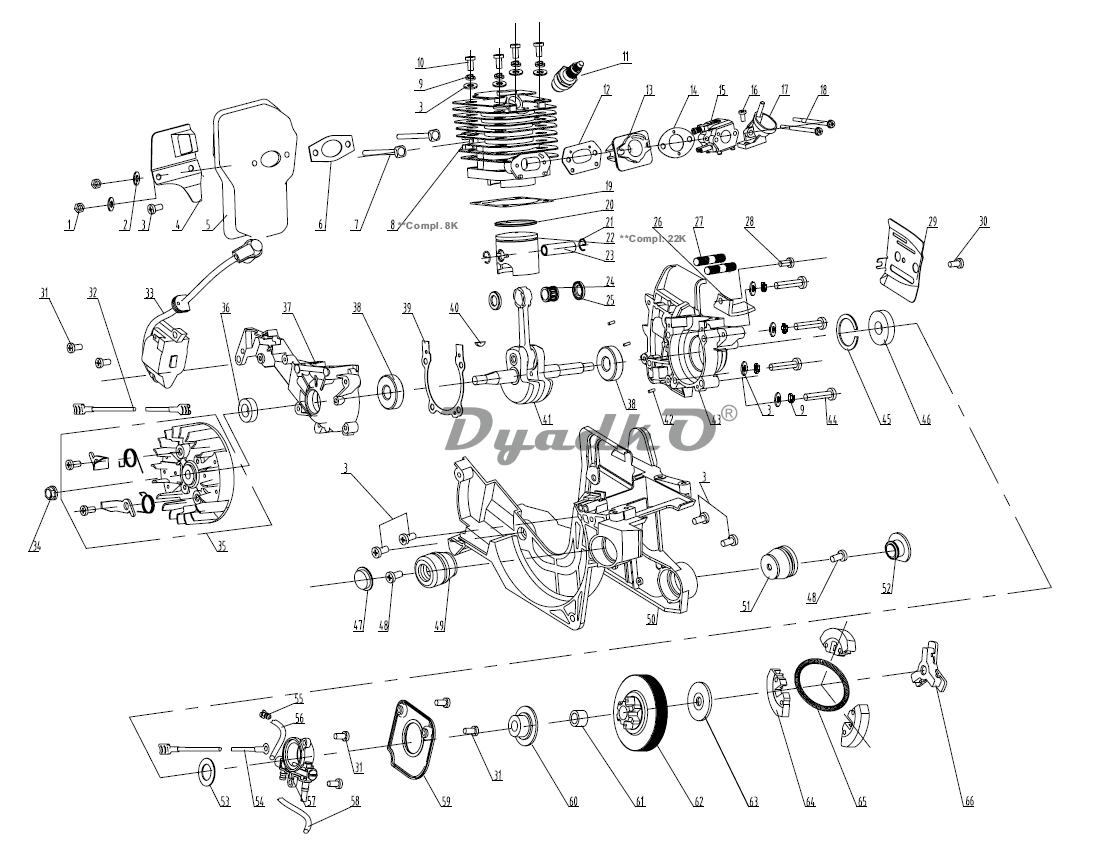

Схема (деталировка) пилы цепные бензиновые CHAMPION (IGP) 137-16 Двигатель 137/142. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1-66	Wedge Bracket
1-2	Washer
1-3	Screw M5*14
1-4	Plate
1-5	Silencer
1-6	Gasket
1-7	Bolt
1-8	Cylinder 137
1-8	Cylinder 142
1-63	Plate
1-64	dutch Wedge
1-65	Sprhg
1-1	Nut M5
1-9	Spring Washer
1-10	Screw M5*20
1-11	Spark Plug
1-12	Gasket
1-13	Intake
1-14	Gasket
1-15	Carburetor
1-16	ST Screw 4.8*16
1-17	Manifold
1-18	Bolt
1-19	Gasket
1-20	Piston Rhg 137
1-20	Piston Ring 142
1-21	Snap Ring
1-22	Piston 137
1-22	Piston 142
1-23	Piston Ph
1-24	Needle Bearing
1-25	Washer
1-26	Chain Catcher
1-27	Stud
1-28	Srcew M5*30
1-29	Plate
1-30	Screw M4*10
1-31	Screw M4*14
1-32	Wre
1-33	Igniter
1-34	Nut
1-35	Rywheel Assy
1-36	Oil Seal
1-37	Left Crankcase
1-38	Bearhg
1-39	Gasket
1-40	Key
1-41	Shaft Assy
1-42	Pin
1-43	Right Crankcase
1-44	Screw M5*30
1-45	Snap Ring
1-46	Oil Seal
1-47	cap
1-48	St Screw
1-49	Damper
1-50	Engine Case
1-51	Damper
1-52	cap
1-53	Washer
1-54	Wire
1-55	Oil Nozzle
1-56	Oil Outlet Pipe
1-57	Oil Pump
1-58	Oil Inlet Ppe
1-59	Oil Pump Cover Plate
1-60	Worm
1-61	Needle Bearing
1-62	dutch Drum
1-8K	Cylinder Bbck(Including Piston Assy) 137
1-8K	Cylinder Bbck(Including Piston Assy) 142
1-22K	Piston Assy(Including Ring Set,Pin&Circlip) 137
1-22K	Piston Assy(Including Ring Set,Pin&Circlip) 142
