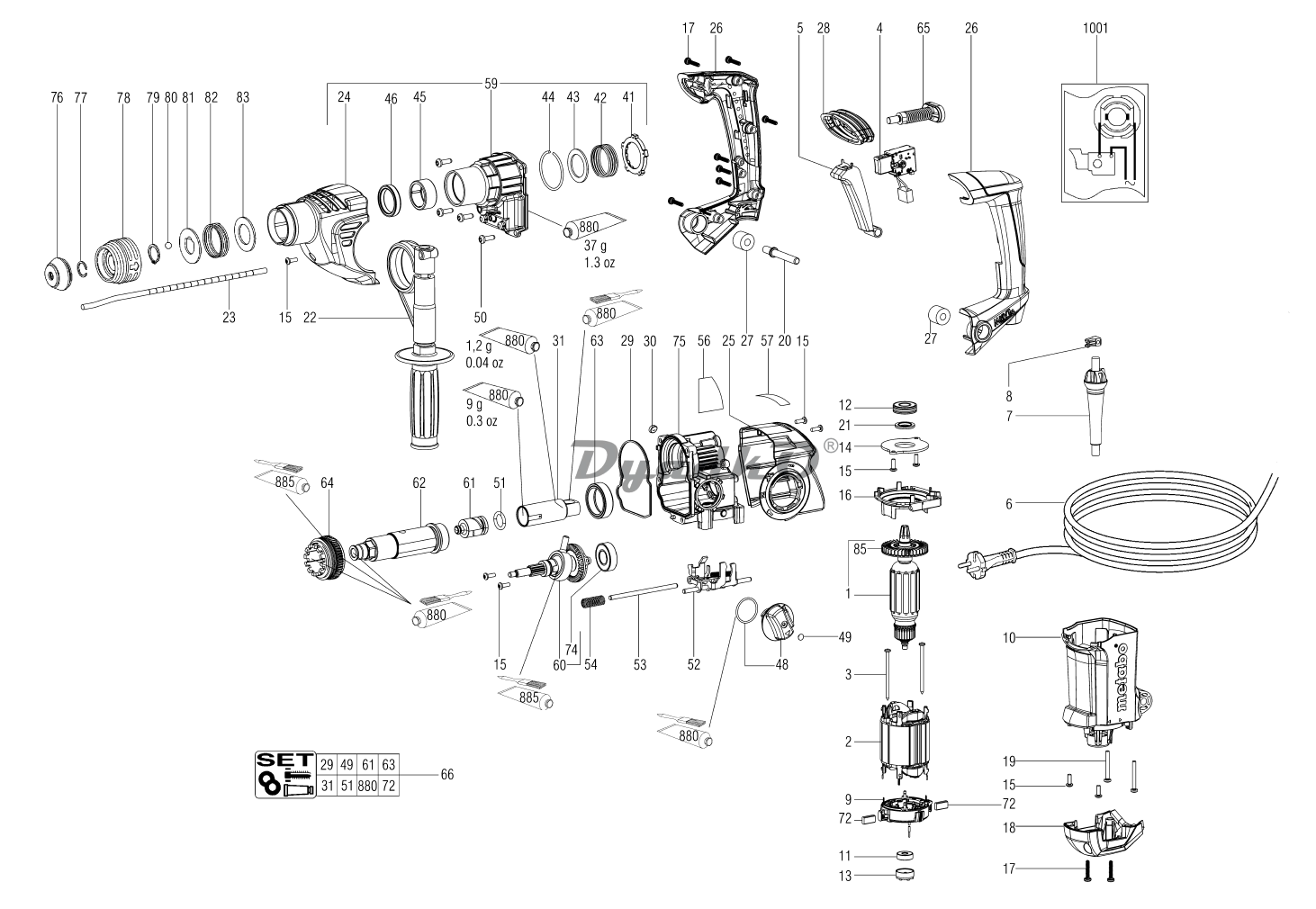

Схема (деталировка) перфораторы METABO KHE 3250 KHE 3250 (00637000). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Armature 230 V
2	Field coil 230V
3	Self-tap. fill. h. screw
4	Electronic switch without dial,230V
5	Switch trigger
6	Cable with plug
7	Cable sleeve
8	Cable clip
9	Brush holder module,230V - V 700W-800W
10	Motor housing
11	Ball bearing,6x19x6
12	Ball bearing,12X 28X 8
13	Rubber bushing
14	Fixed bearing cover
15	Fill. head screw
16	Baffle
17	Self-tap. fill. h. screw
18	Motor cap
19	Fillister head screw
20	Bearing bolt
21	Spacer sleeve
22	Support handle compl.
23	Depth stop
24	Housing in the front
25	Housing rear
26	Handle upper+lower part
27	Damping ring
28	Bellows
29	SEAL
30	Felt seal
31	exciter sleeve
41	Retaining ring
42	Pressure spring,34,7x38,3x1,8x27,7
43	Supporting disc
44	Circlip
45	Needle sleeve
46	Shaft sealing ring
48	Control knob compl.
49	Seal
50	Fill. head screw(DIN 7985)
51	O-ring
52	Shift element compl.
53	shift bolt
54	Pressure spring
56	Rating plate
57	Part not needed
59	Gear housing cpl.
60	Pinion shaft compl.
61	Striker compl.
62	Drill driving sleeve compl. SDS
63	Bearing ring compl.
64	Intermediate gear cpl.
65	Spring-locked connecting pin compl.
66	Maintenance kit SDS
72	Carbon brush set,230 V
74	BALL BEARING, 15x32x9
75	Gear housing rear
76	Rubber cap
77	Circlip
78	Adjusting ring
79	Retaining ring
80	Ball
81	Guide plate
82	Pressure spring
83	Washer
85	Fan
880	Grease FG 126
885	Tube Grease,50g Klueber Microlube GL 261
1001	Wiring diagram,230 V
