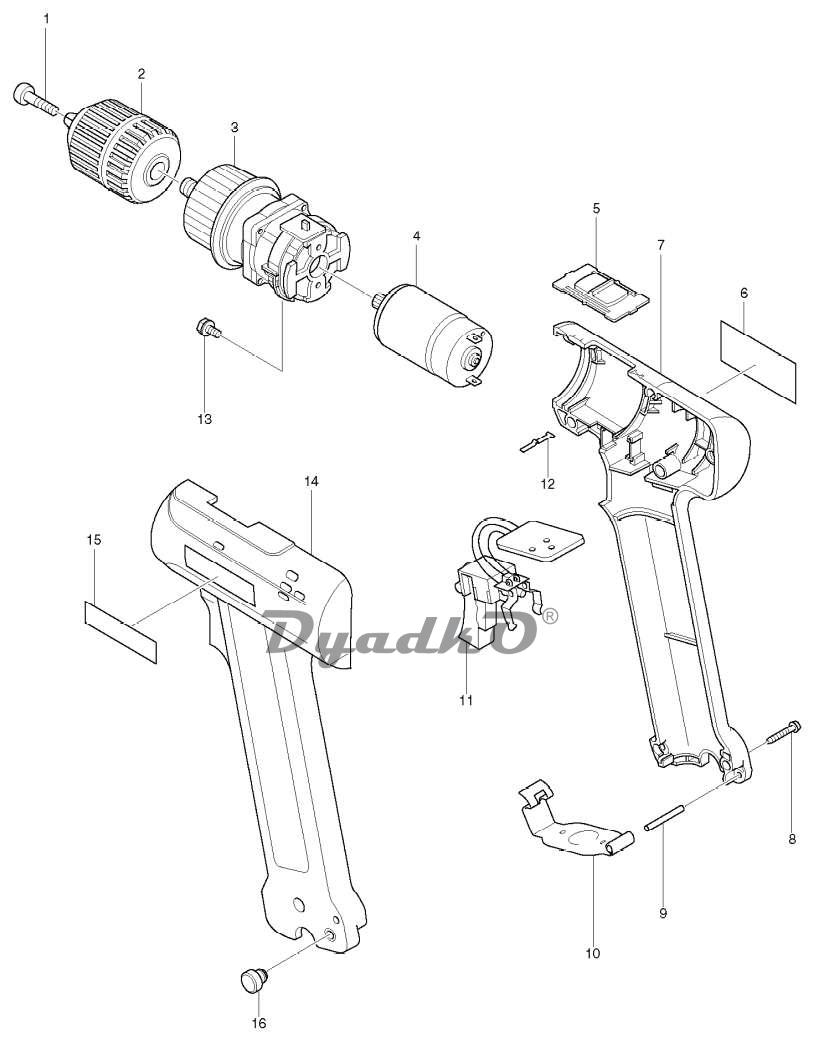

Схема MAKITA 6096 D
1
- PAN HEAD SCREW M5X20
2
KEYLESS DRILL CHUCK SET
3
GEAR ASS\\\'Y
4
DC MOTOR
5
SPEED CHANGE LEVER ASS\\\'Y
6
NAME PLATE 6096D
7
HOUSING SET INC. 14,15
8
TAPPING SCREW BIND PT 3X16
9
PIN 3
10
SET PLATE
11
SWITCH ASS\\\'Y
12
LEAF SPRING
13
PAN HEAD SCREW M3X6
14
HOUSING SET INC. 7,15
15
MAKITA LABEL
16
RUBBER PIN 6
A01
BATTERY COVER
A02
BIT 2-45
A03
PLASTIC CARRYING CASE
B01
DC1414 BATTERY CHARGER
B02
BATTERY 9034 SET
E01
BATTERY 9000 SET
