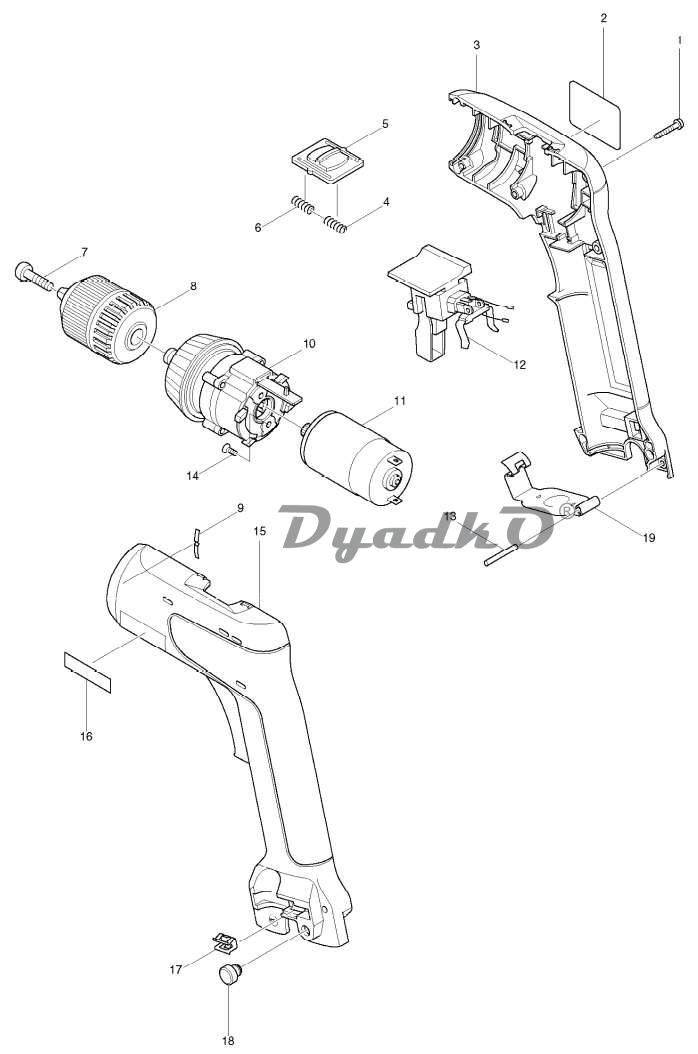

Схема MAKITA 6019 D
1
TAPPING SCREW BIND PT 3X16
2
NAME PLATE 6019D
3
HOUSING SET INC. 15,16
4
COMPRESSION SPRING 4
5
SPEED CHANGE LEVER
6
COMPRESSION SPRING 4
7
- PAN HEAD SCREW M5X20
8
KEYLESS DRILL CHUCK SET
9
LEAF SPRING
10
GEAR ASS\\\'Y
11
DC MOTOR
12
SWITCH ASS\\\'Y
13
PIN 3
14
COUNTERSUNK HEAD SCREW M3X6
15
HOUSING SET INC. 3,16
16
MAKITA LABEL
17
BIT HOLDER
18
RUBBER PIN 6
19
SET PLATE
A01
BATTERY COVER
A02
+- BIT 2-45
A03
PLASTIC CARRYING CASE
A04
BATTERY 7000 SET
