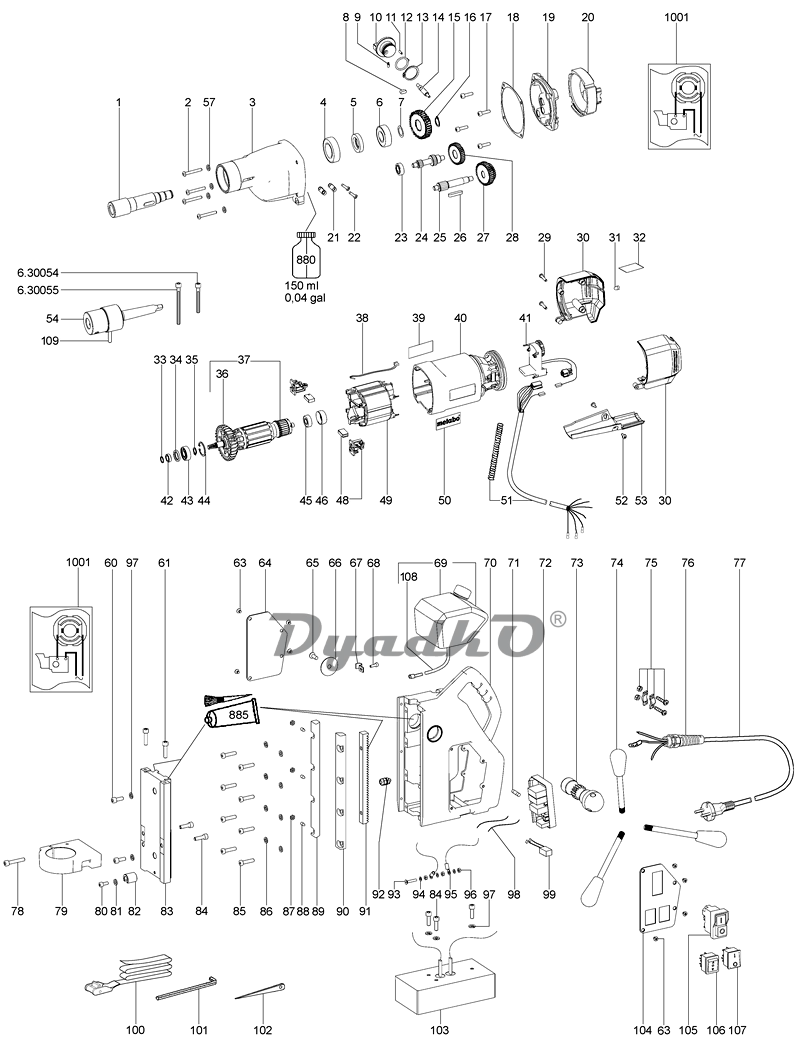

Схема METABO MAG 50 MAG 50 (00331000)

1 Spindle
2 Cap screw
3 Gear housing compl.
4 Grooved ball bearing
5 Shaft sealing ring
6 Grooved ball bearing 17x40x12
7 Shim
8 Parallel key
9 Index bolt
10 Control knob
11 ZYLINDERSTIFT
12 O-ring
13 Retaining ring
14 Shift bolt
15 Spur gear
16 Retaining ring
17 Self-tap. fill. h. screw
18 Gasket
19 Gear cover compl.
20 Baffle
21 Cable clip
22 Fillister head screw
23 Ball bearing, 8x22x7
24 Pinion shaft
25 Pinion shaft
26 PRALLEL KEY
27 Sliding block
28 Spur gear
29 Self-tap. fill. h. screw
30 Motor cap 2-part
31 Light transmission
32 Indication lable
33 Circlip
34 Shaft seal
35 Retaining ring
36 Fan w. prot. Grid
37 Armature compl.,230 V
38 Temperature sensor
39 Rating plate
40 Motor housing
41 Electronic unit,230V 50/60Hz
42 Bush
43 Ball bearing, 10x26x8
44 Retaining ring
45 Ball bearing, 8x22x7
46 Rubber bearing
48 Brush Holder ass\'y
49 Field coil w.field coil
50 M-Label,08 52x22
51 Cable compl.
52 Self-tap. fill. h. screw
53 Cabel-duct
54 Industrial arbors,MK2
57 Gasket
60 Cap screw
61 Cap screw
63 Countersunk screw
64 Cover sheet
65 Countersunk screw
66 Washer
67 Cable clip
68 Cap screw
69 cooling liquid tank compl.
70 Stator housing compl.
71 Fuse
72 Electronic unit,230V 50/60Hz
73 Gear-wheel shaft
74 Handle compl.
75 STRESS RELIEVE
76 Cable sleeve
77 Cable with plug
78 Cap screw
79 Tool holder
80 Cap screw
81 WASHER
82 Holder
83 Sliding carriage
84 Cap screw
85 Cap screw
86 Washer
87 Plain hexagon nut
88 Grub screw
89 Guide strip
90 Guide strip
91 Rack
92 Gland
93 Countersunk screw
94 Lock washer
95 Quetschkabelschuh
96 Hexagonal nut
97 Spring washer
98 Strand set
99 Suppressor
100 tension belt
101 Cranked wrench key
102 Drift key
103 Magnet block
104 Face sheet metal
105 Electronic switch,230 V
106 Switch,R+L
107 On-off switch,230 V
108 hose compl.
109 nipple
880 Oil
885 Grease 50Gr 1,8oz
1001 Wiring diagram,230 V
