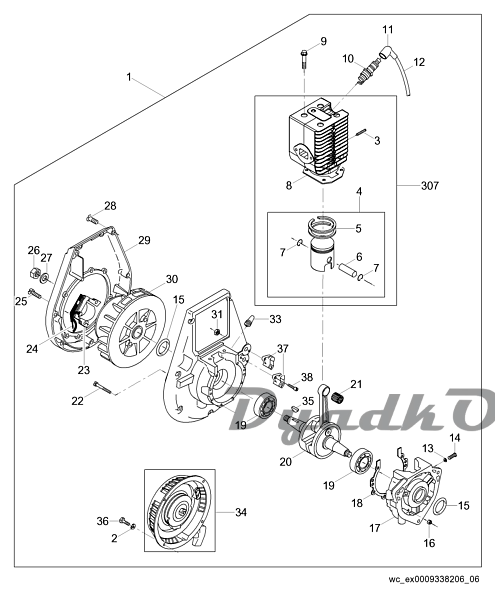

Схема WACKER NEUSON BS 50-2i (5000009414) Revision 265 06 Engine-WM 80

1	Engine-WM 80-oi
2	Lock washer 6
3	Stud M5 x 20
4	Piston cpl.
5	Piston ring 45 x 1,5
6	Piston pin
7	Retaining ring 13mm
8	Cylinder head gasket
9	Socket head screw M6 x 60
10	Spark plug
11	Spark plug terminal cap
12	Ignition cable
13	Ring seal 5 x 7.5
14	Cheese head screw M5 x 8
15	Shaft seal 20 x 30 x 7
16	Hexagon nut M5
17	Crankcase cpl.
18	Gasket
19	Radial ball bearing
20	Crankshaft
21	Needle bearing
22	Torx screw M5 x 60
23	Ignition Unit Module Kit
24	Sleeve
25	Cheese head screw M5 x 20
26	Hexagon nut M12 x 1,5
27	Flat washer B13
28	Oval head screw M5 x 25
29	Cover
30	Fan
31	Lock nut M3
33	Cable guide
34	Rewind starter
35	Woodruff key 3 x 5
36	Pan head screw M6 x 12
37	Terminal post
38	Cheese head screw M3 x 20
39	Label
307	Cylinder with piston
