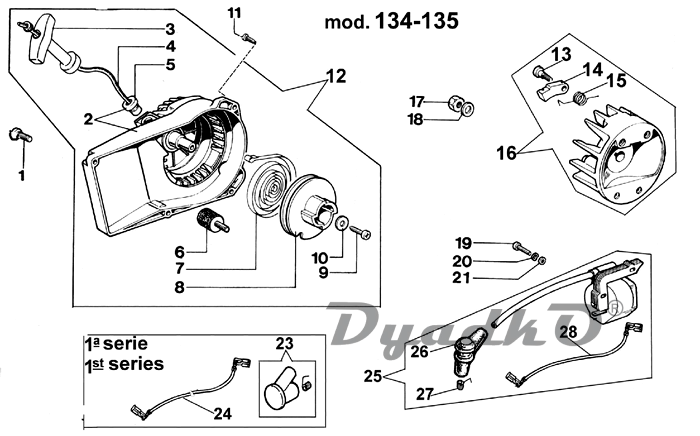

| 1 | Screw |
| 2 | Starter case |
| 3 | Starter handle |
| 4 | Starter rope |
| 5 | Bushing |
| 6 | Support |
| 7 | Spring |
| 8 | Starter pulley |
| 9 | Screw |
| 10 | Washer |
| 11 | Screw |
| 12 | Starter case |
| 13 | Pin |
| 14 | Pawl |
| 15 | Spring |
| 16 | Flywheel |
| 17 | Nut |
| 18 | Washer |
| 19 | Screw |
| 20 | Washer |
| 21 | Washer |
| 23 | Spark plug cap |
| 24 | Cable |
| 25 | Ignition coil |
| 26 | Spark plug cap |
| 27 | Spring |
| 28 | Cable |
