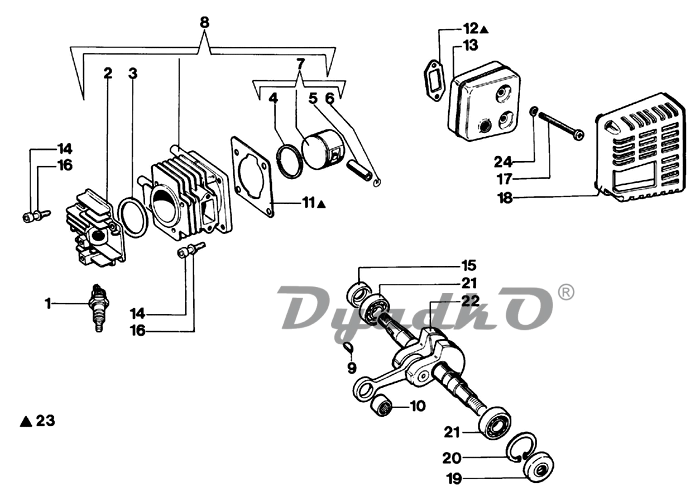

| 1 | Spark plug |
| 2 | Engine head |
| 3 | Gasket |
| 4 | Piston ring |
| 5 | Piston pin |
| 6 | Ring |
| 7 | Piston assy Ø38 |
| 8 | Cylinder |
| 9 | Key |
| 10 | Bearing |
| 11 | Gasket |
| 12 | Gasket |
| 13 | Muffler |
| 14 | Screw |
| 15 | Seal ring |
| 16 | Washer |
| 17 | Screw |
| 18 | Guard |
| 19 | Seal ring |
| 20 | Ring |
| 21 | Bearing |
| 22 | Crankshaft |
| 23 | Gasket set |
| 24 | Washer |
