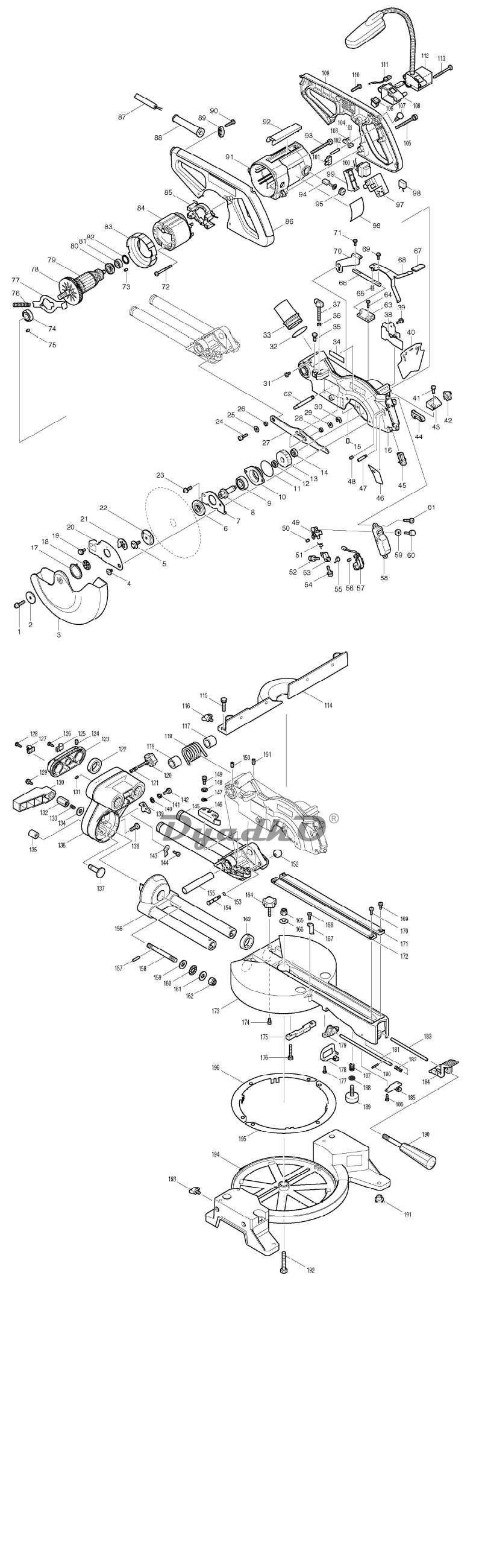

Схема MAKITA LS 0714 FL

1 PAN HEAD SCREW M5X18
2 FLAT WASHER 5
3 SAFETY COVER
4 + FLAT HEAD SCREW M5
5 HEX.BOLT M6X18
6 INNER FLANGE 40
7 BEARING RETAINER 55
8 SPINDLE
9 BALL BEARING 6201DDW
10 BEARING BOX
11 O RING 42
12 RING 12
13 HELICAL GEAR 47
14 BALL BEARING 607LLB
15 RUBBER PIN 6
16 BLADE CASE INC. 15,34,75
17 SPIRAL SPRING 26
18 CENTER WASHER
19 HEX.BOLT M6X14
20 CENTER COVER
21 CENTER PLATE
22 OUTER FLANGE 40
23 PAN HEAD SCREW M5X16
24 HEX. SOCKET HEAD BOLT M6X20
25 FLAT WASHER 6
26 RING 6
27 LINK PLATE COMPLETE
28 RING 6
29 FLAT WASHER 6
30 STOP RING E-5
31 TAPPING SCREWҐBINDҐCTҐ4X8
32 O RING 35
33 DUST NOZZLE
34 MAKITA LOGO LABEL
35 HEX. BOLT M6X16
36 URETHANE RING 5
37 SCREW M6X43
38 GUARD PLATE COMPLETE
39 PAN HEAD SCREW M4X10
40 GUARD
41 TAPPING SCREW BIND CT 4X12
42 LEAD COVER A
43 LEAD COVER HOLDER
44 LEAD COVER B
45 LENS
46 LASER LABEL
47 SHOULDER SCREW M5
48 H.S.SET SCREW(CUP POINT)M5X8
49 BLOCK C
50 H.S.SET SCREW(FLAT POINT)M4X6
51 TORSION SPRING 9
52 PAN HEAD SCREW M3X6
53 BLOCK B
54 PAN HEAD SCREW M3X6
55 TORSION SPRING 9
56 H.S.SET SCREW(FLAT POINT)M4X6
57 LASER CIRCUIT COMPLETE
58 TOP COVER
59 FLAT WASHER 5
60 THUMB SCREW M5X24
61 TAPPING SCREW BIND CT 4X20
62 LOCK PIN
63 ROD HOLDER
64 TAPPING SCREW CT 4X16
65 COMPRESSION SPRING 7
66 ROD 8
67 CAP
68 LOCK LEVER
69 PAN HEAD SCREW M4X10
70 LOCK PLATE
71 PAN HEAD SCREW M4X10
72 TAPPING SCREW 5X50
73 RUBBER PIN 4
74 BALL BEARING 6001LLB
75 RUBBER PIN 4
76 COMPRESSION SPRING 5
77 SHAFT LOCK
78 FAN 70
79 ARMATURE ASS\\\'Y 220V INC. 74,78,80,81
80 INSULATION WASHER
81 BALL BEARING 608LLB
82 URETHANE WASHER 18
83 BAFFLE PLATE
84 FIELD 220V
85 SUPPORT COMPLETE
86 HANDLE SET INC. 109
87 POWER SUPPLY CORD 1.0-2-3.3
88 CORD GUARD 9.3-90
89 STRAIN RELIEF
90 TAPPING SCREW 4X18
91 MOTOR HOUSING COMPLETE INC. 73
92 UPPER COVER
93 PAN HEAD SCREW M5X50
94 CARBON BRUSH CB-303
95 BRUSH HOLDER CAP
96 NAME PLATE LS0714FL
97 SWITCH TG71B
98 NOISE SUPPRESSOR
99 SWITCH LEVER
100 POWER SUPPLY CIRCUIT
101 TERMINAL BLOCK 1P
102 PIN 5
103 LOCK OFF LEVER
104 COMPRESSION SPRING 4
105 PAN HEAD SCREW M5X50
106 SWITCH SLE6A
107 SWITCH BUTTON
108 SWITCH BOX COMPLETE
109 HANDLE SET INC. 86
110 TAPPING SCREW 4X18
111 LEAD UNIT
112 LIGHT ASS\\\'Y
113 TAPPING SCREW 4X40
114 GUIDE FENCE
115 HEX. BOLT M6X25
116 SCREW M6X10
117 SLEEVE 17
118 TORSION SPRING 28
119 SLEEVE 17
120 SCREW M6X33
121 COMPRESSION SPRING 6
122 RING 26
123 PIPE HOLDER
124 H.S.SET SCREW(CUP POINT)M6X8
125 STRAIN RELIEF
126 TAPPING SCREW BIND CT 4X12
127 WRENCH HOLDER
128 TAPPING SCREW BIND CT 4X12
129 PAN HEAD SCREW M4X10
130 LEVER 100
131 SET SCREW M4X8
132 HEX. NUT M10-17
133 COMPRESSION SPRING 5
134 FLAT WASHER 10
135 CAP 16
136 ARM COMPLETE
137 RELEASE PIN
138 HEX. BOLT M6X16
139 STOPPER PLATE
140 FLAT WASHER 6
141 TORSION SPRING 8
142 +PAN HEAD SCREW M5
143 POINTER
144 TAPPING SCREW BIND CT 4X12
145 FRONT ARM COMPLETE
146 STOPPER ARM
147 WAVE WASHER 8
148 FLAT WASHER 8
149 + PAN HEAD SCREW M6
150 H.S.SET SCREW(FLAT POINT)M6X10
151 H.S.SET SCREW(FLAT POINT)M6X16
152 KNOB 20
153 O RING 5
154 STOPPER PIN
155 PIPE 16-90
156 ARM HOLDER COMPLETE
157 PIN 5
158 SCREW M10
159 FLAT WASHER 10
160 THRUST NEEDLE CAGE 1024
161 FLAT WASHER 10
162 HEX. LOCK NUT M10-17
163 RING 26
164 SCREW M6X33
165 HEX. LOCK NUT M8-13
166 FLAT WASHER 8
167 INDICATION PLATE
168 TAPPING SCREW BIND CT 4X12
169 TAPPING SCREW BIND CT 4X12
170 TAPPING SCREW BIND CT 4X12
171 KERF BOARD
172 KERF BOARD
173 TURN BASE COMPLETE
174 HEX. SOCKET HEAD BOLT M4X10
175 SQUARE ROD COMPLETE
176 HEX.BOLT M5X30
177 TAPPING SCREW CT 4X16
178 LOCK PLATE
179 PIN HOLDER
180 PIN 3
181 LOCK PIN
182 COMPRESSION SPRING 6
183 ROD 6
184 LOCK LEVER
185 LOCK LEVER PLATE
186 TAPPING SCREW CT 4X16
187 COMPRESSION SPRING 9
188 FLAT WASHER 8
189 ADJUST BOLT M8X27
190 GRIP 32
191 CAP 20
192 HEX. BOLT M8X50
193 SCREW M6X10
194 BASE COMPLETE
195 SLIDE PLATE
196 SLIDE PLATE
197 TORSION SPRING 8
198 PAN HEAD SCREW M4X10
199 GUARD
200 STRAIN RELIEF
201 TAPPING SCREW BIND CT 4X12
202 HEX. NUT M6
203 STAY
A01 DUST BAG ASS\\\'Y
A02 VICE ASS\\\'Y
A03 SWITCH BUTTON
A04 TRIANGULAR RULE
A05 HOLDER
A06 TCT SAW BLADE 190X20X24T
A07 SOCKET WRENCH
A08 HEX. WRENCH 2.5
E03 SUB LEVER
E04 PAN HEAD SCREW M4X10
E05 COMPRESSION SPRING 6
E06 GUARD ASS\\\'Y INC. 38,40,197,198,199
