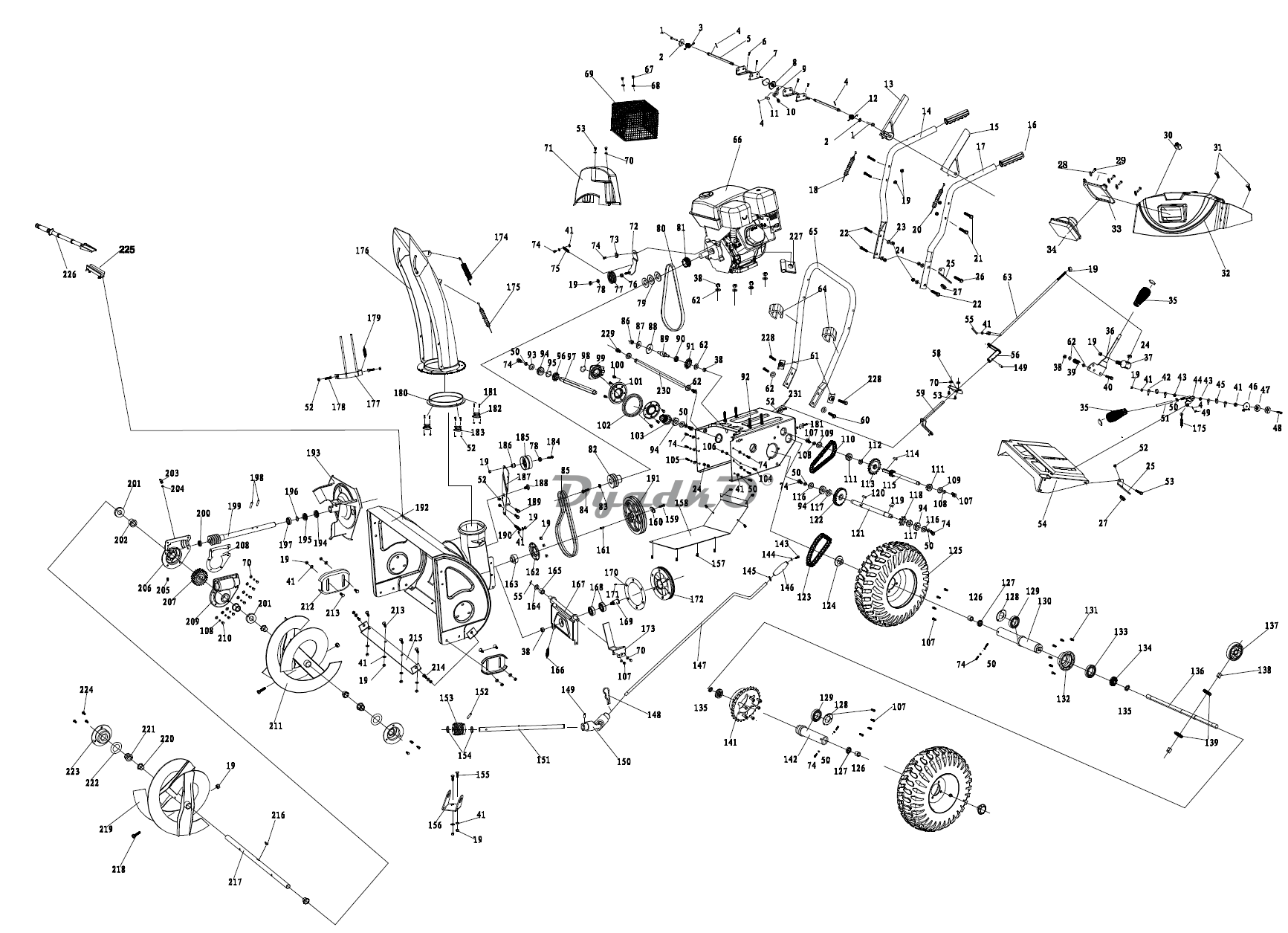

Схема DDE ST 9070 L Снегоуборщик

1 screw
2 plain cushion
3 Handle spring
4 hatch pin
5 Cluth1-5
6 hexagonal screw
7 Bracket 1-4
8 clutch 1-1
9 clutch 1-2
10 spring 3
11 clutch pin
12 Handle spring
13 Handle weldment comp (right)
14 Handle right upper tube
15 Handle weldment comp (left)
16 Heated up handle sleeve
17 Handle left upper tube
18 stepped wire
19 lock nut
20 auger wire
21 Hexagon flange bolt
22 bolt
23 washer
24 Flange screw
25 Crank below bracket
26 hexagonal flange bolt
27 SJ fixing plate plastic circle
28 washer
29 pan head tapping screws with cross recessed
30 Switch
31 Cross pan head screw
32 Plastic panel
33 8HP lamp shaft
34 lamp
35 gear handle
38 lock nut
40 hexagonal bolt
41 washer
42 gourd fiche
43 saddle flexibility washer
44 adjuster lever weldment comp
45 U fiche
46 adjuster damp fixing plate
47 bowl shrapnel
48 Speed lever screw
49 wire pin
50 spring cushion
51 Adjusting joint rod
52 lock nut
53 hexagonal screw
55 hatch pin
57 hexagonal screw
58 Orthogonal Iron
60 Hexagon flange bolt
61 handle washer
62 plain cushion
64 28 wire nip
66 engine
67 pan head tapping screws
68 plain cushion
69 Thermally insulated shroud
70 plain cushion
71 belt cover
72 Small Tension pulley
73 Tension convex washer
74 hexagonal Screw
75 SJ spring 3
76 Washer
77 Small Tension pulley Comp(+bearing )
78 SJ Pallet
79 synchro-wheel washer
80 5M synchro-belt
81 Man Synchronization Wheel
82 main pulley
83 plain cushion
84 hexagonal Screw
85 V-belt
86 lock nut
87 plain cushion
88 plain cushion
90 Deep slot bearing
93 plain cushion
94 Bearing
95 Snap Spring
96 sprocket
98 Snap Spring
99 Change pulley cover
100 hexagonal Screw
101 SJ Change pulley washer
102 SJ Change pulley Circle
103 Change pulley cover
104 hexagonal Screw
105 hexagonal Screw
106 hexagonal nut
107 hexagonal Screw
108 spring cushion
109 plain cushion
110 the chain btween first-shaft and second shaft
111 Bearing
112 Snap Spring
114 Pin key
116 plain cushion
117 Snap Spring
119 Pin key
120 Pin key
123 Third-shaft chain
125 wheel assemble
127 Deep slot bearing
128 75 cover
129 Deep slot bearing
131 hexagonal Screw
132 torque sensitive differential chain cover
133 Deep slot bearing
134 torque sensitive differentialbevel gear 13
135 Separate sleeve
136 torque sensitive differential axes
137 torque sensitive differential bevel gear
138 torque sensitive differential bevel axes
139 torque sensitive differential bevel 12
140 torque sensitive differential chian wheel cover
141 torque sensitive differential chian wheel
143 flange hexagonal bolt
144 plain cushion
145 plain cushion
146 SJ handle cover
147 chute Crank
148 pin
149 Spring-type straight pin
150 Cardan
151 chute Crank 1
152 Spring-type straight pin
153 Helical gear
154 washer
155 Step bolt
156 bracket
157 screw
159 hexagonal Screw
160 plain cushion
161 key
162 Rockered cover
163 Bearing
164 plain cushion
166 spring 3
168 Deep slot bearing
169 Driving pulley shaft
170 SJ driving sync wheel cover
171 SCREW
172 SJ driving sync wheel
173 Pulley sub panel 1
174 chute extension spring
175 chute wire
176 Chute Comp
177 Discharge chute accessories
178 hexagonal Screw
179 SJ Spring 4
180 chute pedestal plastic circle
181 hexagonal Screw
182 Chute mat
183 Chute Bead
184 hexagonal Screw
185 Big tension pulley Comp (+ Bearing)
186 Mat
187 Tension Plate 3
188 Screw -1
189 Tension screw
190 spring 5
191 Big pulley
192 Steel Cover
193 Fan
194 oil seal
195 bearing
196 Washer
197 Deep slot bearing
198 Spring-type straight pin
199 SJ Drive Worm shaft
200 Deep slot bearing
201 oil seal
202 Drive shaft sheath
203 zerk
204 zerk washer
205 bolt
206 Pedestal
207 Worm wheel
208 SJ paper cushion
209 upper pedestal
210 hexagonal bolt
211 right auger
212 slide
213 Step bolt
214 Step bolt
215 Shave plate
216 Semicircular key
217 Auger output shaft
218 Auger bolt
219 left Auger
220 Drive shaft sheath
221 Shaft sheath
222 plain cushion
223 Bearing cover
224 hexagonal bolt
225 shovel seat
226 plastic shovel
227 wire shaft
