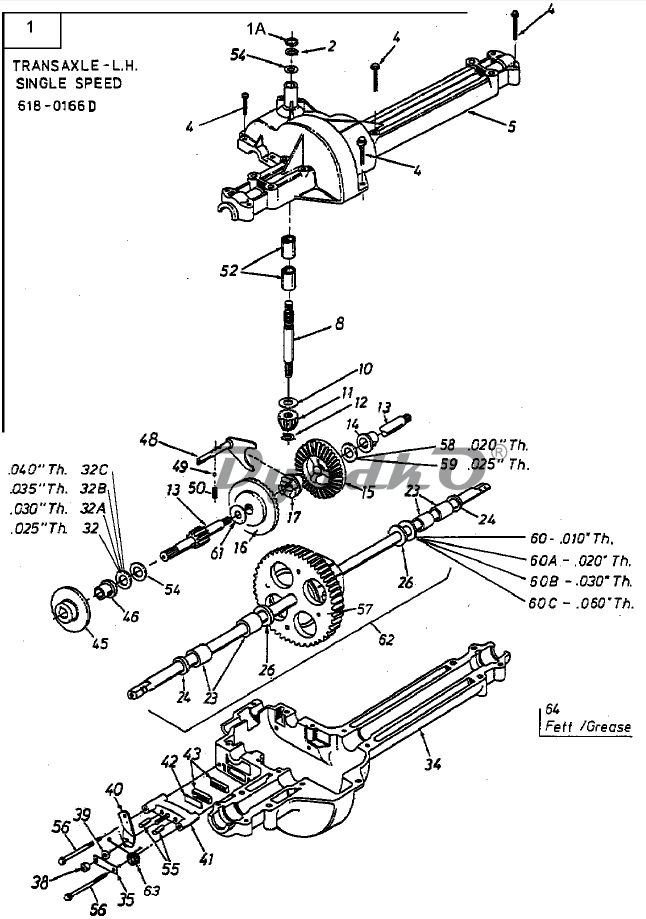

Схема MTD JA 115 (13AC478A678) 2002г. Transmission 618-0166D

1	TRANS ASS:SNGL:SPD
1A	RING-WIRE
2	RETAINING RING
4	SCR:TT:1/4-20:1.625:HXINDWSH
5	HOUSING-UPPER
8	HOUSING-INPUT
10	WASH :TH RST: .635 X1.26 X .06
11	GEAR 14T REDUCTION
12	RETAINING RING
13	Drive shaft
14	BEARING-FLANGE
15	GEAR-BEVEL 42T
16	GEAR-BEVEL 42T
17	HINGE PIN
23	BRG:SL£EVE:.75 x 1.00 x 1.00
24	OIL SEAL
26	WASH :FL:.760 x 1.50 x.06:HT
32	WASHER-THRUST 1.00X.632 X.O
32A	FLAT WASHER 5/8 ID X 1.0 OD
32B	WASH :FL: .632X1.00X035
32C	WASHER-FL:.634x1.00x.04:HT
34	LOWER HOUSING
35	BRACKET-ANTI ROTATION
38	HEX NUT 5/16-24
39	WASH:FLAT:.343 x .880 x .062
40	Brake lever
41	YOKE-BRAKE
42	PLATE-PUCK
43	BRAKE PAD
45	BRAKE DISC
46	BEARING-FLANGE
48	SHFASM:DETENT
49	BALL:DETNT:.250 DIA
50	COMRESSION SPRING
52	BEARING-NEEDLE .625X.813X.495
54	WASHER-FL 5/8 D X1.0 OD
55	PIN-ACTUATING
56	SCR:TT:1/4-20:2.375:HXINDWSH
57	GEAR-DIFFERENTIAL
58	WASHER-FL 5/8 D X1.0 OD
59	WASHER-THRUST 1.00X.632 X.O
60	WASH-FLAT: .760 x 1.500 x.010
60A	WASH:FLAT:.760 x 1.500 x .020
60B	WASH:FLAT:.760 ID x 1.50 OD
60C	WASH :FL:.760 x 1.50 x.06:HT
61	WASH:FLAT:.70X1.125X.031
62	DIFFERENTIAL ASSY
63	SPRING-TORSION .75 OD X3 COILS
64A	GREASE
