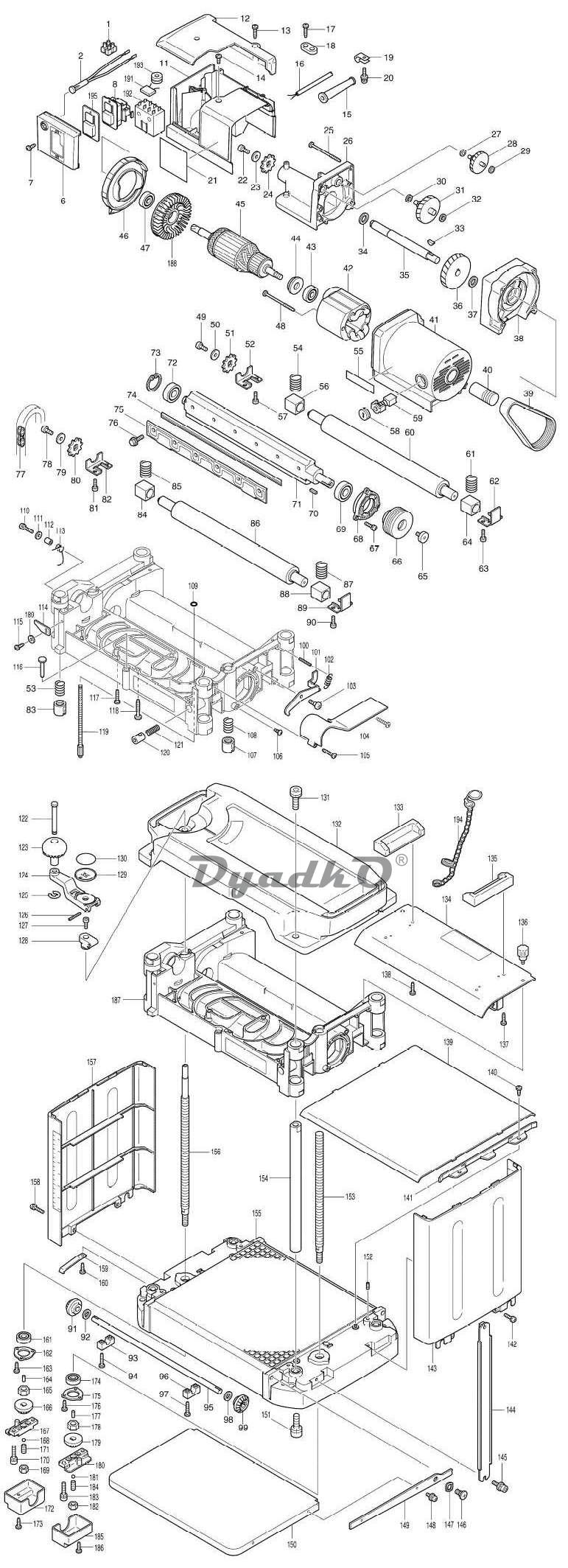

Схема MAKITA 2012 NB


1 TERMINAL BLOCK
2 PILOT LAMP COMPLETE
6 SWITCH COVER
7 + TAPPING SCREW M4X12
8 SWITCH UNIT
11 SWITCH BOX
12 SWITCH BOX COVER
13 TAPPING SCREW 4X18
14 TAPPING SCREW BIND CT 4X12
15 CORD GUARD 9.3-85
16 POWER SUPPLY CORD 1.0-2-2.5
17 TAPPING SCREW 4X18
18 STRAIN RELIEF
19 STRAIN RELIEF
20 PAN HEAD SCREW M4X16
21 NAME PLATE 2012NB
22 HEX. SOCKET HEAD BOLT M6X12
23 FLAT WASHER 6
24 SPROCKET 10
25 TAPPING SCREW 5X75
26 GEAR HOUSING COVER COMPLETE
27 FLAT WASHER 6
28 GEAR COMPLETE 8-50
29 FLAT WASHER 6
30 FLAT WASHER 8
31 GEAR COMPLETE 8-46
32 FLAT WASHER 8
33 WOODRUFF KEY 4
34 FLAT WASHER 14
35 DRIVE SHAFT
36 HELICAL GEAR 47
37 FLAT WASHER 12
38 GEAR HOUSING COMPLETE
39 POLY V-BELT 8-341
40 V-PULLEY 8-23.5L
41 MOTOR HOUSING COMPLETE
42 FIELD ASS\\\'Y 230-240V
43 BALL BEARING 6200DDW
44 INSULATION WASHER
45 ARMATURE ASS\\\'Y 220-240V INC. 43,44,47,188
46 BAFFLE PLATE
47 BALL BEARING 6200DDW
48 TAPPING SCREW 5X75
49 HEX. SOCKET HEAD BOLT M6X12
50 FLAT WASHER 6
51 SPROCKET 10
52 METAL COVER (B)
53 COMPRESSION SPRING 15
54 COMPRESSION SPRING 13
55 MAKITA MARK
56 PLANE BEARING 17
57 HEX. SOCKET HEAD BOLT M5X16
58 BRUSH HOLDER CAP 6.5-13.5
59 CARBON BRUSH CB-153
60 ROLLER 34-295
61 COMPRESSION SPRING 13A
62 METAL COVER (A)
63 HEX. SOCKET HEAD BOLT M5X16
64 PLANE BEARING 17
65 HEX. SOCKET HEAD BOLT M6X12
66 V-PULLEY 8-54
67 PAN HEAD SCREW M4X16
68 BEARING BOX
69 BALL BEARING 6202LLB
70 KEY 4
71 DRUM
72 BALL BEARING 6202LLB
73 RETAINING RING R-35
74 PLANER BLADE 306
75 SET PLATE
76 HEX. FLANGE HEAD BOLT M6X17
77 CHAIN 35-46
78 HEX. SOCKET HEAD BOLT M6X12
79 FLAT WASHER 6
80 SPROCKET 10
81 HEX. SOCKET HEAD BOLT M5X16
82 METAL COVER (B)
83 NUT M14
84 PLANE BEARING 17
85 COMPRESSION SPRING 13
86 ROLLER 34-295
87 COMPRESSION SPRING 13A
88 PLANE BEARING 17
89 METAL COVER (A)
90 HEX. SOCKET HEAD BOLT M5X16
91 STRAIGHT BEVEL GEAR 15
92 FLAT WASHER 10
93 SHAFT RETAINER
94 TAPPING SCREW CT 4X25
95 SHAFT 10
96 SHAFT RETAINER
97 TAPPING SCREW CT 4X25
98 FLAT WASHER 10
99 STRAIGHT BEVEL GEAR 15
100 SPRING PIN 4-28
101 LOCK PLATE
102 TENSION SPRING 5
103 + PAN HEAD SCREW M5
104 BELT COVER
105 TAPPING SCREW CT 4X25
106 + PAN HEAD SCREW M5X12
107 NUT M14L
108 COMPRESSION SPRING 15
109 O RING 4
110 PAN HEAD SCREW M5X20
111 FLAT WASHER 5
112 SLEEVE 6
113 TORSION SPRING 9
114 POINTER
115 TAPPING SCREW BIND CT 4X12
116 GAUGE
117 TAPPING SCREW CT 4X25
118 TAPPING SCREW 5X30
119 SCREW M6X135
120 HALF NUT
121 COMPRESSION SPRING 11
122 PIN 8
123 KNOB 45
124 HANDLE 160
125 STOP RING E-6
126 SPRING PIN 4-28
127 HEX. SOCKET HEAD BOLT M5X16
128 JOINT
129 GAUGE
130 SCALE LABEL
131 HEX. SOCKET HEAD BOLT M10X25
132 TOP COVER COMPLETE
133 TOOL BOX HOLDER
134 CHIP COVER
135 TOOL BOX HOLDER
136 SCREW M5X10
137 TAPPING SCREW 4X18
138 TAPPING SCREW 4X18
139 TABLE PLATE
140 TAPPING SCREW BIND CT 4X12
141 GUIDE PLATE
142 PAN HEAD SCREW M4X16
143 SIDE COVER
144 SIDE BEAM
145 HEX.SOCKET HEAD BOLT M6X16
146 + BINDING HEAD SCREW M8
147 WAVE WASHER 10
148 PAN HEAD SCREW M4X8
149 ARM
150 SUB TABLE PLATE
151 HEX. SOCKET HEAD BOLT M10X25
152 H.S.SET SCREW(FLAT POINT)M5X12
153 SCREW L
154 COLUMN 20
155 TABLE
156 SCREW R
157 SIDE COVER COMPLETE
158 PAN HEAD SCREW M4X16
159 LEAF SPRING
160 TAPPING SCREW BIND CT 4X12
161 BALL BEARING 6000DDW
162 BEARING RETAINER 33
163 TAPPING SCREW BIND CT 4X12
164 PIN 4
165 HEX.NUT M10-17
166 STRAIGHT BEVEL GEAR 15
167 SUPPORTER
168 STEEL BALL 5.6
169 HEX. NUT M8
170 HEX. SOCKET HEAD BOLT M5X20
171 H.S.SET SCREW(CUP POINT)M8X16
172 GEAR COVER
173 TAPPING SCREW BIND CT 4X12
174 BALL BEARING 6000DDW
175 BEARING RETAINER 33
176 TAPPING SCREW BIND CT 4X12
177 PIN 4
178 HEX.NUT M10-17
179 STRAIGHT BEVEL GEAR 15
180 SUPPORTER
181 STEEL BALL 5.6
182 HEX. NUT M8
183 HEX. SOCKET HEAD BOLT M5X20
184 H.S.SET SCREW(CUP POINT)M8X16
185 GEAR COVER
186 TAPPING SCREW BIND CT 4X12
187 MAIN FRAME COMPLETE
188 FAN 80
189 FLAT WASHER 4
191 NOISE SUPPRESSOR
192 RELAY UNIT
193 LINE FILTER
194 CHAIN
195 DUST COVER
A01 MAGNETIC HOLDER
A02 SOCKET WRENCH 9
A03 HEX. WRENCH 2.5
A04 PLASTIC CASE
A05 HOOD ASS\\\'Y
A06 STAND SET
