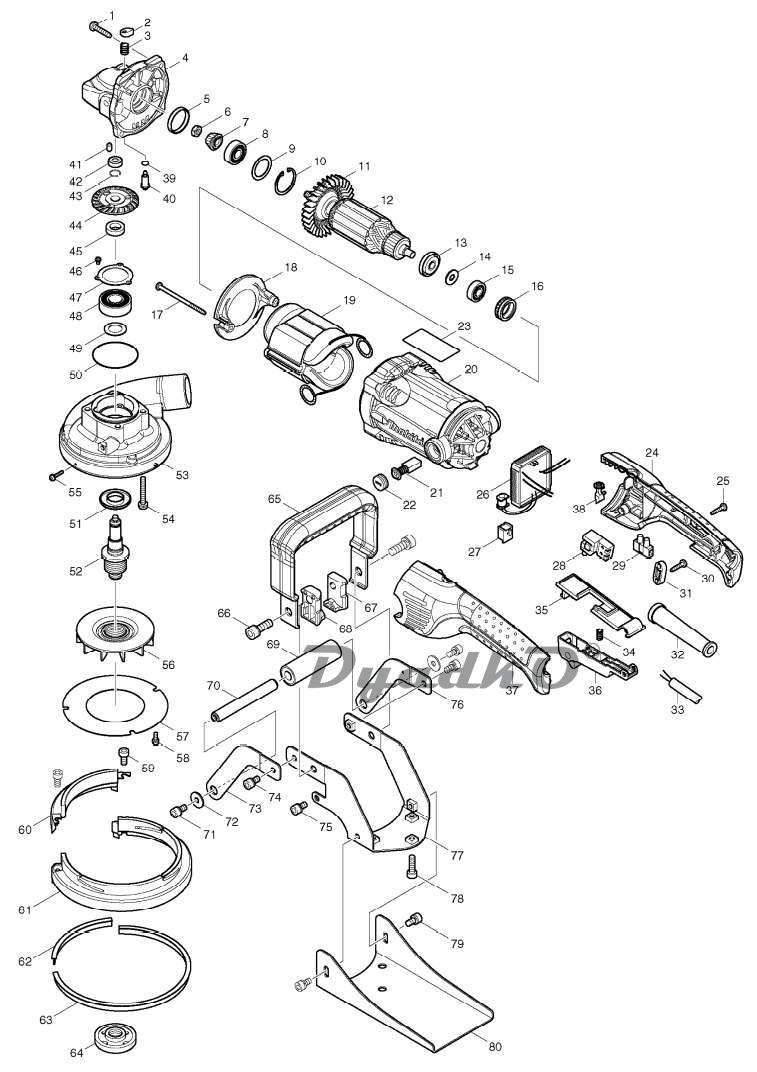

Схема MAKITA PC 5001 C

1 TAPPING SCREW 5X25
2 PIN CAP
3 COMPRESSION SPRING 8
4 GEAR HOUSING
5 RUBBER RING 26
6 HEX.NUT M7
7 SPIRAL BEVEL GEAR 11
8 BALL BEARING 6000DDW
9 FLAT WASHER 22
10 RETAINING RING (INT) R-30
11 FAN 70
12 ARMATURE ASS\\\'Y 240V INC. 11,13-15
13 INSULATION WASHER
14 FLAT WASHER 8
15 BALL BEARING 608DDW
16 RUBBER RING 22
17 TAPPING SCREW 4X70
18 BAFFLE PLATE
19 FIELD ASS\\\'Y 240V
20 MOTOR HOUSING COMPLETE
21 CARBON BRUSH CB-253
22 BRUSH HOLDER CAP
23 PC5001C NAME PLATE
24 HANDLE SET INC. 37
25 TAPPING SCREW 4X18
26 CONTROLLER
27 SLEEVE
28 SWITCH TG71B
29 TERMINAL BLOCK
30 TAPPING SCREW 4X18
31 STRAIN RELIEF
32 CORD GUARD 10-90
33 POWER SUPPLY CORD 1.0-2-5.0
34 COMPRESSION SPRING 6
35 SWITCH BASE
36 SWITCH LEVER A COMPLETE
37 HANDLE SET INC. 24
38 LENZ
39 O RING 7
40 SHOULDER PIN 5
41 RUBBER PIN 4
42 BALL BEARING 696ZZ
43 RING SPRING 11
44 SPIRAL BEVEL GEAR 35A
45 RING 12
46 PAN HEAD SCREW M3X6
47 BEARING RETAINER 39
48 BALL BEARING 6202DDW
49 FLAT WASHER 15
50 O RING 48
51 LABYRINTH RING
52 SPINDLE
53 SKIRT B COMPLETE
54 PAN HEAD SCREW M5X35
55 PAN HEAD SCREW M3X14
56 FAN 85
57 SEPARATOR
58 PAN HEAD SCREW M4X10
59 HEX. SOCKET HEAD BOLT M6X12
60 DUST COVER CAP
61 DUST COVER
62 BRUSH B
63 BRUSH A
64 LOCK NUT 14-45
65 GRIP
66 HEX. SOCKET HEAD BOLT M8X25
67 SPACER B
68 SPACER B
69 FRONT ROLLER COMPLETE
70 FRONT ROLLER SHAFT
71 HEX. SOCKET HEAD BOLT M6X12
72 FLAT WASHER 6
73 ROLLER HOLDER L
74 HEX. SOCKET HEAD BOLT M6X12
75 HEX. SOCKET HEAD BOLT M6X12
76 ROLLER HOLDER R
77 BASE HOLDER
78 HEX.SOCKET HEAD BOLT M6X20
79 HEX. SOCKET HEAD BOLT M6X12
80 BASE
81 FLAT WASHER 10
A01 DUST BAG ASS\\\'Y
A02 WRENCH HOLDER 5.6
A03 LOCK NUT WRENCH 35
A04 HEX. WRENCH 5
A05 STEEL CARRYING CASE COMPLETE
A06 BRUSH SET
A07 OFFSET DIAMOND WHEEL 125
