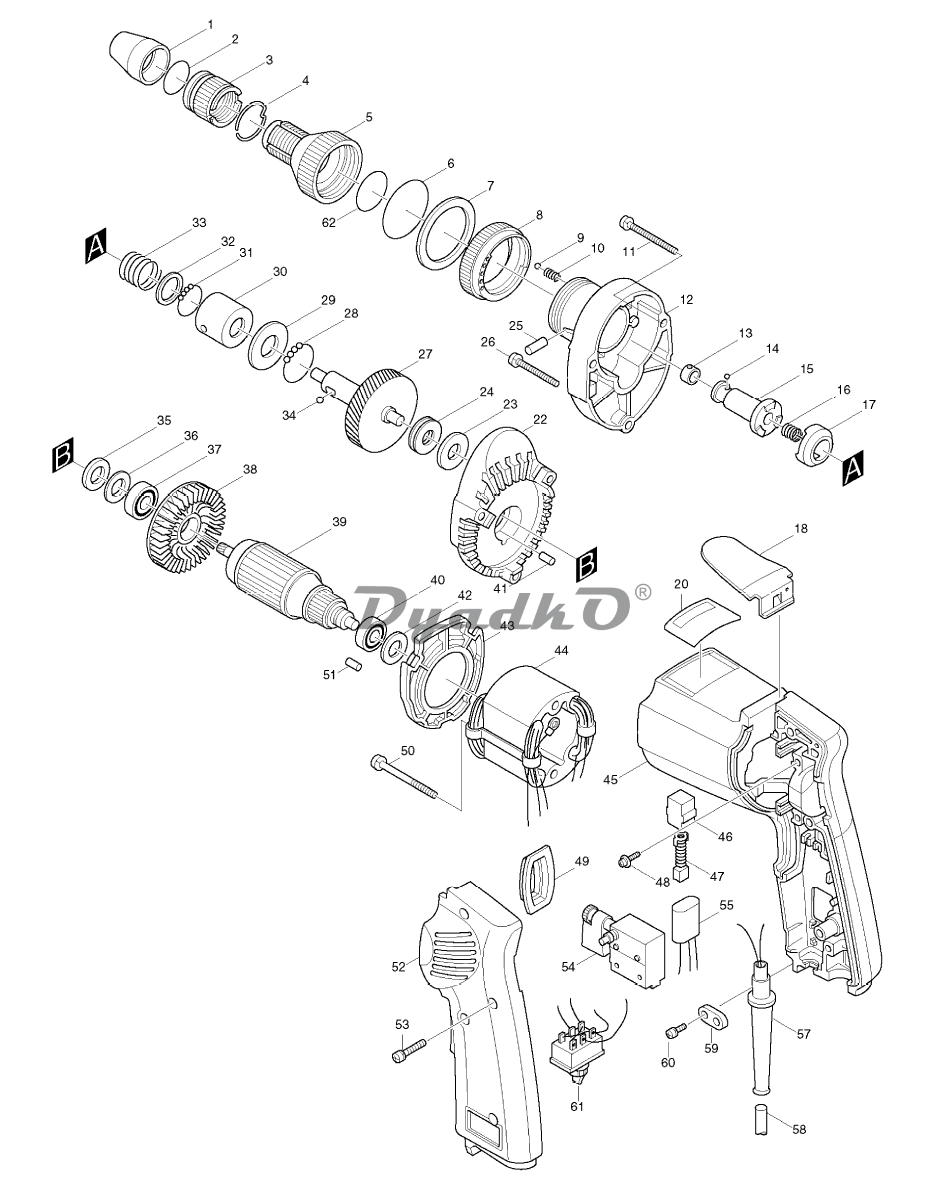

Схема (деталировка) шуруповёрты сетевые MAKITA 6805 BV. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	FRONT CAP 12
2	O RING 20
3	ADJUST SLEEVE
4	RING SPRING 22
5	CLUTCH COVER
6	O RING 34
7	FLAT WASHER 36
8	RING 36 COMPLETE (NEW)
9	STEEL BALL 4
10	COMPRESSION SPRING 4
11	PAN HEAD SCREW M5X50
12	GEAR HOUSING
13	LEAF SPRING
14	STEEL BALL 3.5
15	SPINDLE ASS\'Y INC. 13,14
16	COMPRESSION SPRING 6
17	CLUTCH CAM
18	HOOK
20	NAME PLATE 6805BV
22	GEAR HOUSING COVER COMPLETE INC. 41
23	URETHANE WASHER 10
24	THRUST NEEDLE BEARING 1023
25	PIN 4
26	PAN HEAD SCREW M5X40
27	GEAR COMPLETE
28	STEEL BALL 3.2
29	FLAT WASHER 14
30	SLEEVE
31	STEEL BALL 3.2
32	FLAT WASHER 14
33	COMPRESSION SPRING 13.6
34	STEEL BALL 5.6
35	URETHANE WASHER 14
36	FLAT WASHER 14
37	BALL BEARING 608LB
38	FAN 52
39	ARMATURE ASS\'Y 220V INC. 37,38,40
40	BALL BEARING 627LB
41	RUBBER PIN 4
42	FLAT WASHER 14
43	BAFFLE PLATE
44	FIELD 220V
45	MOTOR HOUSING COMPLETE INC. 51
46	BRUSH HOLDER 5-8
47	CARBON BRUSH CB-64
48	PAN HEAD SCREW M4X14
49	SWITCH COVER
50	PAN HEAD SCREW M4X55
51	RUBBER PIN 4
52	HANDLE COVER COMPLETE (NEW)
53	PAN HEAD SCREW M4X28
54	SWITCH TG823AB-2
55	NOISE SUPPRESSOR
57	CORD GUARD 8-85
58	POWER SUPPLY CORD 1.0-2-2.5
59	STRAIN RELIEF
60	PAN HEAD SCREW M4X18
61	SWITCH VTX11
62	O RING 24
400	PHILIPS BIT 2-45
401	PLASTIC CARRYING CASE
710	CHOKE COIL
711	CHOKE COIL
902	LINE COIL
	HANDLE COVER COMPLETE OLD)
	RING 36 COMPLETE (OLD)
