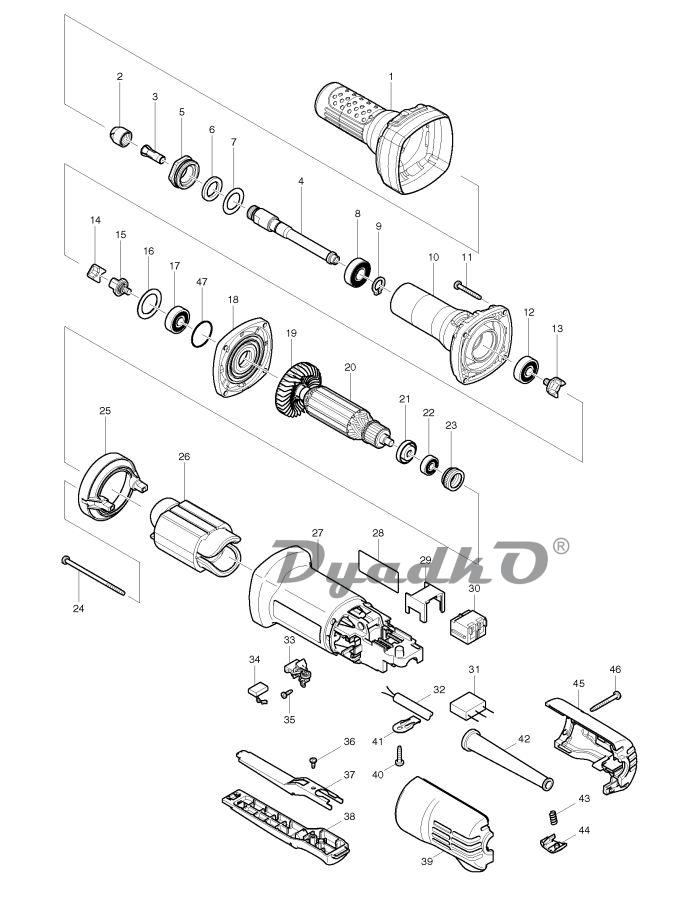

Схема MAKITA GD 0600
1
INSULATION COVER GD0600
2
COLLET NUT GD0600
3
Collet Cones For Grinders
4
SPINDLE GD0600
5
BEARING RETAINER GD0600
6
FELT RING GD0600
7
FLAT WASHER 18 GD0600
8
BALL BEARING 6001LLB UC4020A
9
*EXT DIN 471 CIRCLIP-12 10PK
10
BARREL GD0600
11
*R.H SQUARE NECK BOLT M8 10PK
12
BALL BEARING 629LLB BGA450
13
COUPLING GD0600
14
SPACER GD0600
15
COUPLING GD0600
16
*BLUE WASHER 22 5603R 5PK
17
BALL BEARING 629LLB BGA450
18
GEAR HOUSING COVER BGA450/9553
20
ARMATURE ASSY 110V GD0600
20
ARMATURE ASSY 240V GD0600
21
INSULATION WASHER GA4534/5034
22
BALL BEARING 607LLB 9553/9555N фото1 фото2
23
LABYRINTH RUBBER RING 9553/955
24
*TAPPING SCREW M4X80 10PK
25
BAFFLE PLATE 9556-58NB/PB/GD06
26
FIELD 230-240V GD0600/GD0602
26
FIELD 110V GD0600/602
27
MOTOR HOUSING 9556PB-9558PB
28
NAME PLATE GD0600
29
SPACER 9556-58NB/GD0602/GA4034
30
SWITCH 1247.0302 9527PB
31
*NOISE SUPPRESSOR 9553-9555NB
32
LEAD WIRE HP1641/TD0101F/KP081
32
POWER SUPPLY CORD 1.0-2-2.5
33
BRUSH HOLDER BO6040/9564&65CV&
34
CARBON BRUSH CB-325 9553-9555
35
*PT SCREW 3X10 TRIBULAR 10PK
36
TAPPING SCREW M3X8 GA4034/4534
37
PLATE GD0600
38
SWITCH LEVER B COMPL 9556PB-58
39
REAR COVER SET 9556PB-9558PB
40
*TAPPING SCREW M4X18 10PK
41
STRAIN RELIEF HM1317C/CB/HP162
42
CORD GUARD 10 TD0101F/2450
43
*COMPRESSION SPRING 6 10PK
44
LOCK ON BUTTON 9556PB-9558PB
45
REAR COVER SET 9556PB-9558PB
46
TAPPING SCREW 4X35 HR2230/2460
47
O-RING 26 BGA450/9553-55NB/GA4
