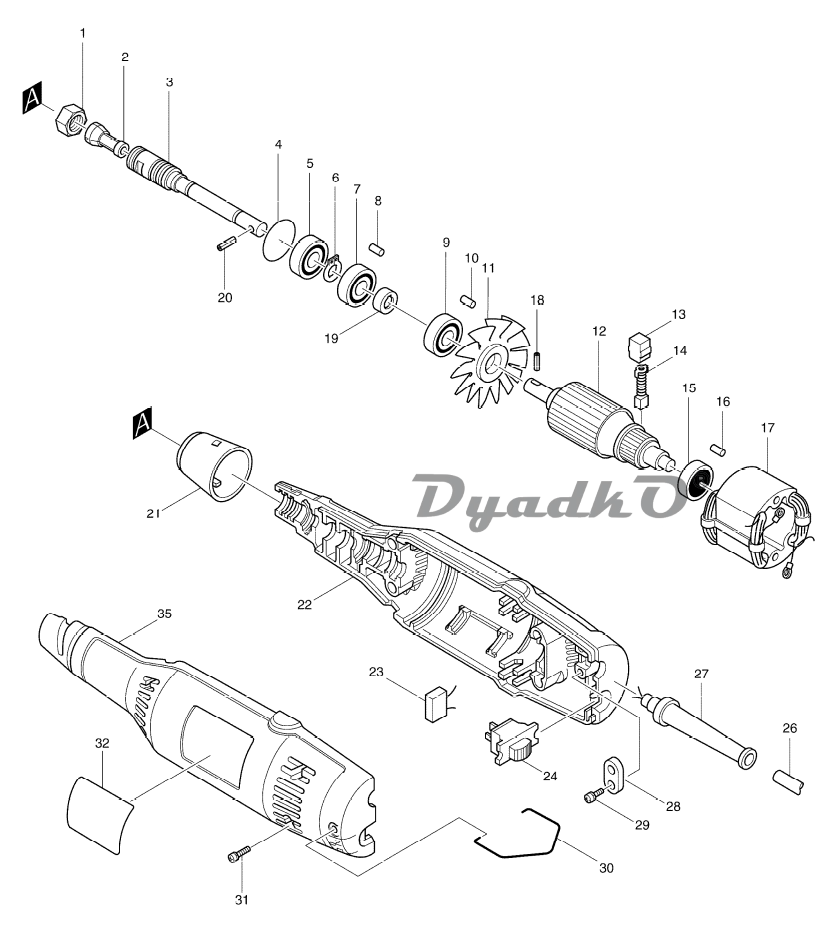

Схема MAKITA 906
1
COLLET NUT 6
2
COLLET CONE 6MM
3
SPINDLE
4
O RING 22
5
BALL BEARING 608LLB
6
RETAINING RING S-8
7
BALL BEARING 608LB
8
RUBBER PIN 4
9
BALL BEARING 608LLB
10
RUBBER PIN 4
11
FAN 52
12
ARMATURE ASS\'Y 220V INC. 9,11,15
13
BRUSH HOLDER 5-8
14
CARBON BRUSH CB-64
15
BALL BEARING 627LB
16
RUBBER PIN 4
17
FIELD ASS\'Y 220V
18
SPRING PIN 3-12
19
COUPLING
20
SPRING PIN 3-12
21
CAP
22
HOUSING SET INC. 8,10,16,35
23
NOISE SUPPRESSOR
24
SWITCH SS106A-5
26
POWER SUPPLY CORD 1.0-2-2.5
27
CORD GUARD 8.5-72
28
STRAIN RELIEF
29
PAN HEAD SCREW M4X18
30
HANGER
31
PAN HEAD SCREW M4X25
32
NAME PLATE 906
35
HOUSING SET INC. 8,10,16,22
400
DRESSING STONE
401
WRENCH 10
402
WRENCH 17
403
WHEEL POINT 1-19-60
404
WHEEL POINT 4-19-60
