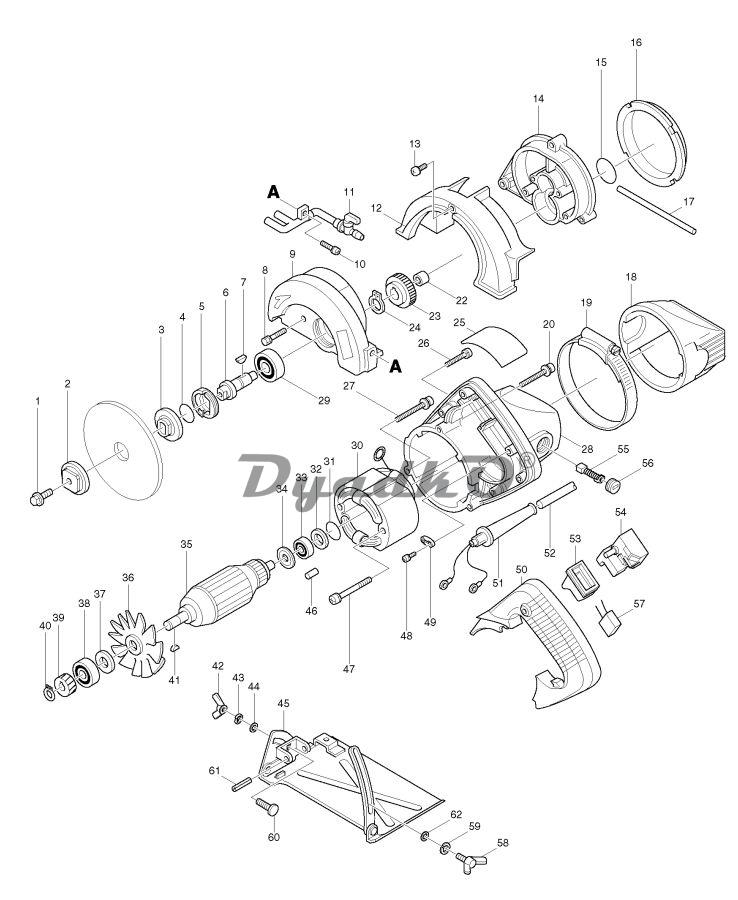

Схема MAKITA 4101 RH

1 HEX BOLT M6x20 4101RH
2 OUTER FLANGE 36 4105KB/4101RH
3 INNER FLANGE 36 4105KB/4101RH
4 O RING 18 4101RH/AN504
5 BEARING RETAINER 4101RH
6 SPINDLE 4101RH
7 *WOODRUFF KEY 4 10PK
8 +HEX BOLT M4x25 4101RH
9 BLADE CASE COMP 4101RH
10 *PAN HEAD SCREW M4X14 10PK
11 PIPE COMP 4101RH
12 COVER B 4101RH
13 *PAN HDSCREW M5X8 W/CP 10PK
14 GEAR HOUSING COMP 4101RH
15 O RING 26 3901/4101RH
16 BAFFLE PLATE 4101RH
17 SEAL RUBBER 4101RH
18 \'COVER A 4101RH
19 CLAMP 90 4101RH
20 *PAN HDSCREW M5X35 W/CP 10PK
22 NEEDLE BEARING 810 9046/DA4000
23 \'HELICAL GEAR 42 4101RH
24 *EXT DIN 471 CIRCLIP-12 10PK
25 NAME PLATE 4101RH
26 *PAN HEAD SCREW M4x25 10PK
27 *PAN HDSCREW M5X40 W/CP 10PK
28 MOTOR HOUSING CO 4101RH
29 BALL BEARING 6201DDW 3601B
30 FIELD 110V 4101RH
30 FIELD 240V 4101RH
31 O RING 16 BFS440/AN942/BFR540
32 *THIN WASHER 14 6013B/6822 5PK
33 BALL BEARING 608LB 9217SPC/904
34 INSULATION WASHER 806 HR1800
35 ARMATURE 110V 4101RH
35 ARMATURE 240V 4101RH
36 FAN 68 4101RH
37 FLAT WASHER 9 4101RH
38 BALL BEARING 629LLB BGA450
39 HELICAL GEAR 4101RH
40 *EXT DIN CIRCLIP-8 10PK
41 *WOODRUFF KEY 3 10PK
42 *WING NUT M6 HP2010N 5PK
43 *M6 SPRING RING DIN128 10PK
44 *FLAT WASHER 6 DIN125-B 10PK
45 \'BASE 4101RH
46 RUBBER PIN 4 PC5000/UH5580/TD
47 *PAN HD SCREW M5X65 LS1030 5PK
48 *PAN HD SCREW M4X18 10PK
49 STRAIN RELIEF 110V KP0810C/
50 HANDLE COVER COMP 4101RH
51 CORD GUARD HP1641/BO5031/HP163
52 POWER SUPPLY CORD UNIT 4101RH
52 POWER SUPPLY CORD UNIT
53 \'DUST COVER 4101RH
54 DA SWITCH SGE215C
55 CARBON BRUSH CB-303 MT582 фото аналога
56 HOLDER CAP 4101RH
57 NOISE SUPPRESSOR HP1641/LC1230
58 WING BOLT M6 X 10 4101RH
59 *M6 SPRING RING DIN128 10PK
60 *SQ NECK SETSCREW M6X20 5PK
61 \'SPRING PIN 6-32 500/4101RH
62 *FLAT WASHER 6 DIN125-B 10PK
