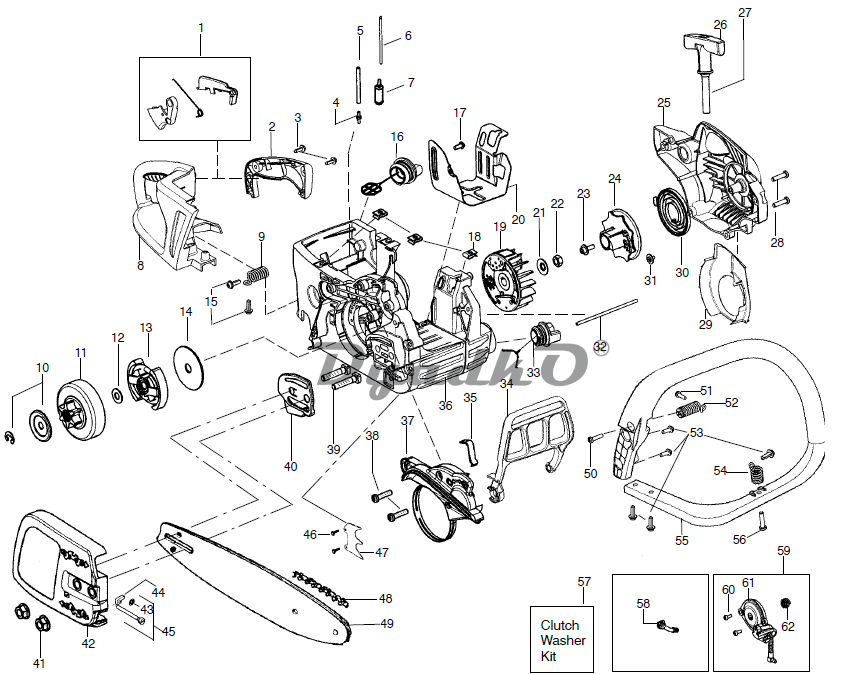

Схема PARTNER P738 Пила

1.	Kit-Trigger/Lockout
2.	Cover-Handle
3.	Screw
4.	Fitting-Fuel line
5.	Kit-Fuel Line (Large)
6.	Kit-Fuel Line (Small)
7.	Assy-Fuel Pick Up
8.	Handle-Rear
9.	Spring-Rear Isolator
10.	Kit-Clutch Washer
11.	Assy-Clutch Drum 3/8”
12.	Kit-Clutch Washer
13.	Assy-Clutch
14.	Washer-Large Clutch
15.	Screw
16.	Assy-Fuel Cap w/ret
17.	Screw
18.	Nut-”U” type speed
19.	Assy-Flywheel
20.	Shield-Heat
21.	Washer- Flywheel
22.	Nut-Flywheel
23.	Screw-Shoulder
24.	Pulley
25.	Housing-Fan
26.	Handle-Starter
27.	Kit-Rope
28.	Screw
29.	Baffle
30.	Spring-Starter
31.	Screw
32.	Assy-Oil Vent
33.	Assy-Oil Cap w/ret.
34.	Handguard
35.	Spring - Handguard
36.	Assy-Chassis (Incl. 4,5,6,7,9,15,16,17,18, 20,32,33,35,39,54,)
37.	Kit-Chainbrake
38.	Screw
39.	Bolt-Bar
40.	Plate-Bar
41.	Nut-Bar
42.	Assy-Clutch Cover (Incl. 45)
43.	Retainer-Screw
44.	Pin-Adjustment
45.	Kit-Bar Adjustment (incl. 43,44)
46.	Screw
47.	Kit-Spike (incl. 46)
48.	Chain 14”
48.	Chain 16\"
49.	Bar 14”
49.	Bar 16”
50.	Screw
51.	Screw
52.	Assy-Rear Iso. Spring
53.	Screw
54.	Assy-Front Iso. Spring
55.	Handle-Front
56.	Screw
57.	Kit-Clutch Washer (Incl. 10,12)
58.	Assy-Oil Pick Up
59.	Kit-Oil Pump (Incl. 60,61,62)
60.	Screw
61.	Assy-Oil Pump
62.	Gear-Worm
