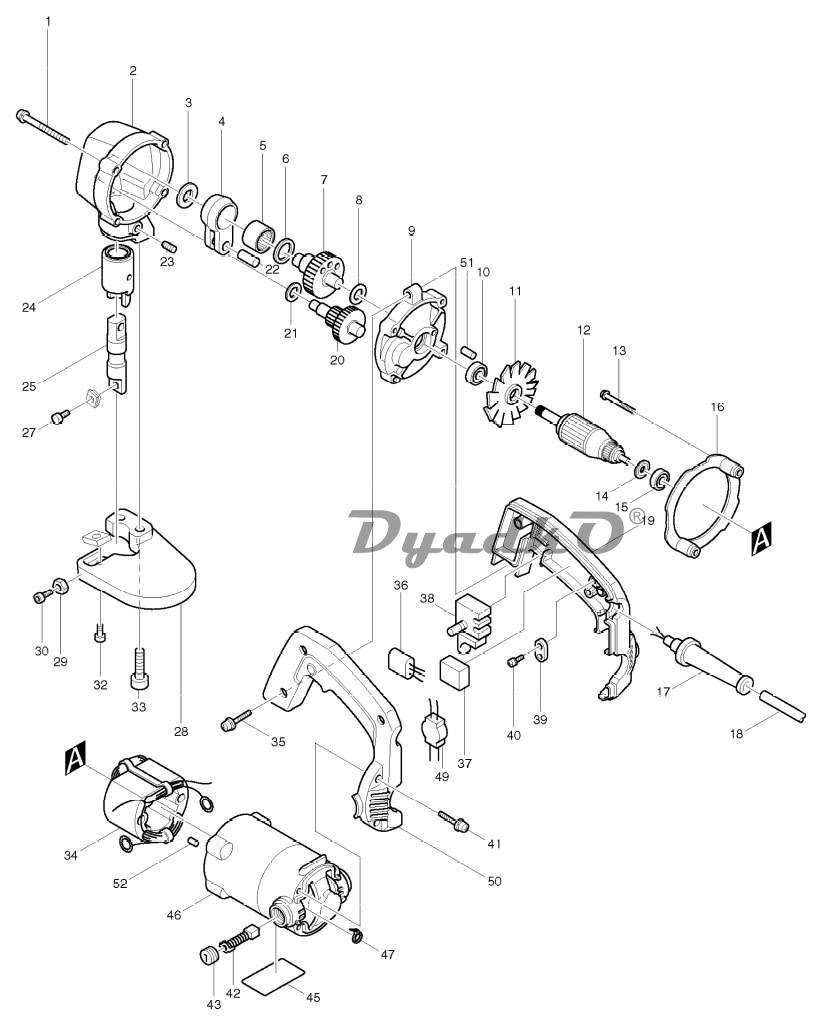

Схема MAKITA JS 3200

1	PAN HEAD SCREW M5X45
2	GEAR HOUSING COMPLETE
3	FLAT WASHER 12
4	ROD
5	NEEDLE BEARING 1816
6	FLAT WASHER 18
7	CRANK SHAFT COMPLETE
8	FLAT WASHER 10
9	GEAR HOUSING COVER INC. 51
10	BALL BEARING 608LB
11	FAN 70
12	ARMATURE ASS\\\'Y 220V INC. 10,11,14,15
13	PAN HEAD SCREW M5X60
14	INSULATION WASHER
15	BALL BEARING 608LB
16	BAFFLE PLATE
17	CORD GUARD 9.3-85
18	POWER SUPPLY CORD 1.0-2-2.5
19	HANDLE SET INC. 50
20	GEAR COMPLETE 18-46
21	FLAT WASHER 8
22	PIN 8
23	SET SCREW M6X14
24	METAL
25	BLADE HOLDER
27	HEX. SOCKET HEAD BOLT M5X14
28	YOKE
29	HEX. NUT M5
30	HEX. SOCKET HEAD BOLT M5X20
32	HEX. SOCKET HEAD BOLT M5X14
33	HEX. SOCKET HEAD BOLT M8X30
34	FIELD ASS\\\'Y 220V
35	PAN HEAD SCREW M5X25
36	NOISE SUPPRESSOR
37	SPONGE SHEET
38	SWITCH SGEL215C
39	STRAIN RELIEF
40	PAN HEAD SCREW M4X18
41	PAN HEAD SCREW M5X25
42	CARBON BRUSH CB-100
43	BRUSH HOLDER CAP 6-10
45	NAME PLATE JS3200
46	MOTOR HOUSING INC. 52
47	BAND
50	HANDLE SET INC. 19
51	RUBBER PIN 4
52	RUBBER PIN 4
400	SHEAR BLADES SET
402	THICKNESS GAUGE
900	STEEL CARRYING CASE
903	MAKITA LABEL
