350990 (358.350990)

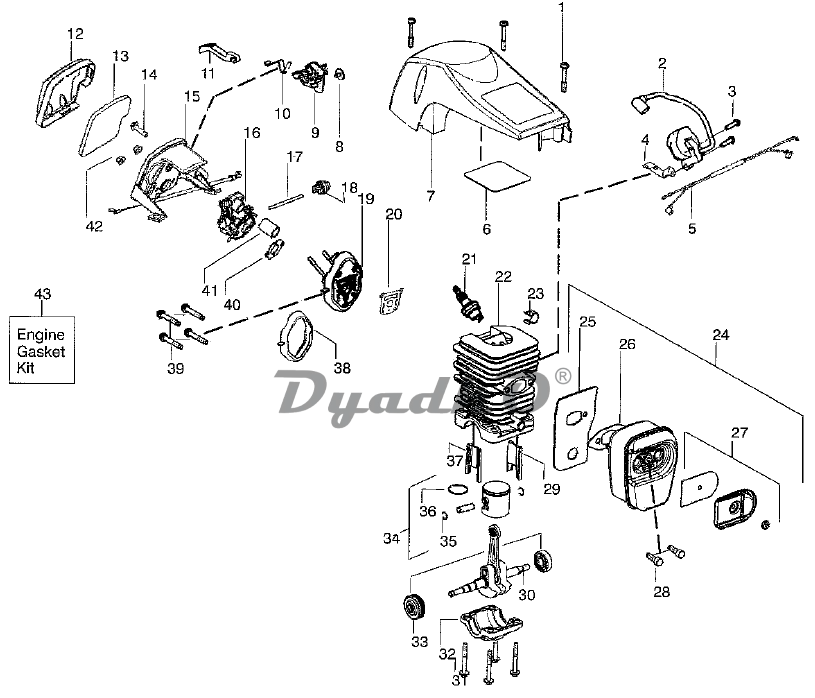

Схема CRAFTSMAN 350990 (358.350990) Двигатель
1
Screw
2
Kit- Module/Flywheel
3
Screw
4
Strap-Ground
5
Assy-Wire Harness
6
Reflector-Tape
7
Shield-Cyl. (Incl. 1,6)
8
Screw
9
Lever—Ignition Switch
10
Spring-Ignition Switch.
11
Knob-Choke
12
Cover- Air Filter
13
Filter^-Air
14
Screw
15
Housing-Air Filter w/cable
16
Carburetor - Zama W26B (Incl. 18)
17
Kit-Fuel Line (Small) .
18
Bulb-Purge “snap-in\"
19
KH-Carb. Adapter . (Incl. 20,38,41)
20
Gasket!-Cyl. (kit)
21
Accy-Spark.Plug(RCJ-7Y)
22
Kit-Cylinder (Incl. 29,37)
23
Clip-High Tension Lead
24
Kit-Muffler(lncl. 25,26,27,28)
25
Backplate- Muffler
26
Gasket-Muffler (kit)
27
Kit-Spark Arrestor
28
Bolt-Muffler
29
Insert-Left (black) Cyl.
30
Assy- Crankshaft/Rod
31
Bolt
32
Cap-Crankcase
33
Assy-Bearing/Seial
34
Kit- Piston (Incl. 35,36)
35
Retainer-Piston pin
36
Ring-Piston
37
Insert-Right (gray) Cyl.
38
Seal-Adaptor (kit)
39
Screw
40
Gasket-Carb. (kit)
41
Tube-Intake
42
Nut-Carb.
43
Kit-Gasket (Ind. 20,26,38,40)
Не показано:
_
Manual
_
Decal-Warning
_
Assy-Carrying Case
_
Scabbard-Carrying Case
