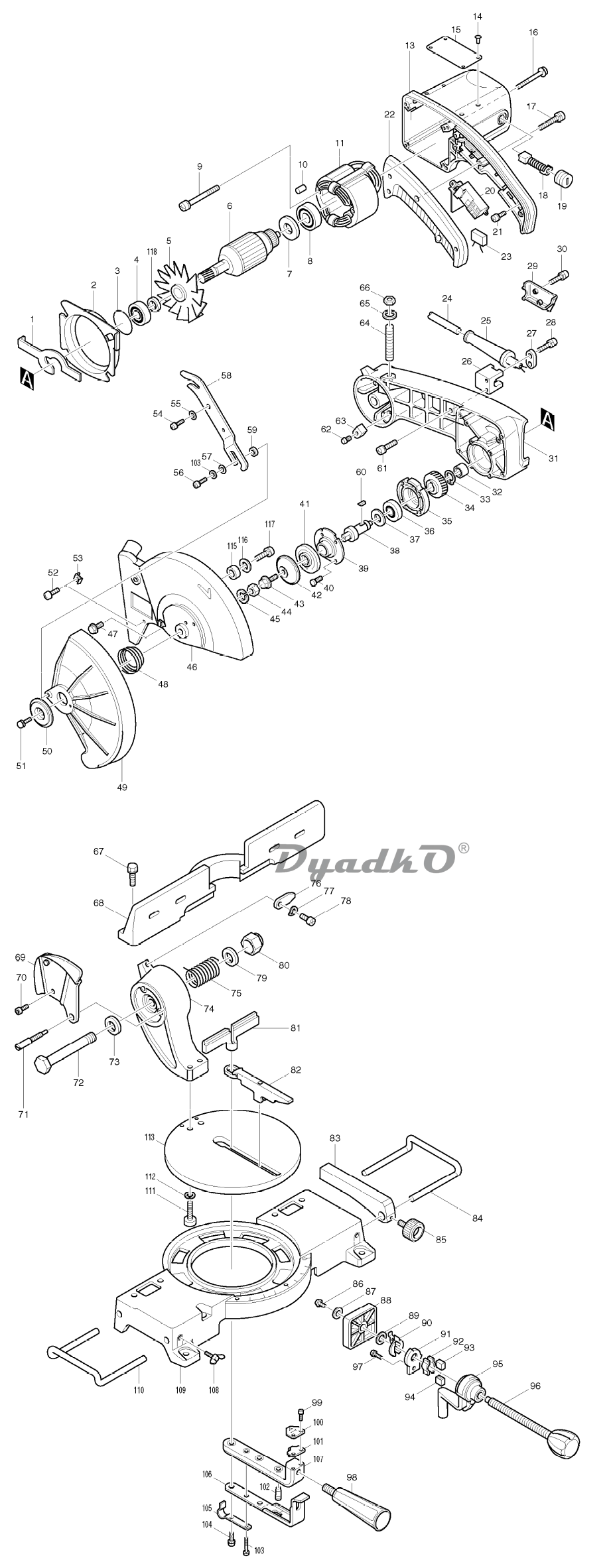

Схема MAKITA LS 1440 LS 1440

1 SHAFT LOCK
2 BAFFLE PLATE
3 O RING 32
4 BALL BEARING 6002LLB
5 FAN 92
6 ARMATURE ASS\'Y 220V INC. 5,7,8
7 INSULATION WASHER
8 BALL BEARING 6200LB
9 PAN HEAD SCREW M5X65
10 RUBBER PIN 4
11 FIELD ASS\'Y 220V
13 MOTOR HOUSING COMPLETE INC. 10
13* Корпус двигателя (без накладки)
14 RIVET 0-5
15 NAME PLATE LS1440
16 #ИМЯ?
17 PAN HEAD SCREW M4X30
18 CARBON BRUSH CB-153
19 BRUSH HOLDER CAP 6.5-13.5
20 SWITCH SGE220RD-1
21 PAN HEAD SCREW M4X6
22 HANDLE COVER
23 NOISE SUPPRESSOR
24 POWER SUPPLY CORD 1.0-2-2.5
25 CORD GUARD 8-90
26 CLAMP BASE COMPLETE
27 STRAIN RELIEF
28 PAN HEAD SCREW M4X18
29 CLAMP COVER
30 PAN HEAD SCREW M4X16
31 GEAR HOUSING COMPLETE
32 NEEDLE BEARING 1212
33 RETAINING RING S-20
34 HELICAL GEAR 41
35 BEARING BOX
36 BALL BEARING 6204LLB
37 THIN WASHER 20
38 SPINDLE
39 BEARING RETAINER 72
40 COUNTERSUNK HEAD SCREW M5X20
41 INNER FLANGE 90
42 OUTER FLANGE 90
43 HEX. FLANGE HEAD BOLT M8X20
44 HEX. NUT M6
45 SPRING WASHER 6
46 BLADE CASE COMPLETE
47 HEX. FLANGE HEAD BOLT M8X12
48 SPRING 30
49 SAFETY COVER
50 CENTER PLATE
51 CAP SQUARE NECK BOLT M6X12
52 PAN HEAD SCREW M5X10
53 BLADE STOPPER
54 #ИМЯ?
55 FLAT WASHER 10
56 #ИМЯ?
57 RING 10
58 GUIDE ARM
59 FLAT WASHER 8
60 KEY 4
61 PAN HEAD SCREW M4X14
62 #ИМЯ?
63 CUSHION
64 -SCREW (FLAT POINT)M10X80
65 FLAT WASHER 10
66 HEX. NUT M10
67 HEX. BOLT M10X30
68 GUIDE RULE
69 SUPPORTER
70 HEX. SOCKET HEAD BOLT M6X20
71 SET SCREW M10
72 HEX. BOLT M16
73 FLAT WASHER 16
74 ARM COMPLETE
75 TORSION SPRING 33
76 HANDLE LATCH
77 WAVE WASHER 8
78 #ИМЯ?
79 FLAT WASHER 16
80 HEX. NUT M16-24
81 FENCE PLATE
82 KERF BOARD
83 SET PLATE
84 HOLDER
85 SCREW M6X13
86 PAN HEAD SCREW M6X14
87 FLAT WASHER 6
88 VISE PLATE
89 FLAT WASHER 12
90 NUT HOLDER
91 SET PLATE
92 PROTECTER
93 RELEASE NUT R
94 RELEASE NUT L
95 VISE ARM COMPLETE
96 KNOB 45
97 PAN HEAD SCREW M5X14
98 GRIP 37
99 PAN HEAD SCREW M4X8
100 INDICATION LABEL
101 PLATE
102 LATCH PIN
103 PAN HEAD SCREW M5X35
104 HEX. BOLT M8X35
105 LEAF SPRING
106 LATCH SPRING
107 TURNING STAY
108 PAN HEAD SCREW M5X16
109 BASE COMPLETE
110 HOLDER
111 HEX. SOCKET HEAD BOLT M10X40
112 SPRING WASHER 10
113 TURN BASE
114 FLAT WASHER 10
115 RUBBER RING 12
116 FLAT WASHER 6
117 PAN HEAD SCREW M5X14
118 WASHER 15
400 SOCKET WRENCH 13
402 DUST BAG ASS\'Y INC. 403
403 FASTENER
500 VISE ASS\'Y INC. 86-97
900 TUBE HOLDER
901 PAN HEAD SCREW M4X8
908 LOCK LEVER
909 COMPRESSION SPRING 9
910 LOCK PLATE
911 #ИМЯ?
912 CHOKE COIL
913 PROTECTOR R
914 PROTECTOR L
915 GUARD
916 SAFETY COVER
917 TAPPING SCREW 4X14
918 TAPPING SCREW 4X14
919 PAN HEAD SCREW M4X8
920 H.S.SET SCREW(FLAT POINT)M6X8
921 SCREW M5X20
922 VISE ASS\'Y
