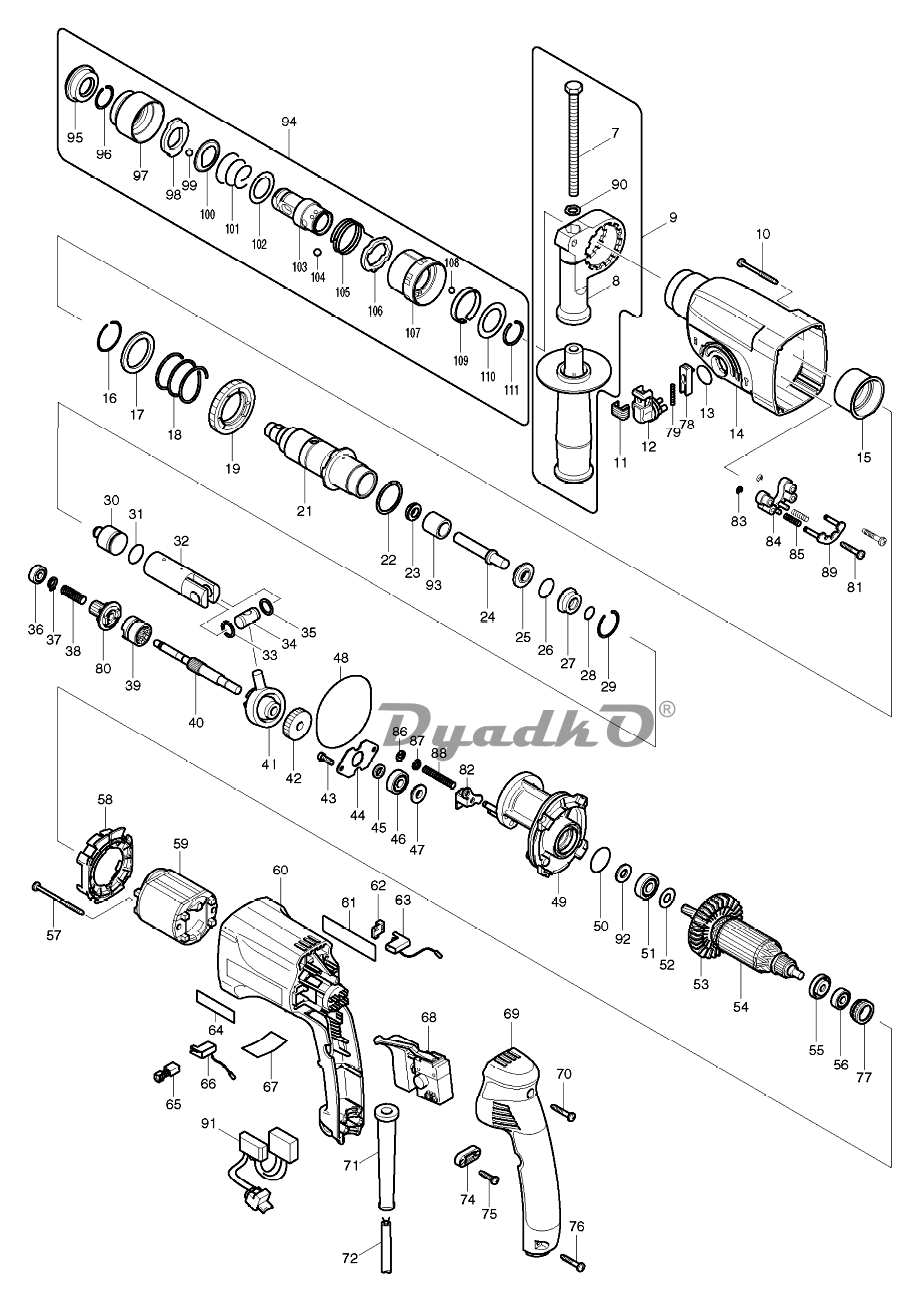

Схема MAKITA HR 2450 FT

7 HEX. BOLT M8X120
8 GRIP BASE
9 GRIP 36 ASS\\\'Y INC. 7,8,90
10 TAPPING SCREW 4X45
11 CAP
12 CHANGE LEVER COMPLETE
13 O RING 17
14 GEAR HOUSING SET INC. 15
15 NEEDLE BEARING COMPLETE
16 RING SPRING 29
17 WASHER 31
18 COMPRESSION SPRING 32
19 SPUR GEAR 51
21 TOOL HOLDER GUIDE COMPLETE
22 FLAT WASHER 28
23 X RING 9
24 IMPACT BOLT
25 RING 10
26 O RING 15
27 O RING CASE
28 O RING 9
29 RING SPRING 28
30 STRIKER
31 O RING 16
32 PISTON CYLINDER
33 FLAT WASHER 12
34 PISTON JOINT
35 FLAT WASHER 12
36 BALL BEARING 606ZZ
37 RETAINING RING S-7
38 COMPRESSION SPRING 7
39 CLUTCH CAM
40 CAM SHAFT
41 SWASH BEARING 10
42 HELICAL GEAR 26
43 HEX. SOCKET HEAD BOLT M4X12
44 BEARING RETAINER
45 FLAT WASHER 8
46 BALL BEARING 608ZZ
47 RING 8
48 O RING 68
49 INNER HOUSING COMPLETE
50 O RING 24
51 BALL BEARING 609LLU
52 FLAT WASHER 9
53 FAN 60
54 ARMATURE ASS\\\'Y 220-240V INC. 51-53,55,56
55 INSULATION WASHER
56 BALL BEARING 607LLB
57 TAPPING SCREW 4X60
58 BAFFLE PLATE
59 FIELD 220-240V
60 MOTOR HOUSING
61 NAME PLATE HR2450FT
62 SPACER
63 BRUSH HOLDER
64 MAKITA LABEL
65 CARBON BRUSH CB-419
66 BRUSH HOLDER
67 HR2450FT SERIAL NUMBER LABEL
68 SWITCH TG813TLB-1
69 HANDLE COVER COMPLETE
70 TAPPING SCREW 4X25
71 CORD GUARD 10
72 POWER SUPPLY CORD 1.0-2-4.0
74 STRAIN RELIEF
75 TAPPING SCREW 4X18
76 TAPPING SCREW 4X25
77 RUBBER RING 19
78 LOCK BUTTON
79 COMPRESSION SPRING 3
80 SPUR GEAR 10
81 TAPPING SCREW 4X25
82 CHANGE PLATE
83 STOP RING E-3
84 GUIDE BASE
85 COMPRESSION SPRING 4
86 STOP RING E-4
87 FLAT WASHER 5
88 COMPRESSION SPRING 6
89 LOCK PLATE COMPLETE
90 HEX. WASHER
91 LIGHT CIRCUIT
92 FLAT WASHER 9
93 SLEEVE 9
94 TOOL HOLDER SET INC. 95-111
95 CAP 35
96 RING SPRING 19
97 CHUCK COVER
98 STOPPER
99 STEEL BALL 7.0
100 GUIDE WASHER
101 CONICAL COMP. SPRING 21-29
102 FLAT WASHER 21
103 TOOL HOLDER
104 STEEL BALL 6
105 TORSION SPRING 31
106 CHANGE RING
107 CHANGE COVER
108 STEEL BALL 5.0
109 LEAF SPRING
110 FLAT WASHER 24
111 RING SPRING 21
A01 DEPTH GAUGE
A02 PLASTIC CARRYING CASE
A03 DRILL CHUCK SET
