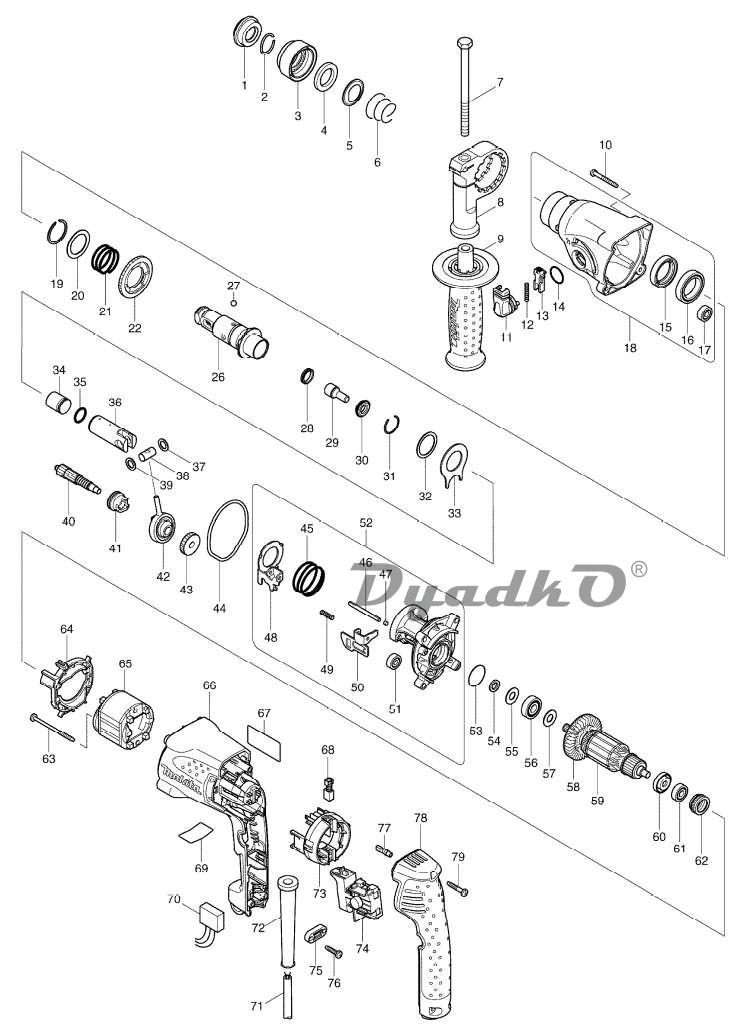

Схема MAKITA HR 1830

1 CAP 35
2 RING SPRING 19
3 CHUCK COVER
4 RING 21
5 GUIDE WASHER
6 CONICAL COMP. SPRING 21-29
7 HEX. BOLT M8X120
8 GRIP BASE
9 GRIP 36 COMPLETE
10 TAPPING SCREW 4X35
11 CHANGE LEVER COMPLETE
12 COMPRESSION SPRING 3
13 LOCK BUTTON
14 O RING 17
15 OIL SEAL 25
16 BALL BEARING 6805LLB
17 BALL BEARING 606ZZ
18 GEAR HOUSING COMPLETE INC. 15-17
19 RETAINING(EXT) WR-25
20 FLAT WASHER 25
21 COMPRESSION SPRING 25
22 SPUR GEAR 46
26 TOOL HOLDER COMPLETE
27 STEEL BALL 7.0
28 X RING 13
29 IMPACT BOLT
30 RING 11
31 RING SPRING 22
32 FLAT WASHER 24
33 JOINT PLATE
34 STRIKER
35 O RING 14
36 PISTON CYLINDER
37 FLAT WASHER 9
38 PISTON JOINT
39 FLAT WASHER 9
40 SPUR GEAR 10
41 CLUTCH CAM
42 SWASH BEARING 9
43 HELICAL GEAR 23
44 SEAL RING
45 COMPRESSION SPRING 32
46 PIN 4
47 FELT 4X3
48 CHANGE PLATE
49 COMPRESSION SPRING 3
50 STOPPER PLATE
51 BALL BEARING 606ZZ
52 INNER HOUSING COMPLETE INC. 45-51
53 O RING 24
54 FLAT WASHER 9
55 FLAT WASHER 9
56 BALL BEARING 609LLU
57 FLAT WASHER 9
58 FAN 52
59 ARMATURE ASS\\\'Y 240V INC. 56-58,60,61
60 INSULATION WASHER
61 BALL BEARING 607DDW
62 LABYRINTH RUBBER RING 19
63 TAPPING SCREW 4X50
64 BAFFLE PLATE
65 FIELD 220-240V
66 MOTOR HOUSING
67 HR1830 NAME PLATE
68 CARBON BRUSH CB-419
69 HR1830 SERIAL NO.LABEL
70 NOISE SUPPRESSOR
71 POWER SUPPLY CORD 1.0-2-4.0
72 CORD GUARD 10
73 BRUSH HOLDER UNIT
74 SWITCH TG843TB-2
75 STRAIN RELIEF
76 TAPPING SCREW 4X18
77 RECEPTACLE SLEEVE
78 HANDLE COVER
79 TAPPING SCREW 4X25
80 CLEAR LABEL
81 CLEAR LABEL
A01 DEPTH GAUGE
A02 HR1830 MODEL NO. LABEL
A03 PLASTIC CARRYING CASE
